Engage your classroom with 30W of sound using this set of active speakers.

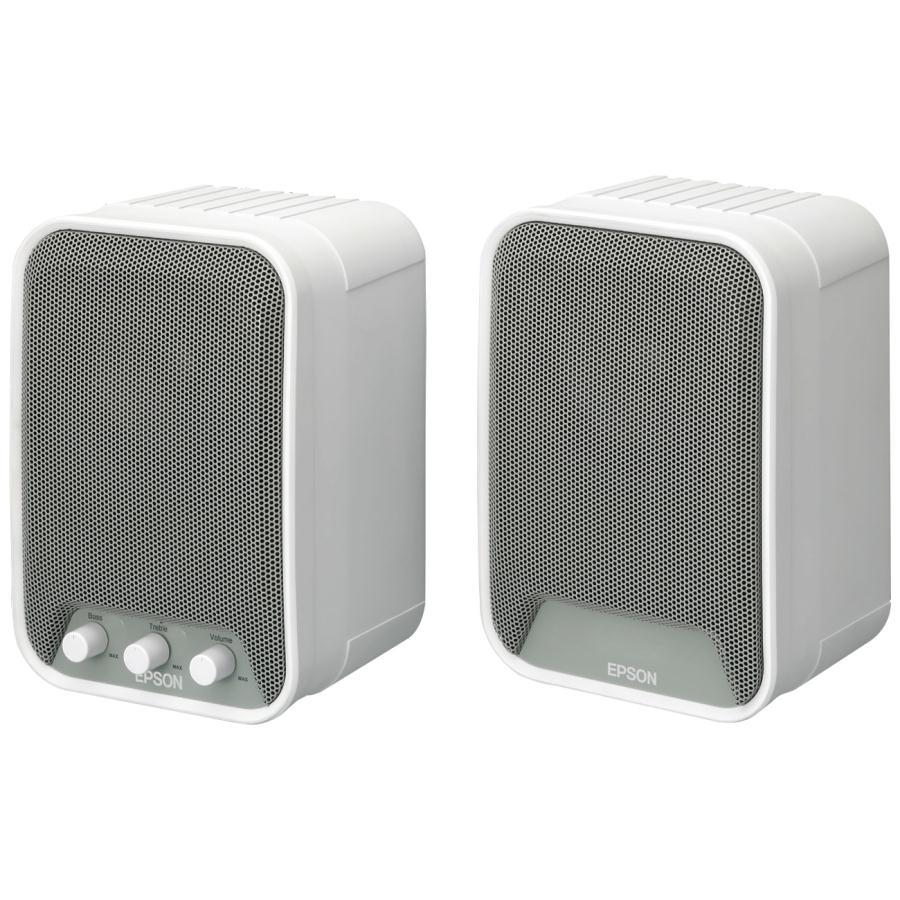

The ELPSP02 active speakers (with built-in amplifiers) enable all students in the room to clearly hear your lesson, enhancing the learning experience. The ELPSP02 speakers can be easily mounted on the wall and can be used with any Epson projector - with or without the ELPCB02 control box.

Key Features:
• Front controls for Volume, Bass and Treble level
• Left speaker active, Right speaker passive
• Wallbrackets included

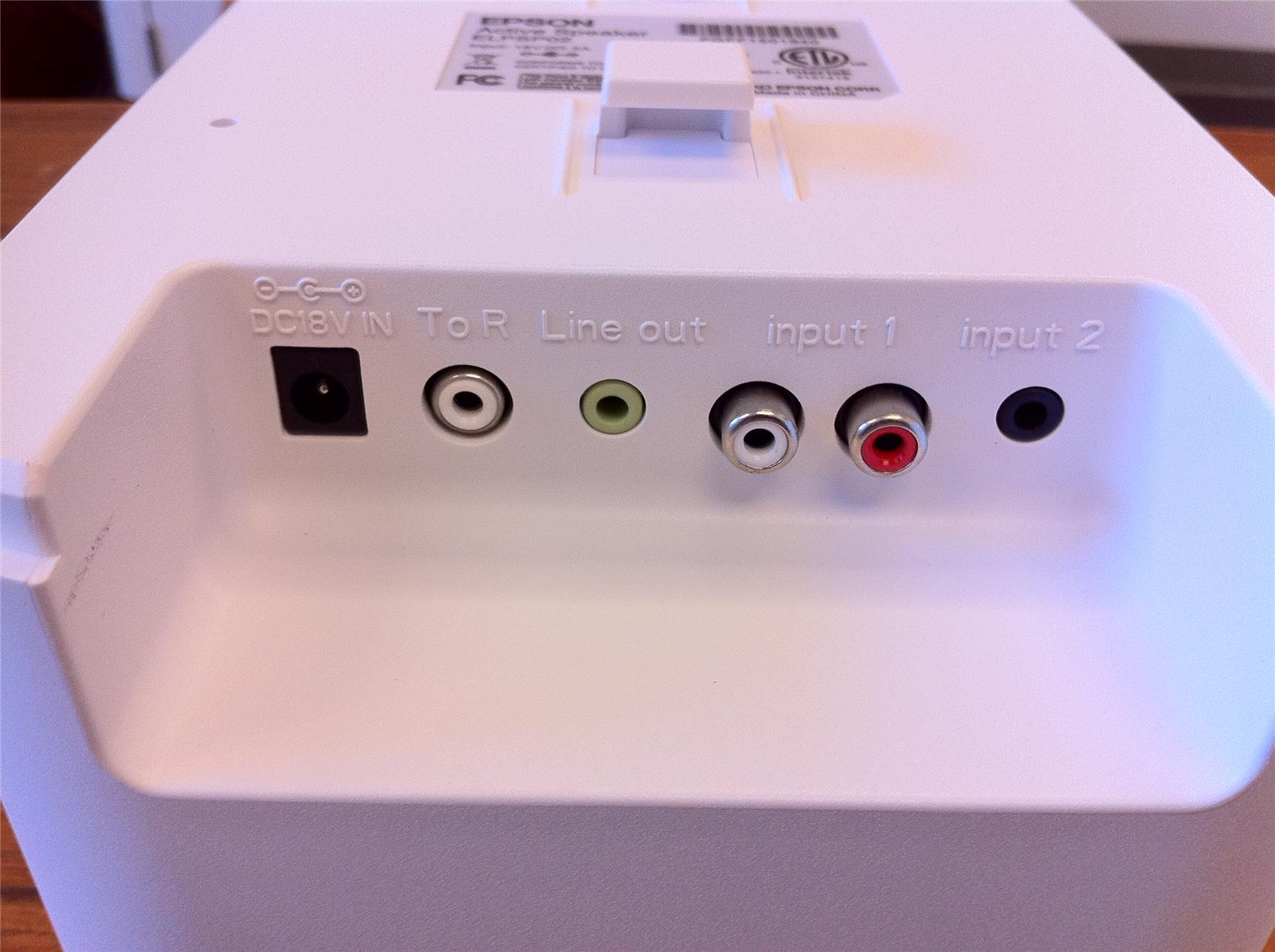

• 3,5mm tele / RCA audio inputs



General

Application
Wall
Active/Passive
Active
Color
Valkoinen

Audio specifications

Impedance
8 Ohm
Frequency range Min
80 Hz
Frequency range Max
20 000 Hz
Power handeling
15 W x2
Amplifier power
15 W x2
70/100V mode
Ei

Connections

Audio inputs
3,5mm tele
Audio inputs
RCA Stereo pair
Audio outputs
RCA To passive speaker
Ethernet
Ei
Bluetooth
Ei
WiFi
Ei

Energy

Power Supply
100V - 240V AC, 50/60Hz External Power Supply

Mitat ja Paino

Width
155 mm
Depth
142 mm
Height
231 mm
Net weight
2,1 kg 1,9kg (passive speaker)

Additional information

Outdoor use
Ei
Included Accessories
Active Speaker (incl.amplifier), Bracket for wall mount, External AC power adapter with power cord, Passive Speaker, Speaker Cable 3m, User guide, Warranty card
Amount in delivery
1 Pair

Paketin tiedot

Paketin mitat
350 x 200 x 300 mm
Paketin paino
5,02 kg

Paketin tiedot kpl

Paketin mitat
420 x 370 x 330 mm
Paketin paino
10,00 kg
