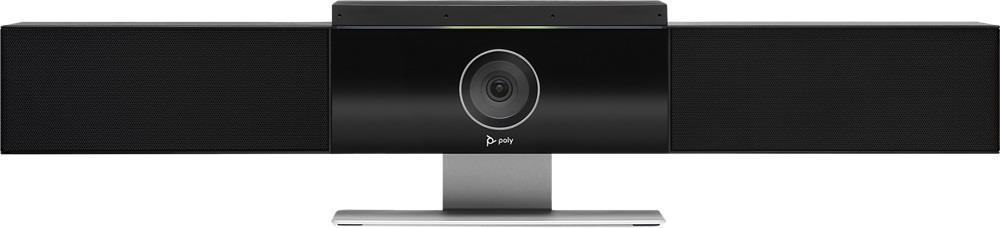

Meet Poly Studio, the premium USB video bar built for small rooms and big ideas. Delivering the best audio quality in its class, it blocks distracting sounds that can interrupt meetings. Teams on both ends of the call catch every word. With group framing and automatic speaker tracking, the connection feels personal. They see all the important details, too-right down to body language and facial expressions. Easy to manage? Of course. The cloud-based management tools let IT push software
updates and make settings changes without ever leaving their desk. Poly Studio.
The shortcut to better huddle room collaboration.

Key Features:
• Acoustic Fence keeps voices outside the room from interrupting your calls
• Up to 3.7m microphone pickup range
• Smart-camera experiences are built in-no drivers or software needed
• Centralized management enables high-scale deployments
• Works with nearly any video platform

Benefits:
• You’ve never heard a USB video bar sound this good-Poly Studio has the absolute best audio quality and voice clarity in its class
• Distracting sounds are eliminated by our patented NoiseBlock technology-and this is the only
USB video bar that does it
• Be more productive on both ends of your video conference with a smart camera that automatically frames the room or tracks the person speaking for deeper engagement
• Eliminate “sneakernet” with centralized management, enabling high-scale deployments without added burden on IT.



General

Camera type
Video soundbar
Color
Musta
Certifications
Google Meet, Microsoft Teams, Zoom

Image specification

Max Resolution (Out)
3840x2160 (Requires USB 3.0 cable)
Framerate
30 FPS
Optical zoom
0 x
Digital zoom
5 x
Field of view (horizontal)
120 °

Functions

Programmable presets
Kyllä 2x digital EPTZ presets, via remote
Ceiling installation/Flip image
Kyllä
Auto framing/tracking
Kyllä Poly DirectorAI including group framing, speaker framing, presenter tracking, and conversation mode

Audio specification

Built-in microphone
Kyllä 6x beamforming microphones
External microphone
Kyllä 1x Poly Studio Expansion Microphone can be connected (optional)
Audio pickup range
4,6 m
Built-in speaker
Kyllä Stereo speaker with 100 to 20.000 Hz frequency response, Max SPL 90 dB @ 0.5m
External speaker
Ei

Connections

Video out
USB-C
USB standard
2.0
USB standard
3.0 Requires USB 3.0 compatible cable (optional)
Audio inputs
3,5mm tele, External microphone input

Energy

Power Supply
12VDC/5A @ 100~240VAC, 50/60 Hz external power supply

Mitat ja Paino

Width
700 mm
Depth
70 mm
Height
105 mm
Net weight
2,34 kg

Additional information

Included Accessories

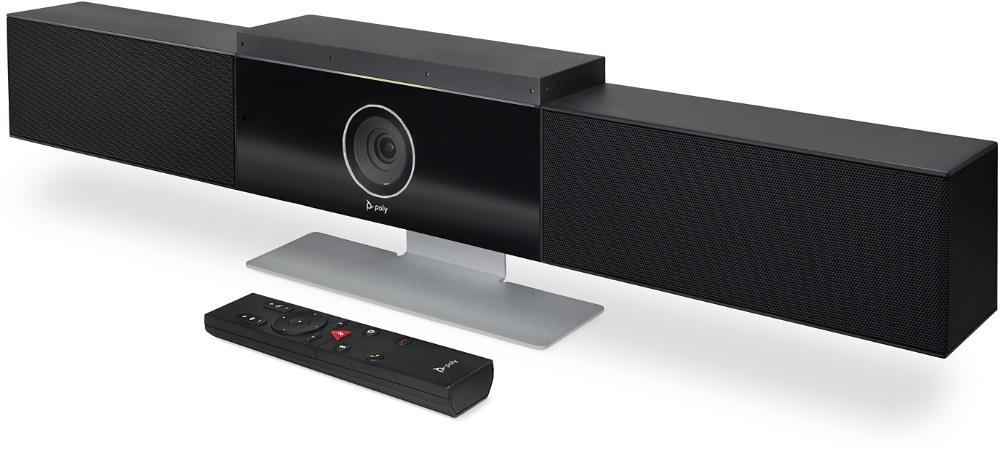

IR Remote control with 2x AAA batteries, Power adapter, USB-C to A 2.0 cable (5m), Table stand, Wall mount kit, Setup sheet
Warranty
1 vuotta 1-year return to factory parts and labor, Warranty Extension available as option

Paketin tiedot

Paketin mitat
136 x 215 x 790 mm
Paketin paino
4,80 kg
