Finnaly, an intelligently designed camera for smarter hybrid meetings

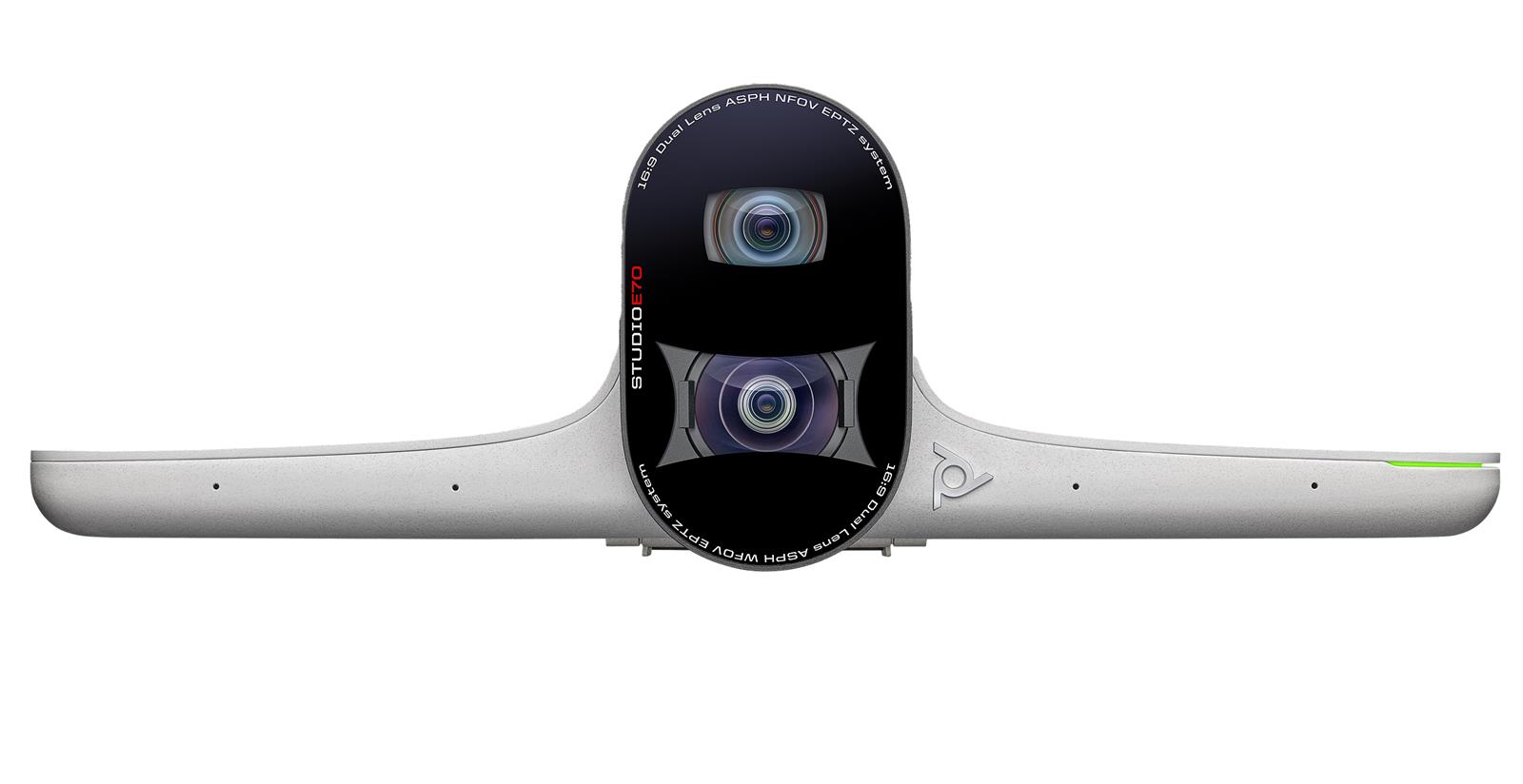

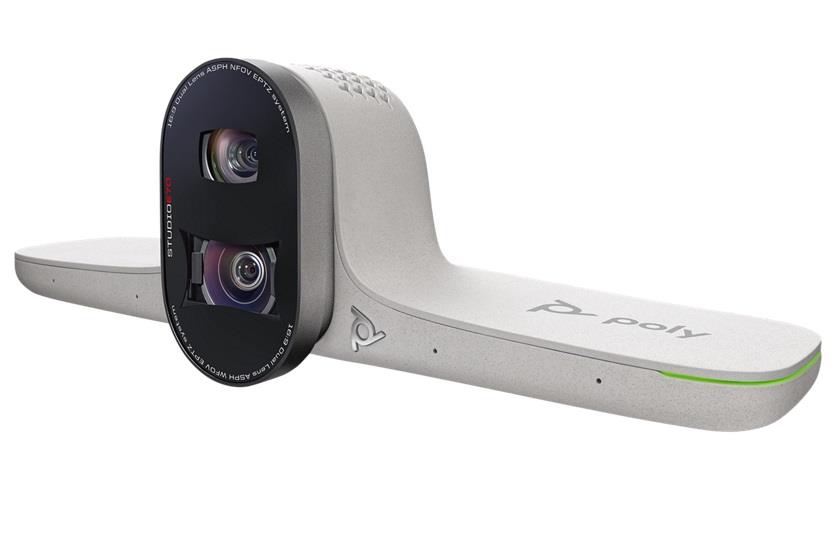

The Poly Studio E70 is a first-of-its-kind intelligent camera that super-charges meeting rooms with mind-blowing video quality, state-of-the-art audio features, and next-level analytics. Dual lenses with 20-megapixel 4K sensors are boosted by Poly DirectorAI technology to create a completely unrivaled video experience – perfect for hybrid working environments.

Key Features:

  • Dual lenses with 20 megapixel 4K sensors
  • AI-driven camera array
  • Motorized, integrated electronic privacy shutter
  • Includes Poly Lens management software
  • Connects to Poly G7500 and Poly Microsoft Teams Room

Compability:

  • Poly G7500
  • Poly Microsoft Teams Room on Windows
  • Support for standard USB audio and video drivers coming in a future release

Lifelike definition with dual lenses and 20 Megapixel 4K sensors
The Poly Studio E70 provides large meeting rooms with the ability to transition undetected between a wide angle and narrow lens. Everyone in the room is seen in sharp detail.

Pinpoint-accurate speaker tracking and professional-quality group framing from Poly DirectorAI
Poly DirectorAI technology creates an unparalleled video experience. It's like having a director in the room with you to make sure everyone is seen clearly, perfect for hybrid meetings.

Motorized, integrated electronic shutter provides split-second privacy
We thought of everything when we designed this one – including enhanced security with a motorized, integrated electronic privacy shutter.



General

Camera type
Fixed Optic (EPTZ) Roomcamera
Color
Valkoinen
Certifications
Microsoft Teams

Image specification

Max Resolution (Out)
3840x2160 Capture resolution with 20 Megapixel sensors
Optical zoom
0 x
Digital zoom
10 x
Field of view (horizontal)
120 ° First camera, 70° FOV Second camera

Functions

Programmable presets
Kyllä
Ceiling installation/Flip image
Kyllä
Auto framing/tracking
Kyllä Poly DirectorAI smart camera technology including group framing, people framing (preview feature), and speaker framing

Audio specification

Built-in microphone
Kyllä 4-element beamforming array (only for speaker tracking)
External microphone
Ei
Built-in speaker
Ei
External speaker
Ei

Connections

Video out
IP stream (RJ-45) Can connect to Poly G7500 codec with PoE over IP.
Video out
USB-C
Audio outputs
USB-C

Energy

Power Supply
PoE 37V – 56V at .35A or 12Vdc at 1.2A optional external power supply

Mitat ja Paino

Width
321 mm
Depth
89,1 mm
Height
102 mm
Net weight
0,9 kg

Additional information

Included Accessories
Poly Studio E70, 1,8m USB-C to USB-A cable , 2m Ethernet cable, Wall mount, Table mount, Wall drilling template, Installation hardware, Camera tripod screw
Warranty
1 vuotta One-year return to factory parts and labor. Extended warranties as an option

Paketin tiedot

Paketin mitat
396 x 210 x 147 mm
Paketin paino
2,28 kg
Viivakoodi
197497463941

Tarvikkeet

Artikkelinumero 2386265
Artikkelinumero 2386770
Artikkelinumero 2386771
Artikkelinumero 2386772
Artikkelinumero 2388905
