EXTEND THE USE OF POLY STUDIO ROOM KIT FOR MICROSOFT TEAMS

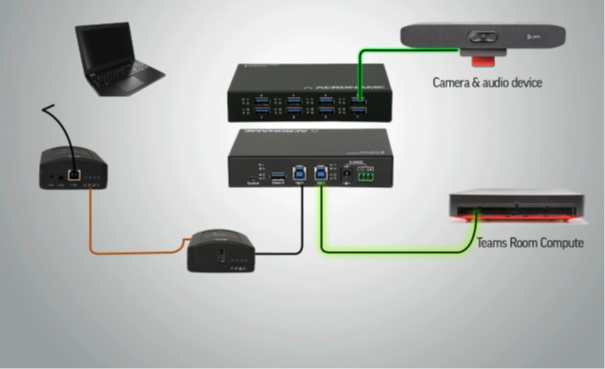

The BYOD kit for Poly Studio Room Kits adds the ability to bring your own device (BYOD) to meetings, connecting your laptop with a single USB to use any video app with the Poly audio and video solutions in the room. The BYOD kit consists of Icron USB 2.0 Ranger 2311 and Acroname USBHub3+.

  • Leverage Teams Room’s camera and audio resource to connect to user’s own laptop for any video app
  • Simple to use: automatically switches A/V resources from the room PC to laptop, and back to room PC, after removing USB
  • Connect GC8 HDMI cable to the laptop to project desktop screen on a room display
  • Alternative to Teams Rooms “Direct Guest Join” feature to connect to Zoom and Cisco WebEX meetings, for full client experience

Acroname USBHub3+

  • USB 3.2 Gen 1 Hub (5Gbps) with 8 ports and 2 upstream host ports
  • Automatically switches USB connection to Up0 Port when a USB connection is detected
  • (Priority Up0 port > Up1 port)
  • Backward compatible with USB 1 and USB 2

Icron USB 2.0 Ranger 2311

  • USB 2.0 USB extender with single port CAT 5e/6/7
  • Support up to 100m / 330 ft
  • Local Extender (LEX) and Remote Extender (REX)
  • Used to extend the USB connection between BYOD host (laptop) and Acroname Up0 port


General

Extender type
Transmitter & reciever kit
Technology
TP/CAT
Range (max)
100 m over CAT 5e/6/7

Features

USB standard
1.1 12Mbps
USB standard
2.0 480Mbps
USB/Data connection from
USB-B
USB/Data connection to
USB-A

Energy

Power Supply
Extenders: 100-240V AC Input, 24V 1A DC Output (Transmitter or Reciever), Hub: 100-240V AC Input, 9-24V DC Output

Additional information

Application
Freestanding/Shelf
Included Accessories
Local Extender (LEX) module, Remote Extender (REX) module, USB Type A-B cable 1,8m, Quick Start Guide, Power supply w. cord, Acroname 8-port USB 3.2 hub, 2 USB 3.0 Type A-B cable 0,9m, Power adapter w. cord
Warranty
1 vuotta
