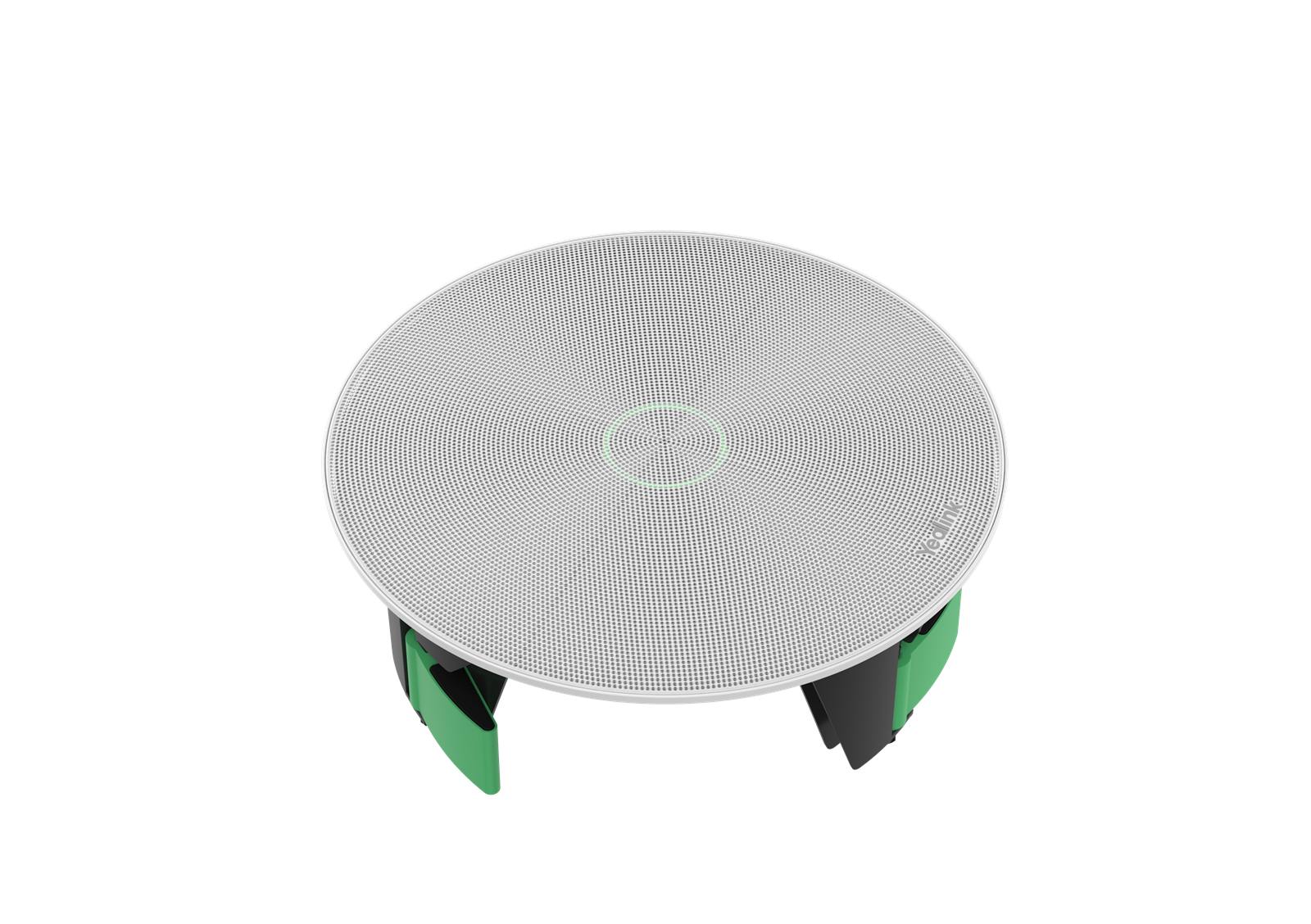

AI-Powered Beamforming Ceiling Microphone CM20
The Yealink CM20 ceiling mic features an 83mm low-profile design. Equipped with 16 omnidirectional units, it delivers unparalleled pro-level audio clarity. With AI Dynamic Noise Reduction and AI Reverberation Suppression, the CM20 automatically adapts to room conditions for effective noise and echo reduction. Integrated with DSP, the CM20 offers plug-and-play functionality with Yealink MVC systems, eliminating the need for an additional DSP device.
Note!
Skysound devices will not be recognized in BYOD mode when used in a Microsoft Teams Room solution (MVC) for now. (Solution is expected with MCV V33 SP1).
It is important that these are connected to a POE+ switch that is completely without EEE or has EEE completely switched off.
For example Yealink RCH40 E2
Read more about EEE Info
Key Features:
Advanced Microphone Array:
SkySound CM20 is equipped with 16 omnidirectional units, providing unparalleled audio clarity across 8 independent pickup zones.Superior Coverage:
Effectively covers up to 60 ㎡ , with a high-quality 30 ㎡ full-duplex audio capture, ideal for medium to large spaces.Intelligent Sound Processing:
Integrates Yealink's advanced noise, echo, and reverberation cancellation technologies for crystal-clear audio in every meeting.Intelligent Tracking:
Features 8 beam outputs for precise speaker tracking and integrates with room cameras for enhanced camera tracking, enriching meeting engagement.Network Compatibility:
Fully supports AES67 protocol, ensuring seamless integration into existing audio networks.Simple and Versatile Deployment:
Features PoE powering for straightforward installation, requiring only a single Ethernet cable for both power and audio.Versatile Ceiling Integration:
Offers various installation options, including in-ceiling, pendant, and on-ceiling, for effortless setup and integration.Elegant and Unobtrusive Design:
Includes a removable magnetic suction mesh cover, adding a touch of sophistication while being discreet and easy to maintain.
Whats included in the box::
CM20
- White Mesh Cover

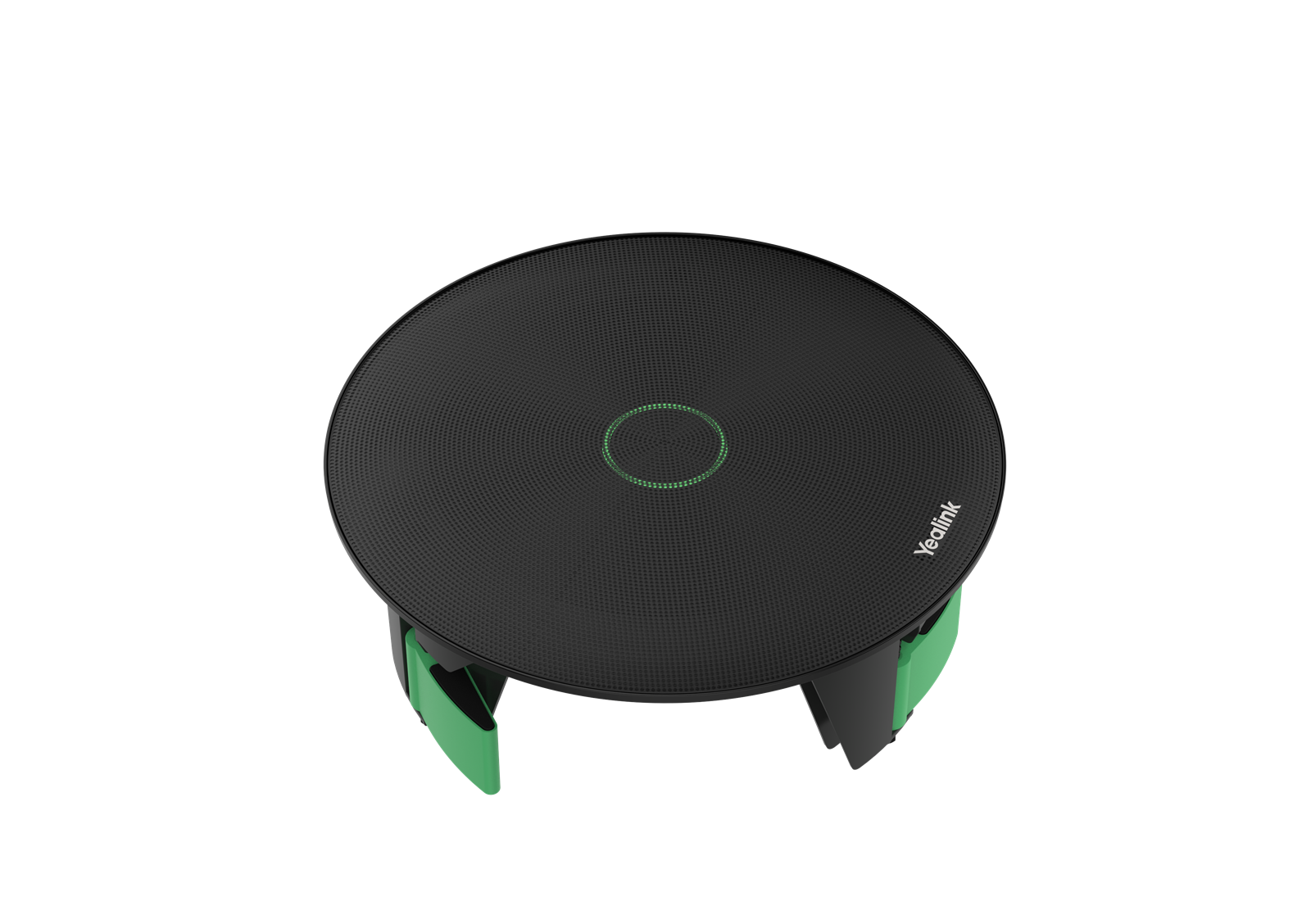

- Black Optional
- Deployment Instruction Template
- Dust Cover
- Quick Start Guide
- Assembly Fixing Bracket
- Bracing Bridge × 1 pair
- Bracing Bridge Screw
- Machine Screw
- Length-Adjustable Pole
General
- Microphone application
- Ceiling
Audio specifications
- Directivity
- Omnidirectional Equipped with 16 omni-direction microphones
- Audio pickup range
- 3 m
- Frequency range Min
- 120 Hz
- Frequency range Max
- 16 000 Hz
- Signal-to-noise ratio
- 94 dB at 1kHz, Weighted
Connections
- Audio outputs
- IP (RJ-45) Signal and PoE+ power
Energy
- Power Supply
- PoE+ 5,7W Continuous, 9W Peak Power
Mitat ja Paino
- Width
- 223 mm
- Depth
- 223 mm
- Height
- 83 mm
- Net weight
- 0,62 kg
Additional information
- Color
- Valkoinen pearl light gray with white mesh cover (Black optional)
- Included Accessories
- SkySound CM20 Microphone, White Mesh Cover (Black Optional), Quick Start Guide, Assembly Fixing Bracket, Dust Cover, Bracing Bridge*1 pair, Expansion Bolt*6 (φ6 * 30 mm, white, Polyamide), Self-tapping Screw*6 (T4*30mm), Machine Screw*5 (3*6PMOZN3+), Bracing Bredge Screw*20 (M3*6PWMHOZN3), Telescopic Ceiling mount
- Warranty
- 2 vuotta
- Amount in delivery
- Single unit
Paketin tiedot
- Paketin mitat
- 417 x 182 x 83 mm
- Paketin paino
- 567 g
