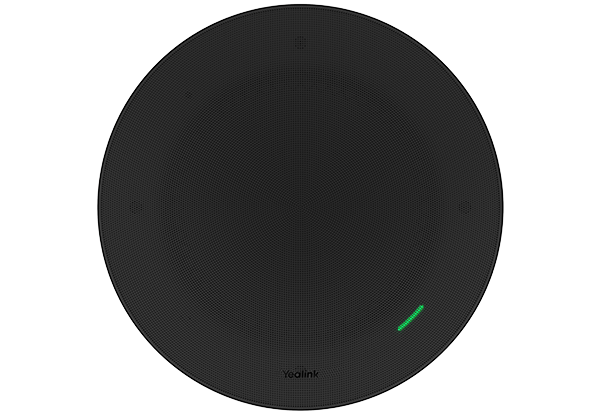

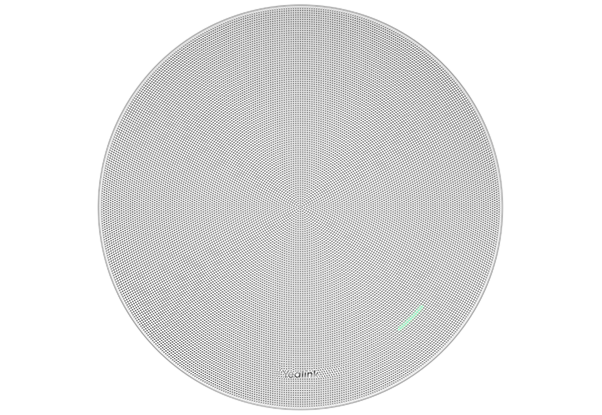

Network Ceiling Loudspeaker CS10
The Yealink CS10 ceiling loudspeaker features a low-profile 2-way coaxial design.With acoustically tuned design for speech clarity, it is ideal for conferences and presentations. The CS10 combines active speaker functionality with an integrated DAC and PoE technology, allowing for a hassle-free setup and minimal latency.
Note!
Skysound devices will not be recognized in BYOD mode when used in a Microsoft Teams Room solution (MVC) for now. (Solution is expected with MCV V33 SP1).
It is important that these are connected to a POE+ switch that is completely without EEE or has EEE completely switched off.
For example Yealink RCH40 E2
Read more about EEE Info
Key Features:
Innovative Coaxial Structure:
Features a 2-way coaxial setup with a robust 5.5” LF Woofer and a crisp 1.1” HF Tweeter for high-fidelity audio delivery.High-Performance Acoustics:
Boasts impressive acoustic parameters, with a sensitivity of 88dB@1W 1m and a maximum SPL of 99dB@20W 1m, ensuring clear, powerful sound.PoE-Enabled Active Speaker:
SkySound CS10 masterfully blends active speaker functionality with integrated DAC and PoE technology, enabling swift digital signal processing from the network for a hassle-free setup and minimal latency, tailored for dynamic professional scenarios.Dante Ready for Advanced Audio Networking:
With an optional Dante module, SkySound CS10 seamlessly integrates into sophisticated audio networks, providing flexible options for complex setups.Extreme Environment Resilience:
Constructed with durable nylon+aluminum alloy, SkySound CS10 reliably withstands extreme temperatures, ranging from -40°C to 50°C.Versatile Deployment:
Offers diverse indoor installation solutions, compatible with various ceiling types and grid systems, ensuring easy adaptation to any interior design.Sophisticated Design:
Features a detachable, paintable magnetic grille in black and white, adding to its sleek, low-profile look that complements any modern interior.
Whats included in the box:
- CS10 Speaker
- White Mesh Cover
- Black Optional
- Quick Start Guide
- Assembly Fixing Bracket
- Dust Cover
- Dust Cover Screw
- Deployment Instruction Template
- Bracing Bridge
General
- Application
- Recessed
- Active/Passive
- Active
- Color
- Valkoinen White Mesh Cover (Black Optional)
Speaker drivers
- Woofer
- 5,7 "
- Tweeter
- 1,1 "
Audio specifications
- Impedance
- 8 Ohm
- Frequency range Min
- 100 Hz
- Frequency range Max
- 20 000 Hz
- Sensitivity (1W/1m)
- 88 dB
- Power handeling
- 20 W Continuous Power. 30W Peak Power
- 70/100V mode
- Ei
- Max SPL
- 99 dB @20W, 1m
Connections
- Audio inputs
- IP (RJ-45) With PoE+ powering
- Ethernet
- Ei
- Bluetooth
- Ei
- WiFi
- Ei
Energy
- Power Supply
- PoE+
Mitat ja Paino
- Width
- 294 mm (with cover mesh）
- Depth
- 294 mm (with cover mesh）
- Height
- 125,8 mm
- Net weight
- 2,81 kg (without co ver mesh)
Additional information
- Outdoor use
- Ei
- Included Accessories
- White Mesh Cover (Black Optional), Quick Star t Guide, Assembly Fixing Bracket, Dust Cover, Deployment Instruction Templete, Screw*6 (M3*4CMHOZN3)
- Warranty
- 2 vuotta
- Amount in delivery
- Single unit
Paketin tiedot
- Paketin mitat
- 400 x 300 x 300 mm
- Paketin paino
- 6,10 kg
