The DE3650-C is a fanless, small and rugglized media player with 2-screen output and 4K@60Hz content playback. It has an Intel® Celeron® CPU and Intel® UHD graphics. The fanless design prevents dust from building up in the device, decreasing maintenance costs.

UHD (4k) content playback
DE3650-C is capable of driving 2x UHD (4k) content. With a resolution that goes up to 3840x2160 pixels, your content will be close to perfect. This feature makes the players that are capable of delivering content that is fluent and stutter-free in UHD (4k).

-20°C operating temperature
AOPEN has good experience in mechanism and electronic design. It has designed a good body temperature control for DE3650-C. The equipment can operate normally even at a low temperature of minus 20°C. It is suitable for industrial or outdoor applications that require low temperatures.

Fanless design
With fanless design, the device is passively cooling and is dustproof. Therefore, it's very suitable for segments such as industry.

Small form factor
This form factor ensures easy integration into kiosks or behind screens. The AOPEN small form factor is a standard that is used for Digital Engine (DE) models. The size of DE3650-C is 166x35x110 mm. the mounting hole of the bracket is just the same as the DE series.

Trusted Platform Module 2.0
The TPM is a dedicated microcontroller, designed to secure hardware through integrated cryptographic keys. This means the data on your hard drive will be encrypted to ensure your data is safe, even when your device gets stolen.

• Intel® Celeron® Quad-Core/Dual-Core Processor
• Intel® UHD Graphics 4K@60Hz
• Fanless and solid-state design

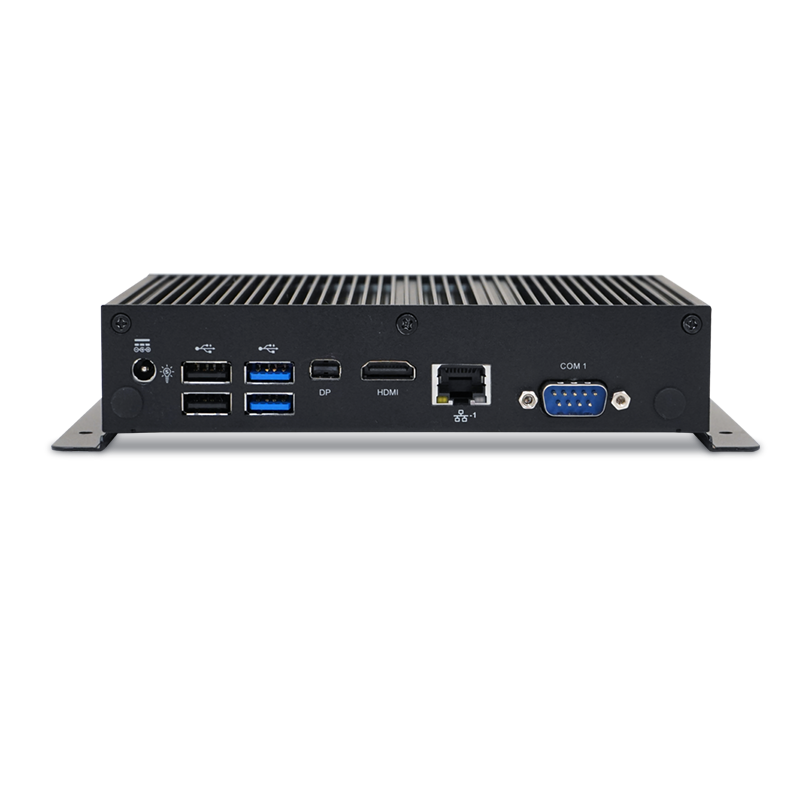

• Rich I/O ports: Legacy Com-Port x1, USB3.1 x2, USB2.0 x4
and RJ45 LAN x 2
• AOPEN smart function for USB keyboard power on/off and
reset
• Supports -20oC (-4oF) operating temperature
• DC input 12 ~ 24V for automotive applications



General

Operating System
No OS

Suoritin

CPU Model
Intel® Celeron® N6210 Dual Core
Number of cores
2 pcs.

Memory

Memory
8 GB 2x 4GB
Memory Type
DDR4 SO-DIMM
Max Memory Supported
20 GB
Memory slots
2 pcs.

Graphics

GPU Model
Intel® UHD Graphic for 10th Gen Processors
Display Connections
2 pcs.

Storage

Storage type
eMMC
Storage size
64 GB

Connections

HDMI
Kyllä x1 HDMI 2.0 (4096x2160@60Hz)
DisplayPort
Kyllä x1 Mini DisplayPort 1.4b (4096x2160@60Hz)
USB type-A
Kyllä x6

Communication

Ethernet
Kyllä 10 / 100 / 1000 Mbps

Energy

Power Supply
AC 100 ~ 240V, 40W Adapter

Mitat ja Paino

Width
166 mm
Depth
110 mm
Height
35 mm
Net weight
0,61 kg

Additional Information

Warranty
2 vuotta

Paketin tiedot

Paketin mitat
280 x 218 x 96 mm
Paketin paino
1,26 kg
