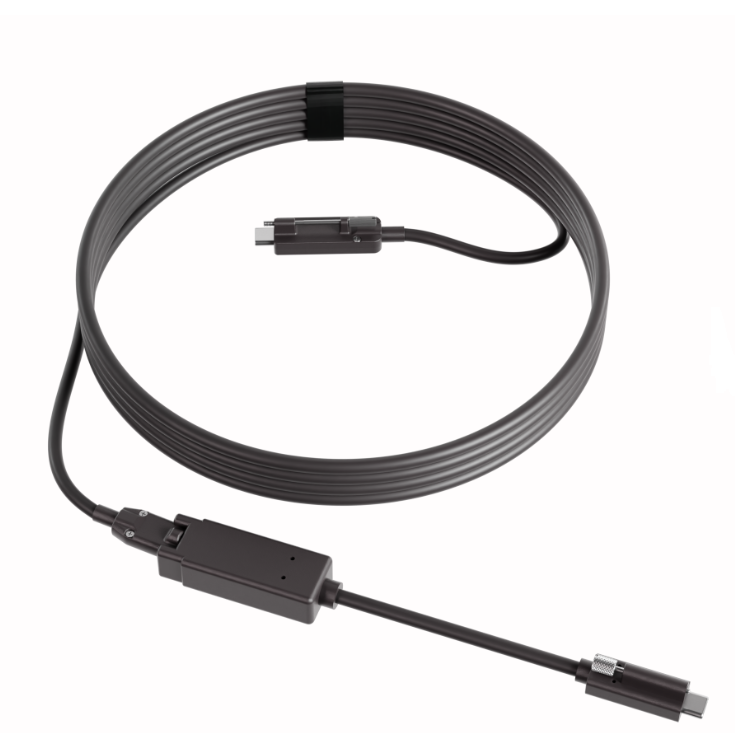

Ochno USB-C Extension Cable
The Ochno USB-C Extension Cable is a unique product optimized for connecting the wall side of a meeting room with the table. Ochno has developed a set of key features to make it suitable for video conference rooms and ProAV needs:

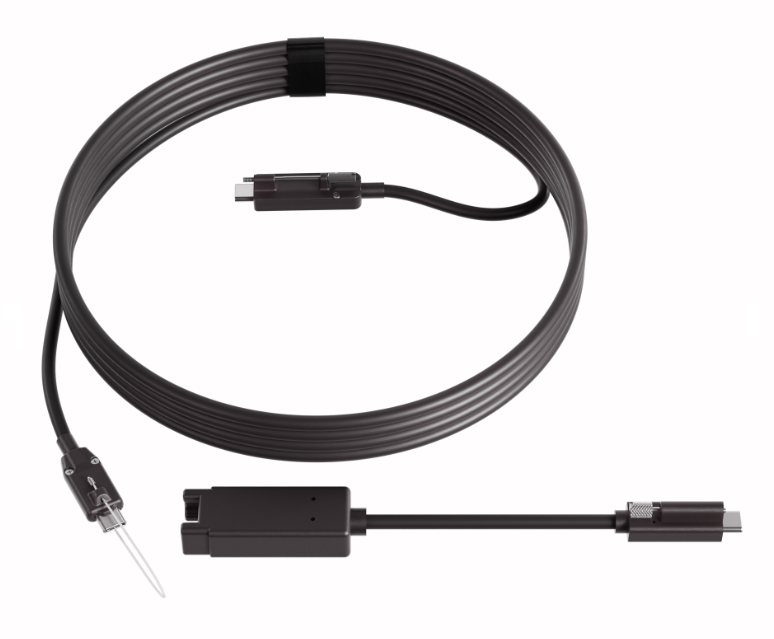

- Detachable electronics to make the pull-connector as small as possible.
- A solid metal enclosure with an integrated steel wire, making it easy to attach to a pull-wire.
- A Kevlar-enhanced cable that supports a pull-force of 200 N.
The product is available in 10m and 20m options.
- 10 Meter: O-EC-10 8102566
- 20 Meter: O-EC-20 8102567
General
Product name
Ochno USB-C Extension Cable
Models
- 10 Meter: O-EC-10 8102566
- 20 Meter: O-EC-20 8102567
Contents
Active Optical Cable, Attachable electronics cable, User Guide
Warranty
1 year
Regulatory approvals
CE, FCC, RoHS, REACH
Safety class
IP20, 90% RH
Ambient temperature
5° – 40°C.
Specification
Power distribution
Rated for 15W. Not be used for charging laptop.
Alt-mode configuration
2 Lane DP + 2 Lane USB 3.2
USB
USB 2.0 HS (480 Mbit/s), USB 3.2 Gen 2 (10 Gbps)
Video
2 Lane DP 1.4 HBR3 (2 x 8.1 Gbps)
Direction
Uni-directional.
Conduit size
Minimum inner diamater 15mm with smallest tube bend radius of 50mm. Larger inner diameter can handle smaller tube bend radius
Max pull-force
200 Nm / 20 Kg
General
- Cable type
- Installation cable
- Connection from
- USB-C
- Connection to
- USB-C
Functions
- USB standard
- 3.2 Gen 2
- Data transfer speed
- 10 Gbit/s
- Punottu
- Kyllä
Mitat ja Paino
- Length
- 10 m
Dimensions and weight
- Color
- Musta
- Warranty
- 1 vuotta
Paketin tiedot
- Paketin mitat
- 200 x 200 x 100 mm
- Paketin paino
- 400 g
