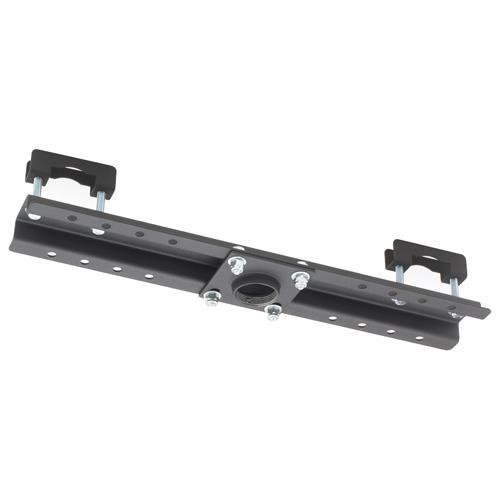

Spans truss systems for easy overhead installation of equipment in buildings and exhibit booths.
Key Features:

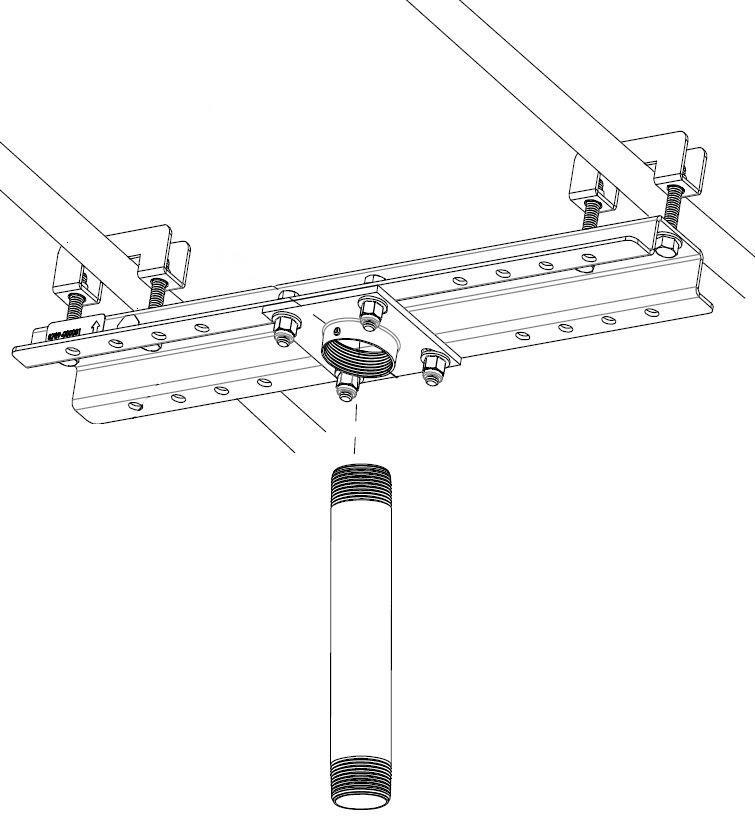

• Spans truss systems and provides lateral shift capability
• Compatible with 1.5" NPT extension columns
• Allows cable routing through the column
• Span Distance: 5-18" (127-457 mm)
• Clamp Range: up to 2" (51 mm) OD or 1.9" (48 mm) square tubing
• TAA Compliant
General
- Mounting solution
- Clamp/Truss
- Column installation
- NPT Threaded
- Color
- Musta
- Material
- Steel
- Angled Ceiling
- Ei
Mitat ja Paino
- Max weight capacity
- 113,4 kg
- Width
- 552 mm
- Height
- 102 mm
- Depth
- 45 mm
Additional information
- Warranty
- 10 vuotta
Paketin tiedot
- Paketin mitat
- 755 x 107 x 50 mm
- Paketin paino
- 3,18 kg
