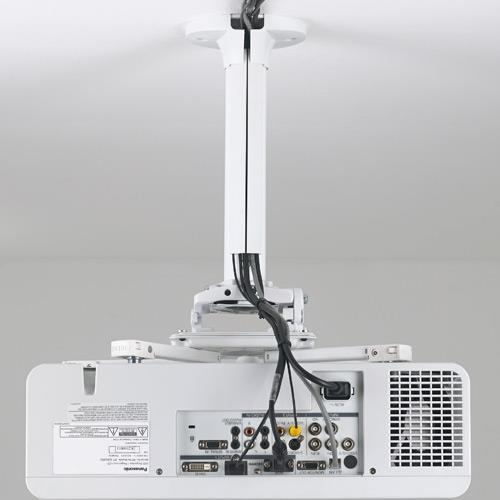

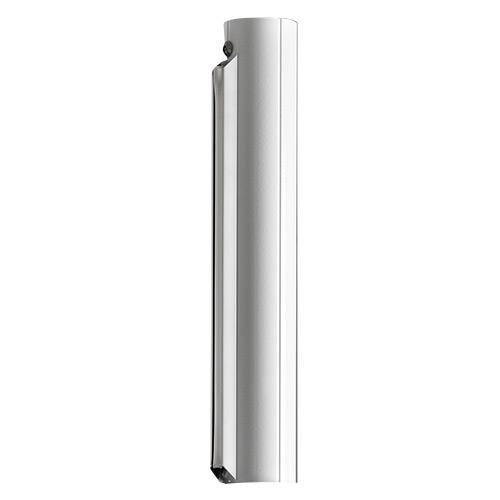

CPAE columns were designed specifically for use in Europe, Middle East, and Africa and are only available in those regions. CPAE columns feature convenient pin-connections for a fast installation and a quick service external cable management.

Key Features:

  • External Cable Management
  • Quick Service external cable management eliminates the need to pre-route cables
  • Inlay style allows cables to be easily installed or removed for serviceability

Flexible Inventory

  • Can be cut to length to customize your installation
  • Can be re-drilled

Compatibility

  • Compatible with dedicated pin connection ceiling plates (see CPA Plates)
  • Compatible with all Chief Ceiling Plates (see CPA262 and CPA264)

Professional Appearance

  • Grooves in outer surface of column provide an aesthetic appearance and also act as drill guides

Multiple Length Options

  • Ships in pre-cut lengths with 3 pre-drilled thru holes in each column end


General

Column Type
Fixed
Column installation
Pin Connection
Color
Valkoinen

Mitat ja Paino

Max weight capacity
226,8 kg
Column lenght max
1 000 mm

Additional information

Warranty
10 vuotta

Paketin tiedot

Paketin mitat
1 117 x 57 x 57 mm
Paketin paino
1,57 kg
