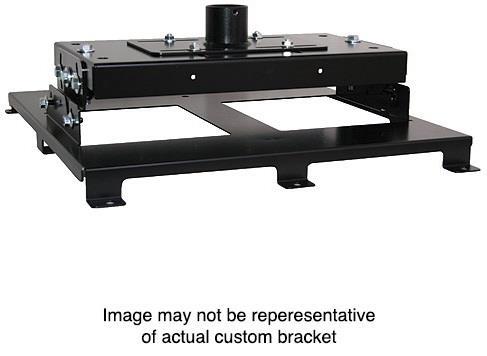

This mount provides the strong support you need for mounting heavy LCD/CRT projectors.
Note: To ensure this mount works with your equipment check the Fit-list below.

Key Features

  • Independent roll, pitch and yaw adjustments for quick and precise projector registration
  • Multiple installation options: flush mount to ceiling, use 0.5" threaded rods, use a 1.5" NPT extension column
  • Quick connect/disconnect for convenient lamp and filter access on most projectors
  • Cable management through top of the mount without additional accessories
  • To flush mount the VCM, see LPK1

VCM100 Fits the following Barco Projectors:
HDX-4K12
HDX-4K14
HDX-4K20 FLEX
HDX-W12
HDX-W14
HDX-W16
HDX-W18
HDX-W20 FLEX
WODAN



General

Color
Musta
Column installation
NPT Threaded

Functions

Lockable
Ei

Measurements and weight

Max weight capacity
113,4 kg

Additional information

Warranty
10 vuotta

Paketin tiedot

Paketin mitat
425 x 292 x 635 mm
Paketin paino
20,40 kg
