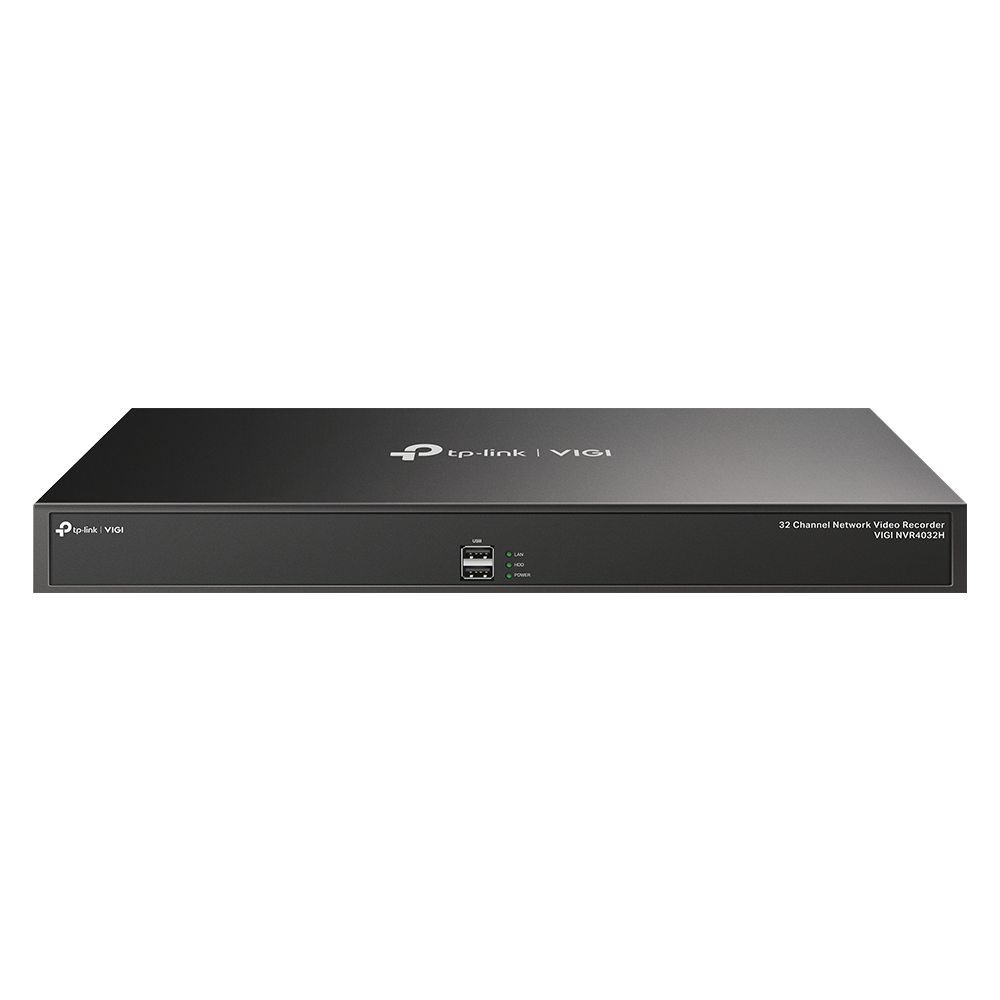

VIGI 32 Channel Network Video Recorder VIGI NVR4032H
- 32-Channel Live View and 4K HDMI Video Output
- Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding Capability
- 16-Channel Synchronous Playback†
- 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
- 4× SATA Interfaces and 1 Up to 16 TB*
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
†The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 32MP.
*HDD is not included.
‡This model currently supports ONVIF Profile S.
§Due to the weight of this model, it is recommended to use a tray when mounting the rack with angle iron. Please note that the tray is not included.
Preformance
- IP Video input channels
- 32 Channels
- Throughput bandwidth
- 320 Mbit/s
Storage
- Storage Type
- SATA
- Storage
- 16 TB Up to 16 TB Capacity for Each HDD*
- HDD Drive Bays
- 4 pcs.
- HDDs installed
- No

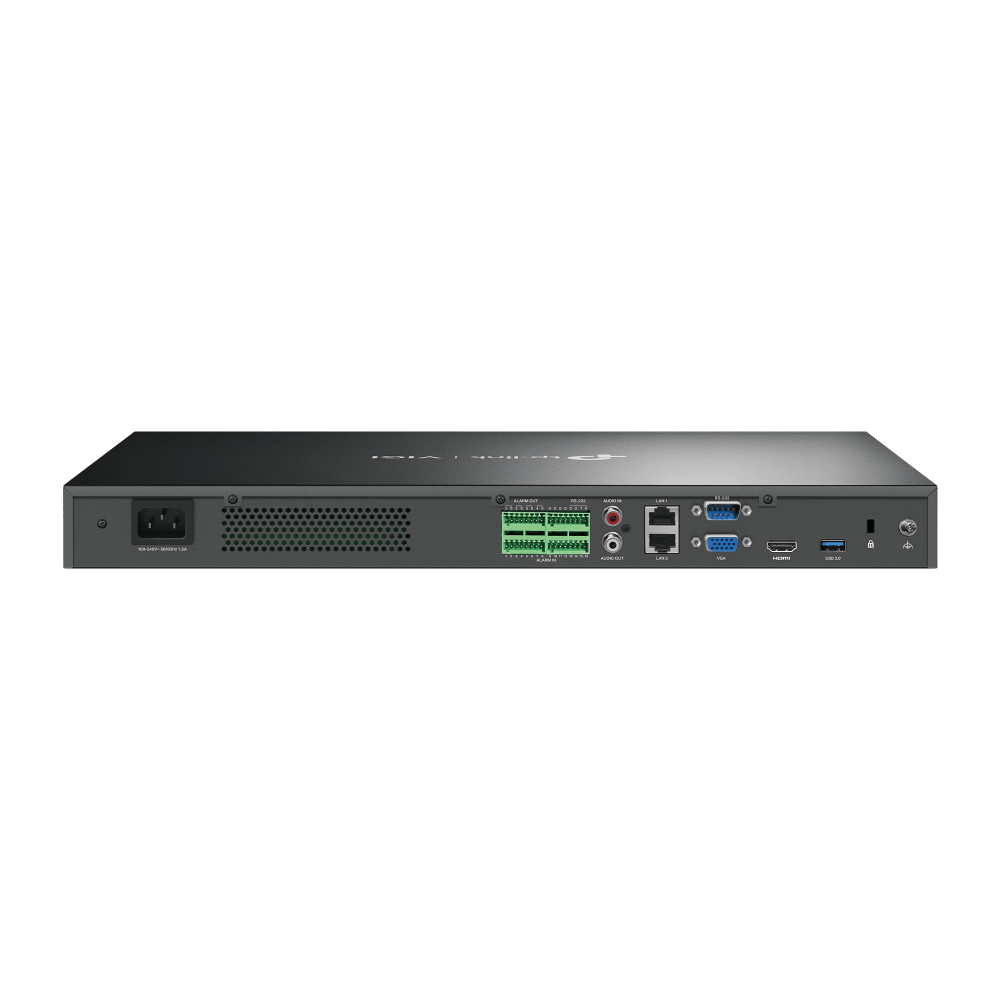

Ports and Interfaces
- HDMI
- Kyllä HDMI/VGA Independent Output
- USB-ports
- Kyllä 2x Front USB 2.0 Ports, 1x Rear USB 3.0 Port
Communication
- Number of RJ-45 Ports
- 2 pcs. RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
Energy
- Power Supply
- 100-240 VAC, 50 to 60HZ, 1.5A
- Consumption Typical
- 5 W (Without Disk)
- Consumption Max
- 48 W (With Disk)
Paketin tiedot
- Paketin mitat
- 528 x 440 x 100 mm
- Paketin paino
- 5,22 kg
Paketin tiedot kpl
- Paketin mitat
- 555 x 460 x 225 mm
- Paketin paino
- 11,00 kg
