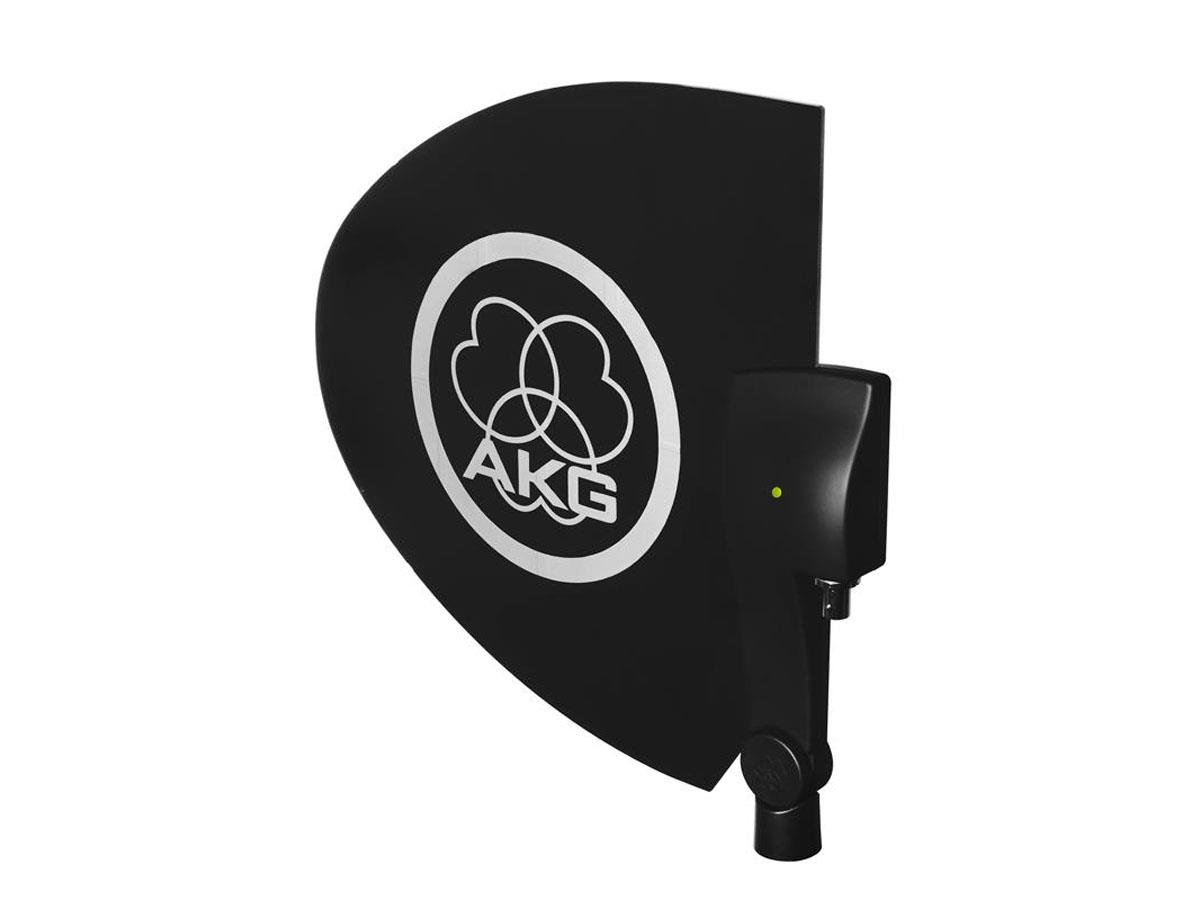

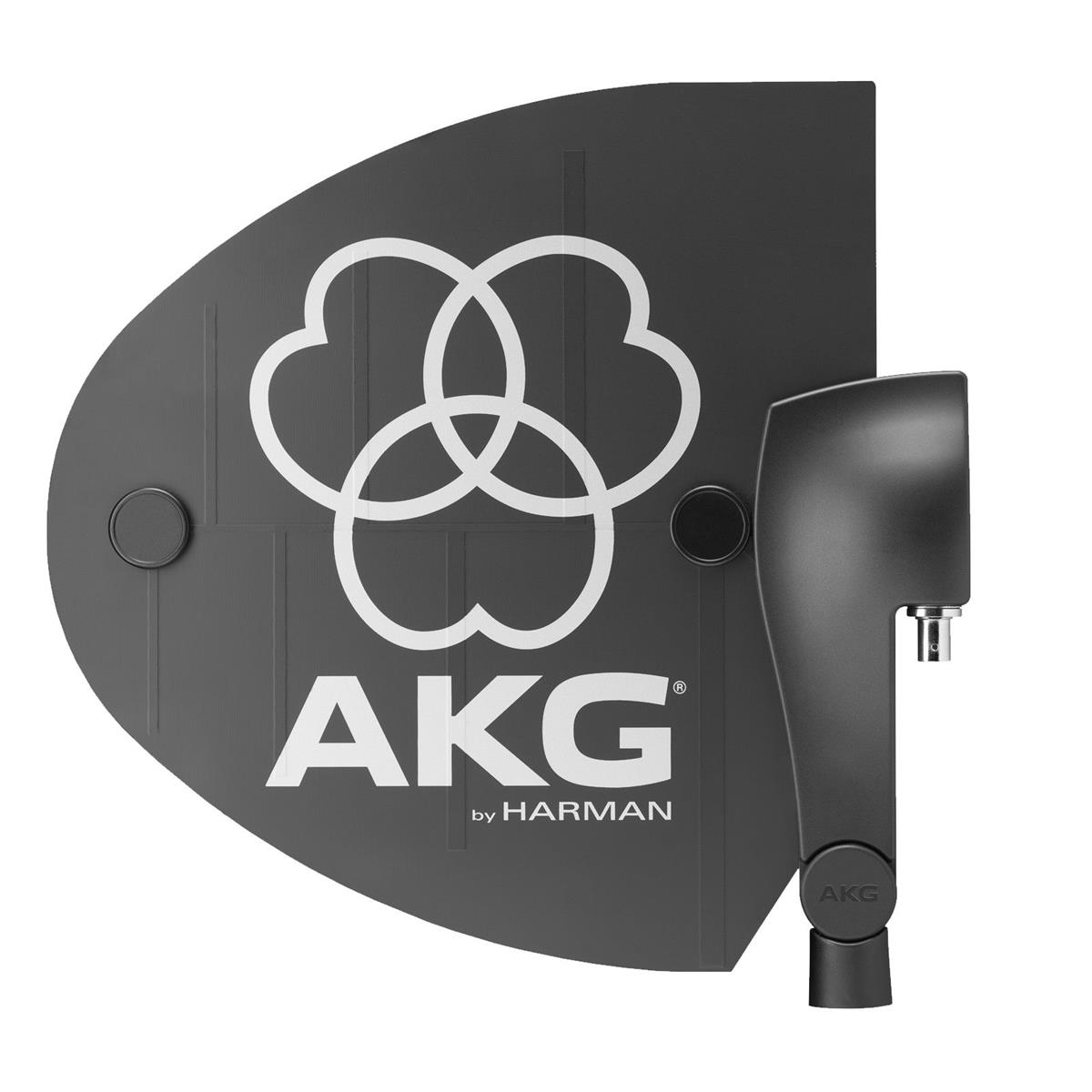

The SRA2 EW is a passive directional wide-band UHF antenna that can be used as a transmitting or receiving antenna for wireless microphones and in-ear monitoring systems. It operates in a frequency range from 470MHz to 952MHz and provides a covering angle of 70° and an antenna gain of 6dB.
The SRA2 EW is built in a passive technology and requires no powering. It works for short cable lengths up to 10m and supports a professional BNC connector. The antenna has waterproof construction and can be used for indoor and outdoor applications. With the included universal thread adapter, it can be mounted on floor stands with 3/8" or 5/8" screws.
General
- Model series
Wireless specification
- Radio frequency Mini
- 470 MHz
- Radio frequency Max
- 952 MHz
Mitat ja Paino
- Width
- 240 mm
- Depth
- 26 mm
- Height
- 230 mm
- Net weight
- 0,25 kg
Additional information
- Amount in delivery
- Single unit
Paketin tiedot
- Paketin mitat
- 290 x 280 x 35 mm
- Paketin paino
- 505 g
