Features
- Four Input / Output Card Slots
- Configurable Inputs / Outputs
- Analog Inputs (with Phantom Power per Channel)
- Analog Outputs
- Digital Inputs (AES/EBU and S/PDIF)
- Digital Outputs (AES/EBU and S/PDIF)
- AEC Inputs (with Phantom Power per Channel)
- Telephone Hybrid Card
- Rich Palette of Logic Objects
- 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus

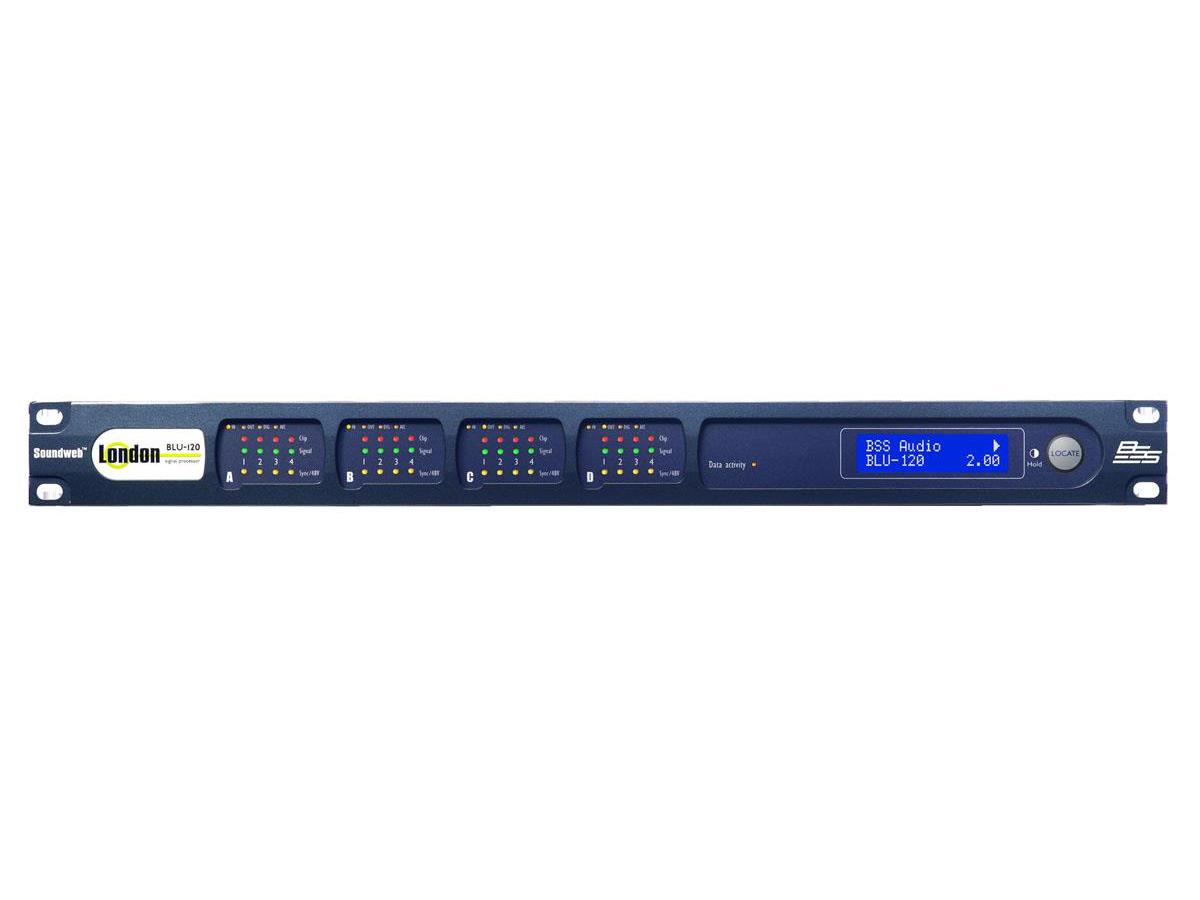

- Clear Front Panel LED Indication
- Informative Front Panel Display
- Bi-Directional Locate Functionality
- 12 Control Inputs and 6 Logic Outputs for GPIO Integration
- Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
- HiQnet Device
- Configuration, Control and Monitoring from HiQnet Audio Architect
- EN 54-16 Compliant for life safety applications
Specifications
| Chassis | 19" (single rack space) |
|---|---|
| Custom I/O (card based) |  |
| Analog Inputs | up to 16 |
| Digital Inputs | up to 16 |
| AEC Inputs | up to 16 |
| Analog Outputs | up to 16 |
| Digital Outputs | up to 16 |
| Telephone Connection | up to 4 |
| Max Inputs/Outputs | 16 |
| Config | Software |
| LCD Display | |
| Logic Processing | |
| RS-232 | |
| GPIO | |
| Signal Processing (MHz) | no |
| Cobranet | no |
| SWL Digital Audio Bus | 256 |
| AVB | no |
| Dante | no |
- Control
- Ethernet/IP (RJ-45)
- Control
- GPI/O 12 Control Inputs and 6 Logic Outputs
- Control
- RS-232
General
- Model series
- BLU
- Application
- Chassis

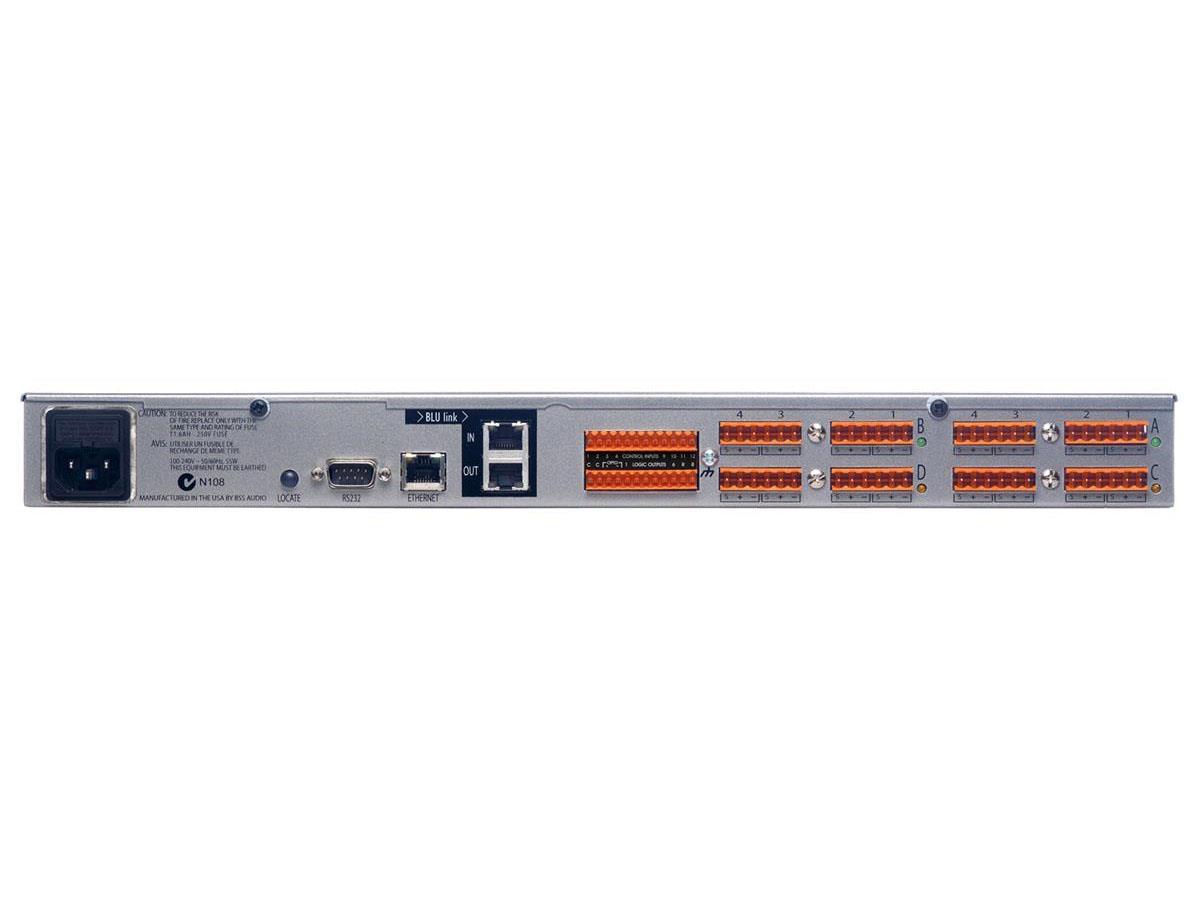

Connections
- Ethernet
- Kyllä
- Audio inputs
- BLU Link
- Audio outputs
- BLU Link
- Dante
- Ei
- Wi-Fi
- Ei
Additional information
- Application
- 19" Rack, 1U
- Warranty
- 5 vuotta
Paketin tiedot
- Paketin mitat
- 120 x 620 x 500 mm
- Paketin paino
- 8,00 kg
