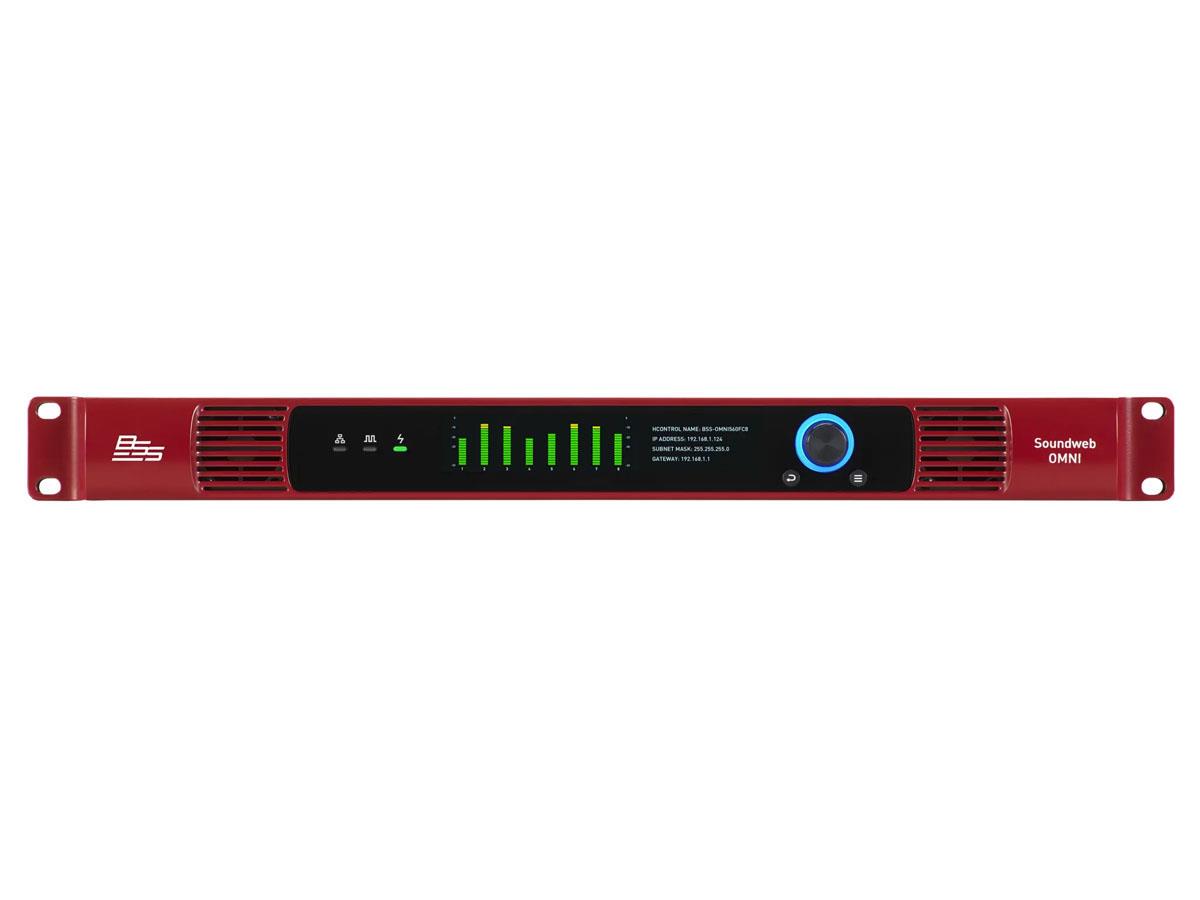

The BSS Soundweb OMNI 16e Open Architecture I/O Expander offers the ability to onramp and offramp Analog/AES3 to/from Soundweb OMNI 512p and 256p Digital Signal Processors. The 16e converts these signals to and from Dante/AES67 for processing by Soundweb OMNI DSPs. The all-new design ensures the seamless handling of today’s most complex installations to be future-ready to meet the evolving needs of tomorrow.

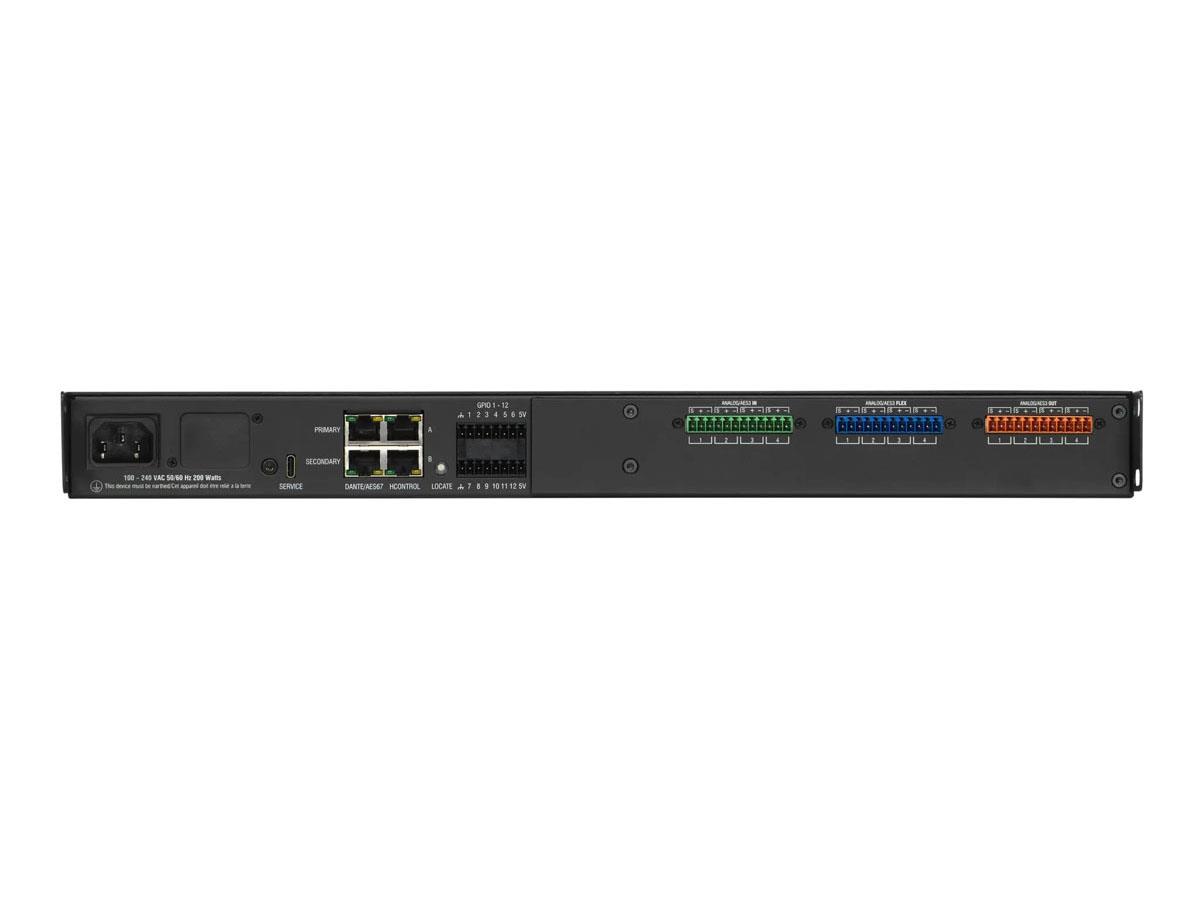

The 16e features 4x4x4 Analog or 8x8x8 AES3 audio channels; 16x16 Dante/AES67 networked audio output channels; 12 GPIO ports (fully flexible); enterprise-grade network security; studio quality 60dB microphone pre-amp on all inputs; high resolution DAC and ADC, primary and secondary Dante connections, redundant HControl ports; full-color, front panel LCD with metering; stereo AES3 on every audio connector; and more.

Each audio I/O port on Soundweb OMNI I/O Expanders is format configurable as either analog or stereo AES3 and four of the audio I/O ports are also configurable to be either inputs or outputs. All GPIO ports are configurable as either input or output ports, and their format can be either analog or digital.



General

Model series
OMNI
Application
Break in/break out

Additional information

Application
19" Rack, 1U
