Audio Architect Software

The BLU-100 has open architecture which is fully configurable through HiQnet™ Audio Architect. A rich palette of processing and logic objects and a “drag and drop” method of configuration provide a simple and familiar design environment.

This processor features a low latency, fault tolerant digital audio bus of 48 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 40km.

Features

  • 12 Analog Inputs (with 48v Phantom Power per Channel)
  • 8 Analog Outputs
  • Configurable Signal Processing
  • Rich Palette of Processing and Logic Objects
  • 48 Channel, Low Latency, Fault Tolerant Digital Audio Bus

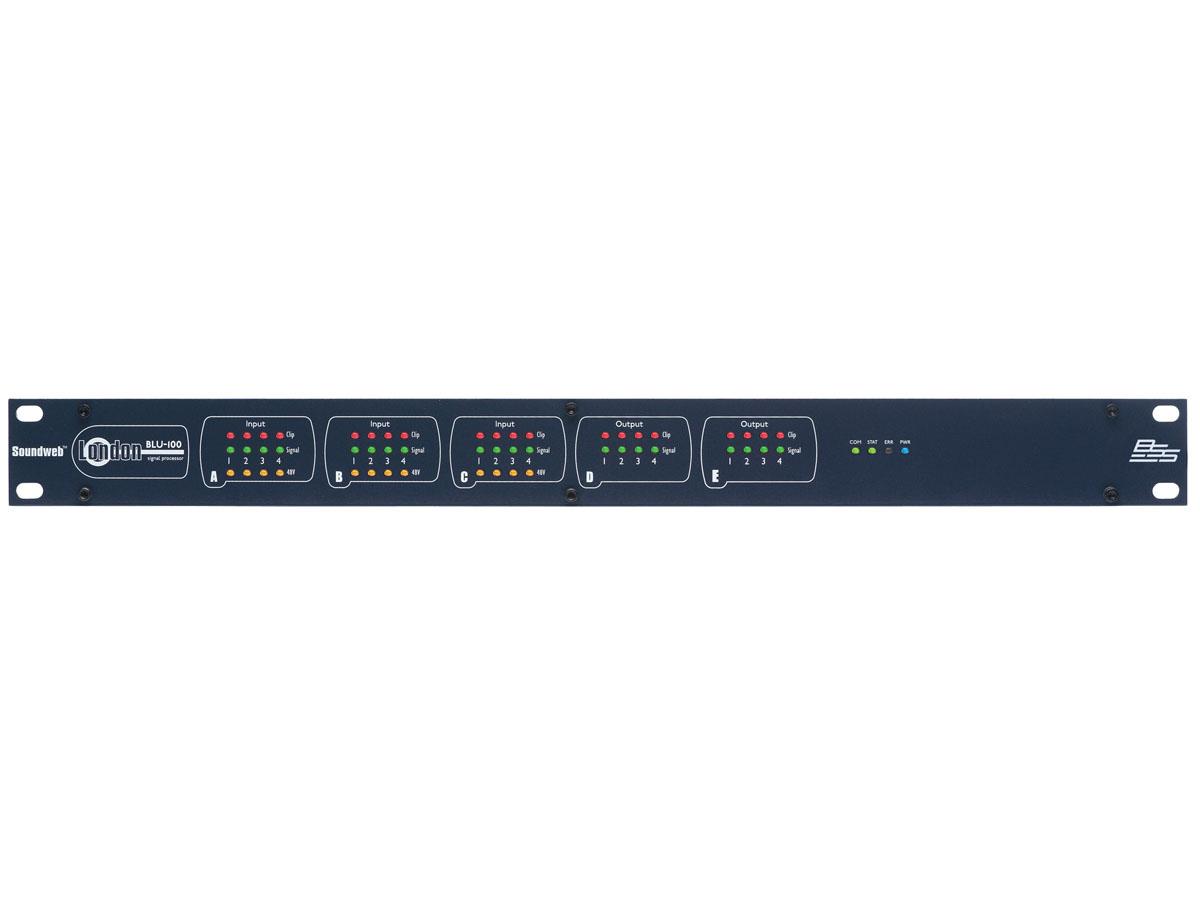

  • Clear Front Panel LED Indication
  • Bi-Directional Locate Functionality
  • 12 Control Inputs and 6 Logic Outputs for GPIO Integration
  • Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
  • HiQnet Device
  • Configuration, Control and Monitoring from HiQnet Audio Architect


Control
Ethernet/IP (RJ-45)
Control
GPI/O 12 Control Inputs / 6 Logic Outputs
Control
RS-232

General

Model series
BLU
Application
Fixed I/O

Connections

Ethernet
Kyllä
Audio inputs
BLU Link
Audio inputs
Euroblock line x12 (with 48v Phantom Power)
Audio outputs
BLU Link
Audio outputs
Euroblock line x8

Additional information

Application
19" Rack, 1U
Warranty
5 vuotta

Paketin tiedot

Paketin mitat
240 x 157 x 45 mm
Paketin paino
4,65 kg

Tarvikkeet

Artikkelinumero 2264074
Artikkelinumero 2264075
Artikkelinumero 2264078
