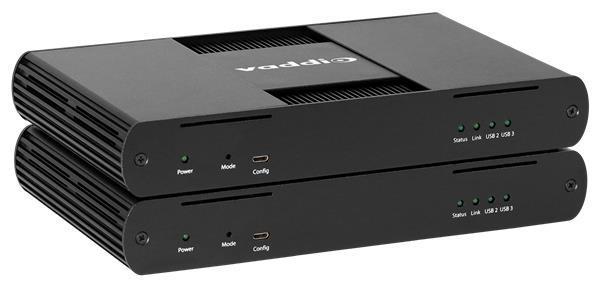

The Vaddio USB 3 Extenders enable you to extend USB 3.1 beyond the standard 3m cable limit for USB 3.1 peripheral devices (like a camera or other av source). This extender system is composed of two individual units, the Local Extender and the Remote Extender.

Key Features:
• Up to 100 m of extension when directly connected over CAT 6a/7 cable
• USB 3.1 Gen 1 data rate up to 5Gbps
• Supports USB 3.1 Gen 1, USB 2.0, and USB 1.1
• Supports up to four remote USB devices simultaneously at full bandwidth (5Gbps)
• True plug and play; no software drivers required
• Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
• 100/1000 Ethernet channel; LAN pass-through

In the box:

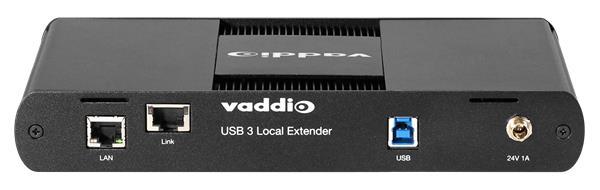

• USB 3 Local (Rx) Extender unit
• USB 3 Remote (Tx) Extender unit
• Local Extender 24V, 1A power supply with AC cord set(s)
• Remote Extender 24V, 2.71A power supply with AC cord set(s)
• USB 3.1 Gen 1 cable, 1.8 m
• Quick-Start Guide



General

Extender type
Transmitter & reciever kit
Technology
TP/CAT
Range (max)
100 m Cat 6a/7 cable

Features

USB standard
1.1, 2.0, 3.0, 3.1 Gen 1
USB/Data connection from
USB-B x1
USB/Data connection to
USB-A x4

Energy

Power Supply
24V DC External Power Supply

Measurements and weight

Width
231,9 mm
Depth
136,9 mm
Height
35,1 mm
Net weight
2,11 kg

Additional information

Application
Freestanding/Shelf
Included Accessories
USB 3 Local (Rx) Extender unit, USB 3 Remote (Tx) Extender unit, Local Extender 24V, 1A power supply with AC cord set(s), Remote Extender 24V, 2.71A power supply with AC cord set(s), USB 3.1 Gen 1 cable 1.8 m
Warranty
3 vuotta

Paketin tiedot

Paketin mitat
215 x 250 x 185 mm
Paketin paino
3,50 kg
