Beyond processing, the ZonePRO® products offer multiple forms of control to further extend the versatility of your system. From easy-to-use wall panel Zone Controllers for standard end-user functions like source select and volume control to advanced system control including a built-in Real Time Clock that can provide programmable system changes throughout the day or week.

For system setup and monitoring the ZonePRO Designer software provides an intuitive interface and a speedy setup Wizard for configuring and editing all system parameters. The addition of Ethernet control means that not only will it work with standard network equipment, but it can also be accessed from remote dialup locations or from wireless access points. The ZonePRO® 1261 will take your Commercial Audio system to the next level with advanced processing, versatility and control.

Features

  • Advanced Feedback Suppression (AFS™)
  • Autowarmth®
  • Auto Gain Control
  • Compression
  • Limiting
  • Noise Gating
  • Notch Filtering
  • Bandpass and Crossover Filters
  • Parametric EQ
  • Security Lockout
  • Wall Panel Control
  • RS-232 Control
  • IEC, UL and CSA Approvals


Control
Ethernet/IP (RJ-45), RS-232

General

Model series
ZonePro
Application
Fixed I/O

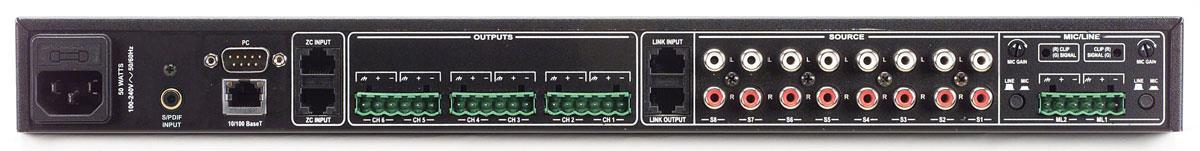

Connections

Ethernet
Kyllä
Audio inputs
Coaxial Digital S/PDIF
Audio inputs
Euroblock line x2 (Mic/Line)
Audio inputs
RCA x8
Audio outputs
Euroblock line x6

Additional information

Application
19" Rack, 1U
Warranty
2 vuotta

Paketin tiedot

Paketin mitat
565 x 289 x 90 mm
Paketin paino
3,91 kg

Tarvikkeet

Artikkelinumero 2264200
Artikkelinumero 2264201
Artikkelinumero 2264202
Artikkelinumero 2264203
Artikkelinumero 2264204
Artikkelinumero 2264207
Artikkelinumero 2264210
