SP_1262_v1.1_SL_PASC_2_Specification_EN

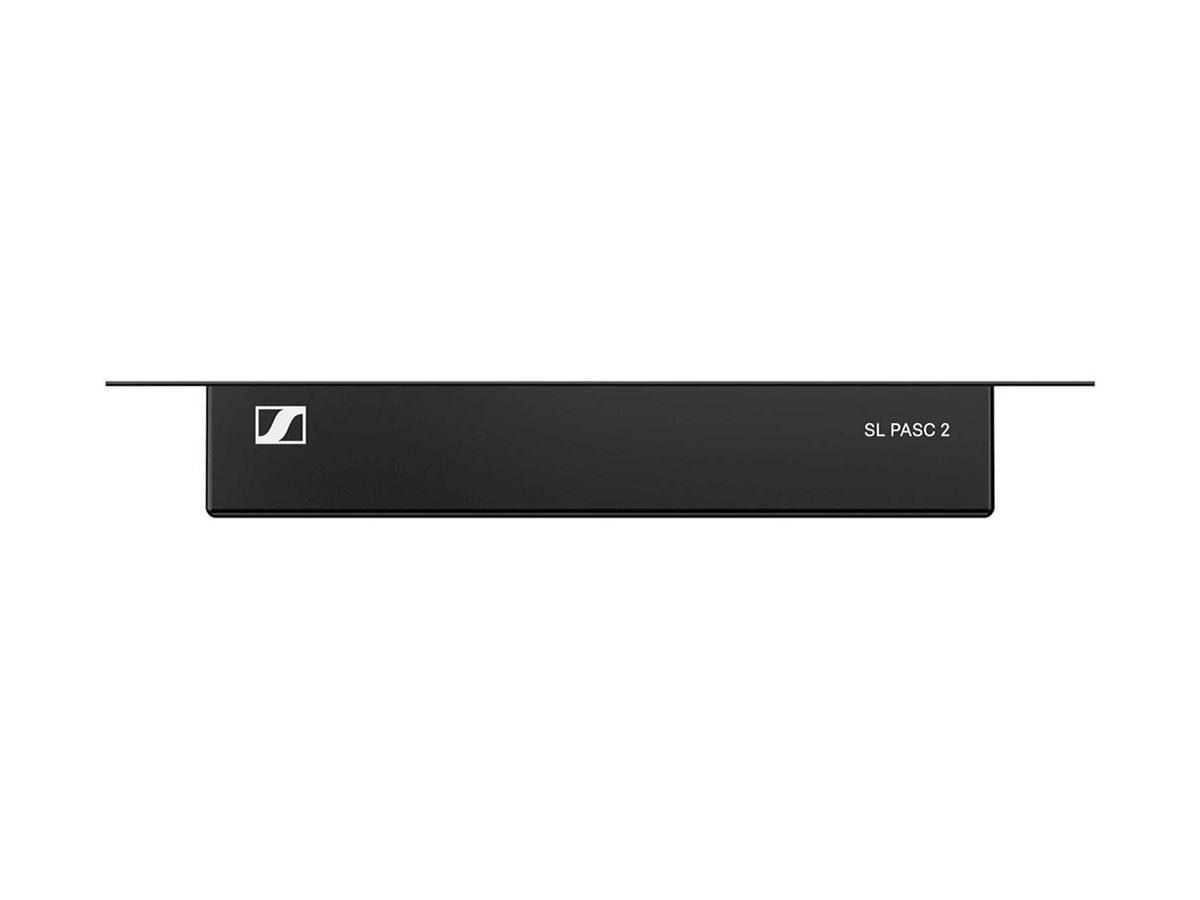

The SL PASC 2 is a passive 2-way Diversity antenna splitter / combiner for the SpeechLine Digital Wireless microphone series. It is used to distribute the antenna signals of up to 2 SpeechLine Digital Wireless links. This reduces the number of required antenna cables to a minimum when the AWM 2 or AWM 4 remote antennas are used. The rack receivers are connected to the SL PASC 2 using the supplied SMA-R cables.

Features

  • 1880 - 1930 MHz (DECT range)

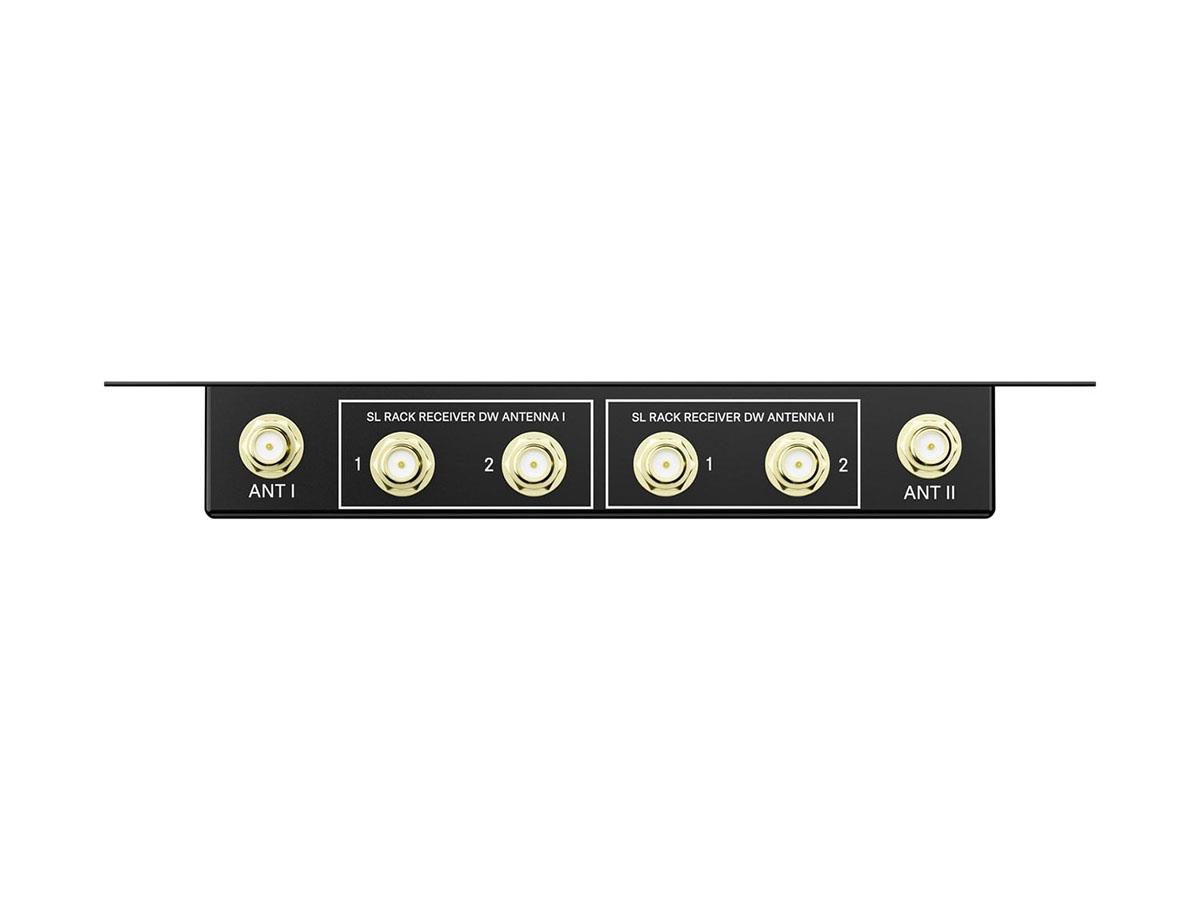

  • 4 RF outputs for connecting up to 2 SL Rack Receiver DW units

  • 2 RF inputs to connect AWM 2 or AWM 4

  • RP-SMA connectors

  • Passive antenna combiner / splitter

What's in the box?

  • SL PASC 2
  • 4x SMA-RP cable (length 50 cm)
  • Quickguide
  • Safety guide

Technical Data

  • Dimensions
    150 x 50 x 21 mm
  • Weight
    135g
  • Attenuation
    4,5 dB typ.


Paketin tiedot

Paketin mitat
350 x 280 x 80 mm
Paketin paino
215 g
