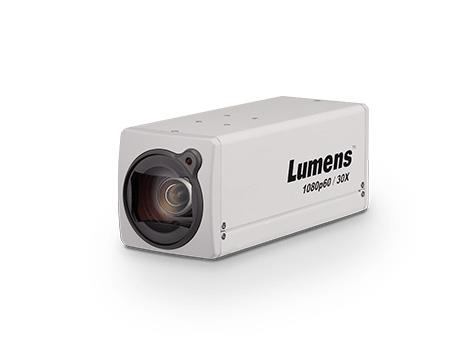

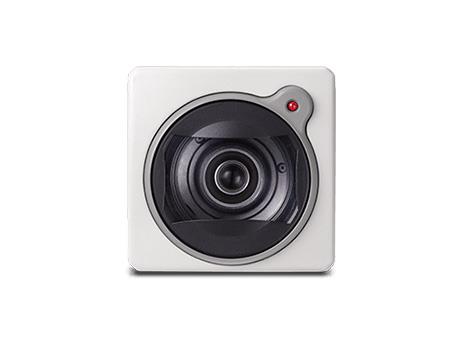

Lumens® VC-BC601P is 1080p 60fps and 30x optical zoom High Definition block camera. The VC-BC601P contains HDMI 2.0, Ethernet, 3G-SDI output in a compact design and support triple stream and PoE, which is ideal for house of worship, education, sports production, broadcast television, news/weather-casts, corporate video, courtroom capture, live streaming, and a variety of ProAV applications.
Features
- 1080p 60fps
- 30x optical zoom, 68 degrees horizontal viewing angle
- HDMI, 3G-SDI and Ethernet video outputs
- Triple stream video, support HEVC(H.265) / H.264 format
- Supports RTSP / RTMP / RTMPS / MPEGTS / SRT streaming protocol
- Supports PoE (Power over Ethernet)
- Supports Line/MIC audio input
General
- Camera type
- Fixed boxcamera
- Color
- Valkoinen
Image specification
- Max Resolution (Out)
- 1920x1080
- Framerate
- 60 FPS
- Optical zoom
- 30 x
- Digital zoom
- 12 x
- Field of view (horizontal)
- 68 °
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 0,1 Lux (F1.6, 50IRE, 30fps)
- Min. working distance
- 1 500 mm
Functions
- Programmable presets
- Kyllä ePTZ, 256x
- Ceiling installation/Flip image
- Kyllä
- Auto framing/tracking
- Ei
Audio specification
- Built-in microphone
- Ei
- External microphone
- Kyllä Line In / Mic In via 3,5mm
- Built-in speaker
- Ei
- External speaker
- Ei
Connections
- Video out
- 3G-SDI 1080p 60fps
- Video out
- HDMI 1080p 60fps
- Video out
- IP stream (RJ-45) HEVC(H.265) 1080p 60fps, H.264 1080p 60fps, H.264 640x360 30fps
- Audio inputs
- 3,5mm tele
- Audio outputs
- 3,5mm tele
Energy
- Power Supply
- 12V DC max 9,5W or PoE (IEEE802.3af) max 10,5W
- Consumption Max
- 10,5 W
Mitat ja Paino
- Width
- 67 mm
- Depth
- 187 mm
- Height
- 67 mm
- Net weight
- 1 kg
Additional information
- Included Accessories
- Power cord, Power adapter
- Warranty
- 5 vuotta
