VS-KB21 - IP Camera Controller
- Controls up-to total of 255 IP-connected cameras
- Quick access control of exposure, white balance, focus, PTZ speed and 2 user-assignable keys
- Supports RTSP Preview on LCD screen
- Supports RS-232, RS-422, and Ethernet control
- Supports VISCA and VISCA Over IP control protocols
3" LCD Preview Screen
The low latency preview screen monitors up-to 255 IP streams simultaneously. For precise framing, the operator can switch to a single stream layout enabling full screen video preview.
Quick Camera Select
With 7 hot keys, the operator can instantly select the PTZ or box camera they want to control. This makes it easier than ever to manage a multi-camera production.
General
- Installation
- Desktop
- Interface type
- Joystick

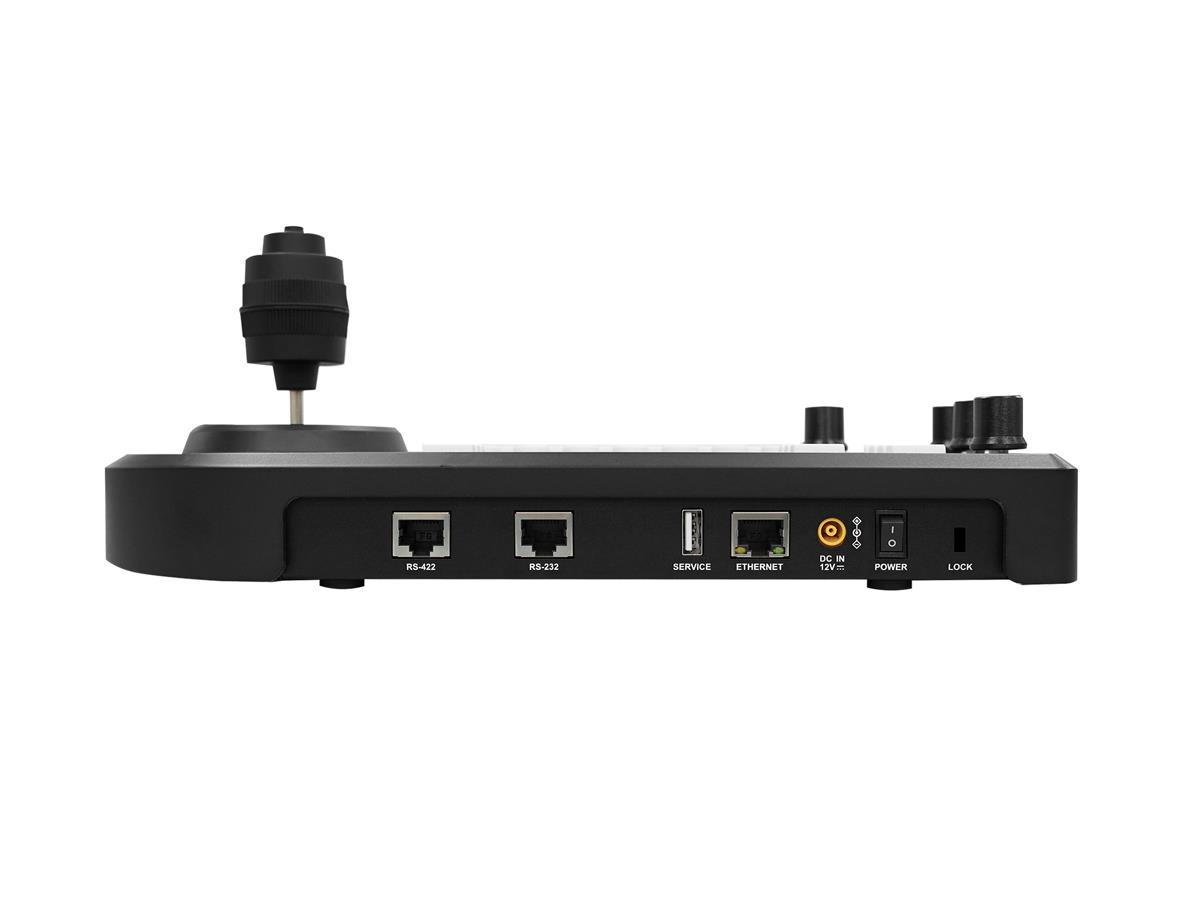

Connections
- Control ports
- Ethernet/IP (RJ-45), RS-232, RS-422
- Ethernet
- Kyllä
Energy
- Power Supply
- DC12V external power supply or PoE. Consumption max 5W
Mitat ja Paino
- Width
- 302 mm
- Depth
- 143 mm
- Height
- 112 mm
- Net weight
- 1,3 kg
Additional information
- Color
- Harmaa
- Included Accessories
- Power cord, Power adapter
- Warranty
- 5 vuotta
