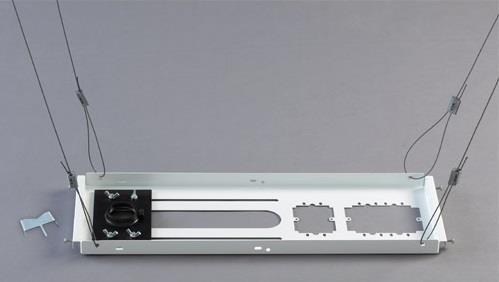

This ceiling tile kit provides a host features that make installing most lightweight front projectors faster and more secure. Chief also offers the CMS440P2 ceiling kit with built-in surge and filtering.

Key Features:

  • WireVice Cable Suspension System for quick and easy tie-off
  • TwisTile Ceiling Tile Cutter easily pierces a circular hole in the ceiling tile for extension column
  • Flexible solution provides infinite column placement within a 2' x 2' or 2' x 4' ceiling tile
  • Single and dual electrical outlet cutouts
  • All-Points Security System provides exclusive locking hardware at column connection point to protect against theft
  • Includes (4) 25' flexible cables, (4) wood eyebolts, (4) concrete anchors and a chrome trim ring
  • Fits 24" (600 mm) wide ceiling tile grids
  • 1.5" NPT compatible


General

Mounting solution
Suspended Ceiling
Column installation
NPT Threaded
Color
Valkoinen
Material
Steel
Angled Ceiling
Ei

Mitat ja Paino

Max weight capacity
22,7 kg
Width
203 mm
Height
32 mm
Depth
595 mm

Additional information

Warranty
10 vuotta

Paketin tiedot

Paketin mitat
681 x 37 x 238 mm
Paketin paino
3,18 kg
