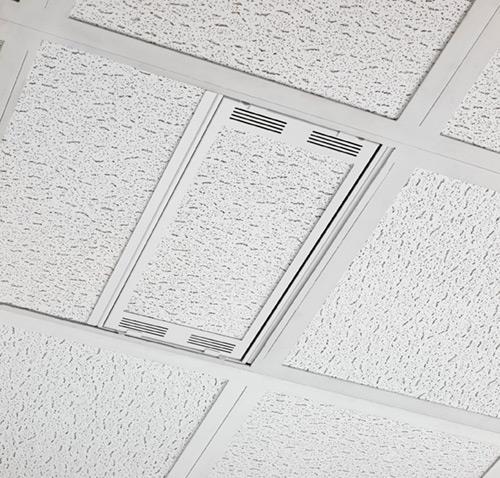

The CMS491 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.

Key Features

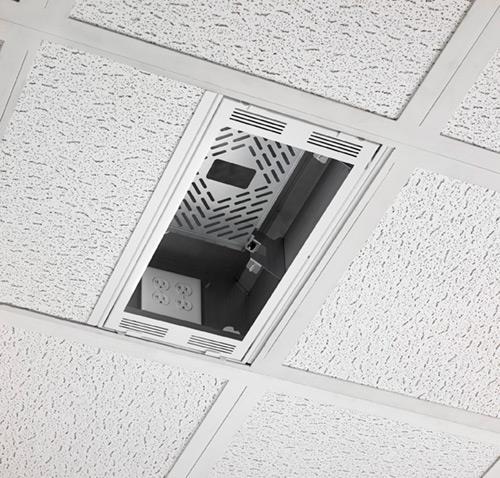

  • Drop carriage door improves accessibility and serviceability providing full access to equipment
  • Detachable power housing can be pre-installed with electricians on site and assembled to the storage boxat a later time
  • Inside the box or facing the room
  • Up to 2 single gang or 1 dual gang outlet
  • 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
  • Built in ventilation
  • AV tray supports a variety of AV components
  • Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
  • Overall weight capacity 100 lbs (45 kg)
  • 50 lbs (22 kg) for projector ceiling plate
  • 25 lbs (11 kg) per shelf location
  • Ships with speed connect installation hardware
  • Lightweight construction, one man installation
  • UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC. TAA Compliant


General

Color
Valkoinen
Material
Steel

Mitat ja Paino

Max weight capacity
45,4 kg
Width
329 mm
Height
203 mm
Depth
601 mm

Additional information

Warranty
10 vuotta

Paketin tiedot

Paketin mitat
698 x 431 x 279 mm
Paketin paino
13,64 kg
