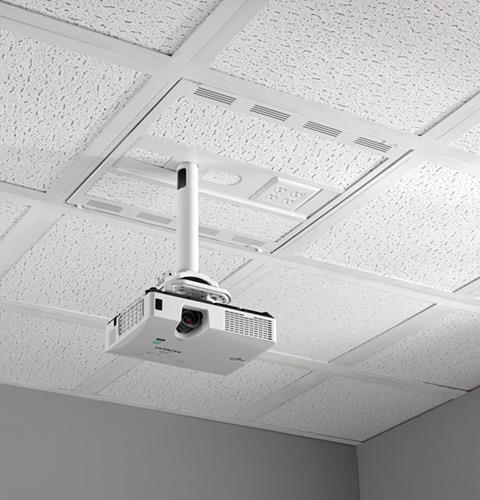

The CMS492C conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.

Key Features:
• Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality

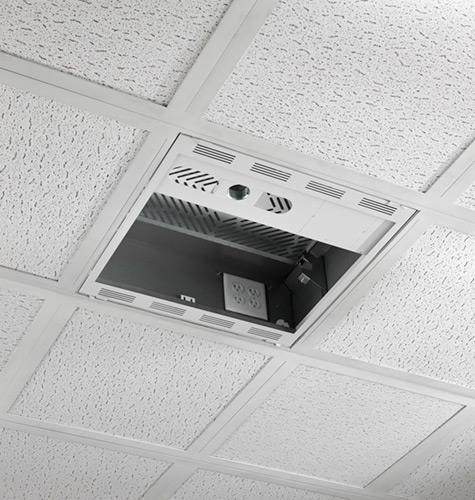

• Drop carriage door improves accessibility and serviceability providing full access to equipment
• Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
• Inside the plenum box or facing the room
◦ Up to 2 single gang or 1 dual gang outlet
◦ 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
• Built in ventilation
• AV tray supports a variety of AV components
◦ Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2
◦ 1 RU rack rail brackets sold separately, see CMS1RU
• Overall weight capacity 100 lbs (45 kg)
◦ 50 lbs (22 kg) for projector ceiling plate
◦ 25 lbs (11 kg) per shelf location
• Ships with speed connect installation hardware
• Lightweight construction, one man installation
• Plenum rated, UL approved in accordance to 2043
• TAA Compliant



General

Color
Valkoinen
Material
Steel

Mitat ja Paino

Max weight capacity
45,4 kg
Width
634 mm
Height
203 mm
Depth
601 mm

Additional information

Warranty
10 vuotta

Paketin tiedot

Paketin mitat
723 x 692 x 317 mm
Paketin paino
19,91 kg
