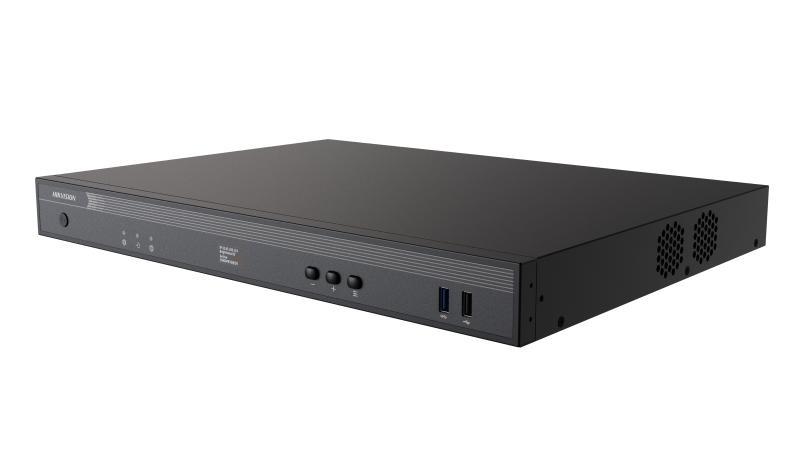

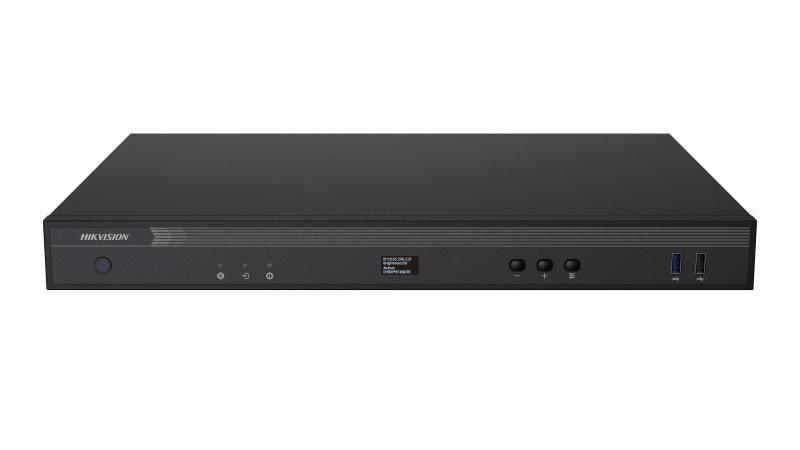

The DS-DT60P-02HDI12NO/U LED controller is used with the full-color LED display. It provides seamless splicing display of large screens of any size. It is suitable for multiple occasions, such as conference rooms, studios, stadiums, airport stations, banks, advertisements, and home cinemas.



General

Model
DS-DT60P-02HDI12NO/U
Application
LED Controller

Image specification

Resolution
4096x2160
Refresh rate
60 Hz

Connections

Video in
DVI-D
Video in
HDMI 2.0
Video out
DVI-D Loop out
Video out
HDMI x2 Loop out, Monitor out
Video out
IP stream (RJ-45) x12 Gigabit Ethernet outputs
Audio outputs
3,5mm tele

Functions

Control
DIP-Switch

Energy

Power Supply
100 to 240 VAC, 50/60 Hz Built-in Power supply

Measurements and weight

Width
440 mm
Depth
320,8 mm
Height
44,5 mm
Net weight
3,37 kg

Various

Mounting
19" Rack, 1U
Included Accessories
1 × AC power cord, 1 × mounting bracket, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 3 × bar antenna, 1× RF remote control

Paketin tiedot

Paketin mitat
577 x 180 x 40 mm
Paketin paino
6,50 kg
