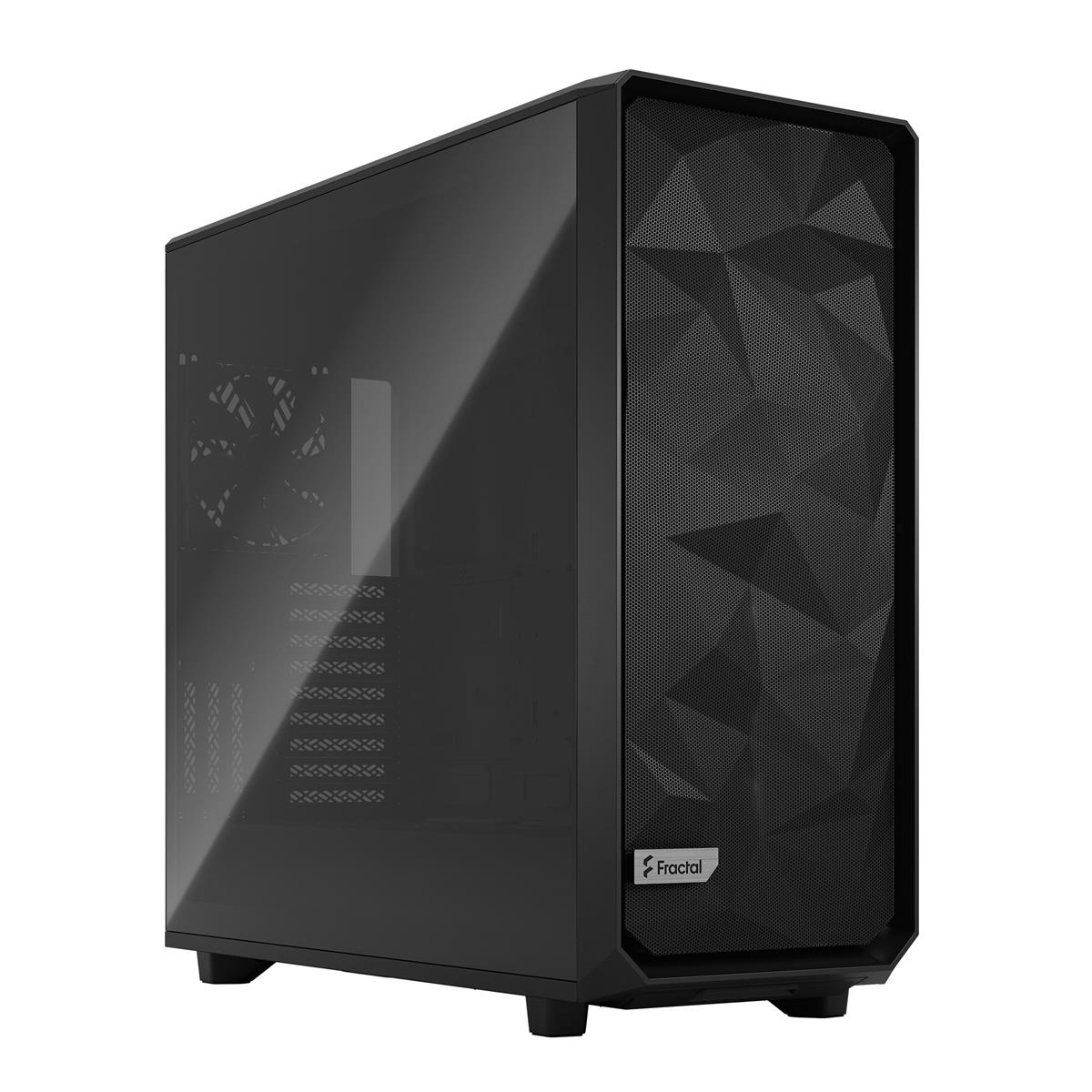

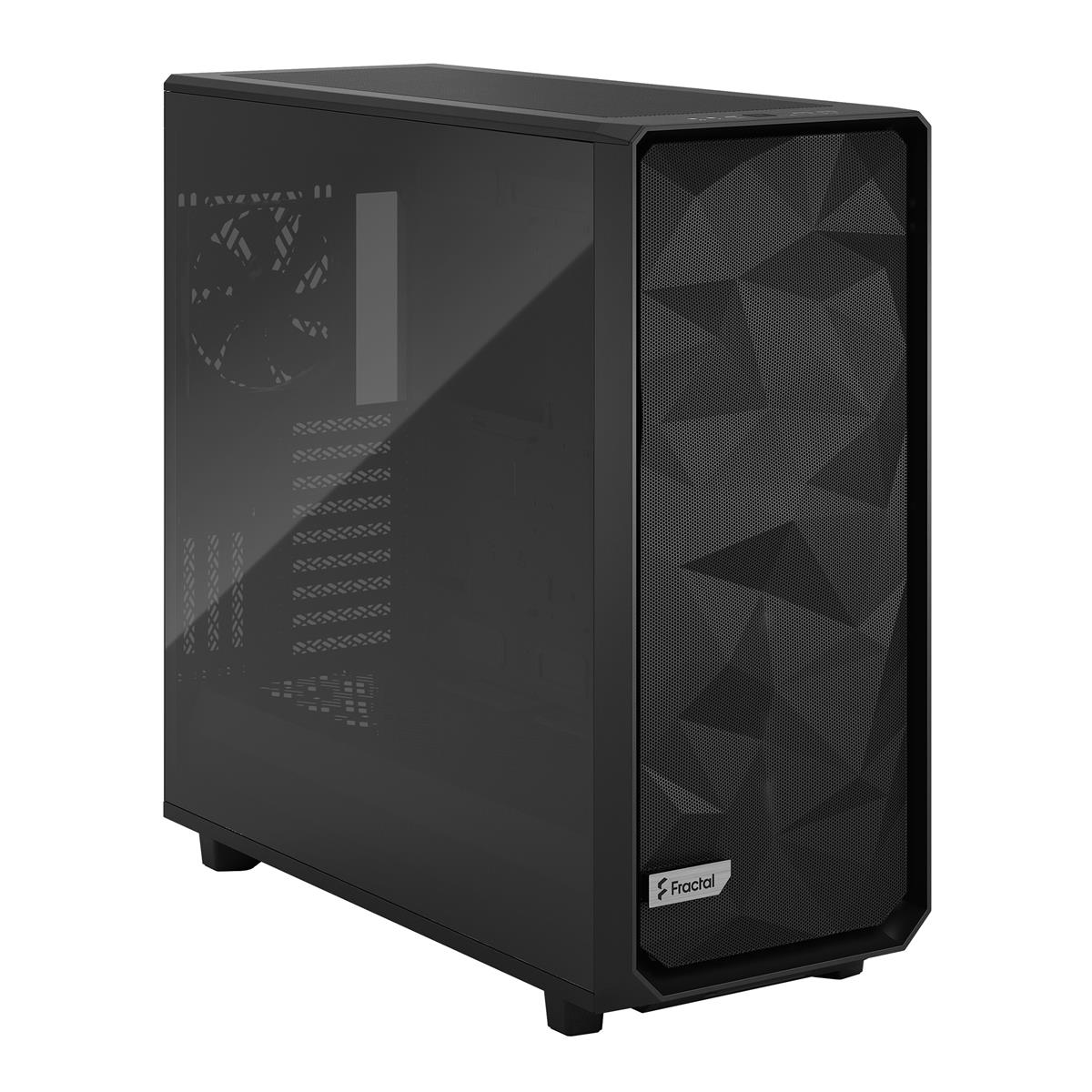

Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.
Detachable front filter
- The nylon filter is easily removed from the hinged mesh panel for increased airflow
- Tether-free bezel for easier access to front fan mounts
- Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)
Superlative storage
- Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
- The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
- Tool-less, top-latching panels allow quick access while preventing accidental drops
Flexible dual-layout design
- Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
- Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
- An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB
Open and interchangeable
Remove the entire top to build and route with zero hindrance.
Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10Gbps
Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects 3x PWM fans and 6x 3-pin fans
Versatile multibrackets
The included Multibrackets lets you convert unused fan positions to HDD, SSD or pump mounts
Easy cable management
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
- USB Ports
- 3 pcs.
- USB type-A
- Kyllä 2x
- USB type-C
- Kyllä 1x
- Audio inputs
- 3,5mm tele Mic
- Audio outputs
- 3,5mm tele Headset (mic in/audio out)
General
- Form factor
- Midi Tower up to EE-ATX/SSI-EEB
- Windowed side
- Kyllä
- Motherboard Compatibility
- ATX, E-ATX, micro ATX, Mini-ITX, SSI-CEB, SSI-EEB
Lagringsplats
- 3.5" Drive Bays
- 6 pcs. 3.5"/2.5" Combo bays, max 18
- 2.5" Drive Bays
- 2 pcs. max 5
Water Cooling
- Radiator front (max)
- 480 mm
- Radiator rear (max)
- 120 mm
- Radiatior top (max)
- 480 mm
Mitat ja Paino
- Max length GPU
- 549 mm
- Max lenght PSU
- 250 mm
- Max heigh CPU cooler
- 185 mm
- Width
- 240 mm
- Height
- 566 mm
- Depth
- 600 mm
- Net weight
- 14,1 kg
Additional Information
- Color
- Musta
- Warranty
- 2 vuotta
Paketin tiedot
- Paketin mitat
- 651 x 330 x 684 mm
- Paketin paino
- 16,40 kg
- Viivakoodi
- 7340172702566
