High Impact. Streamlined Value

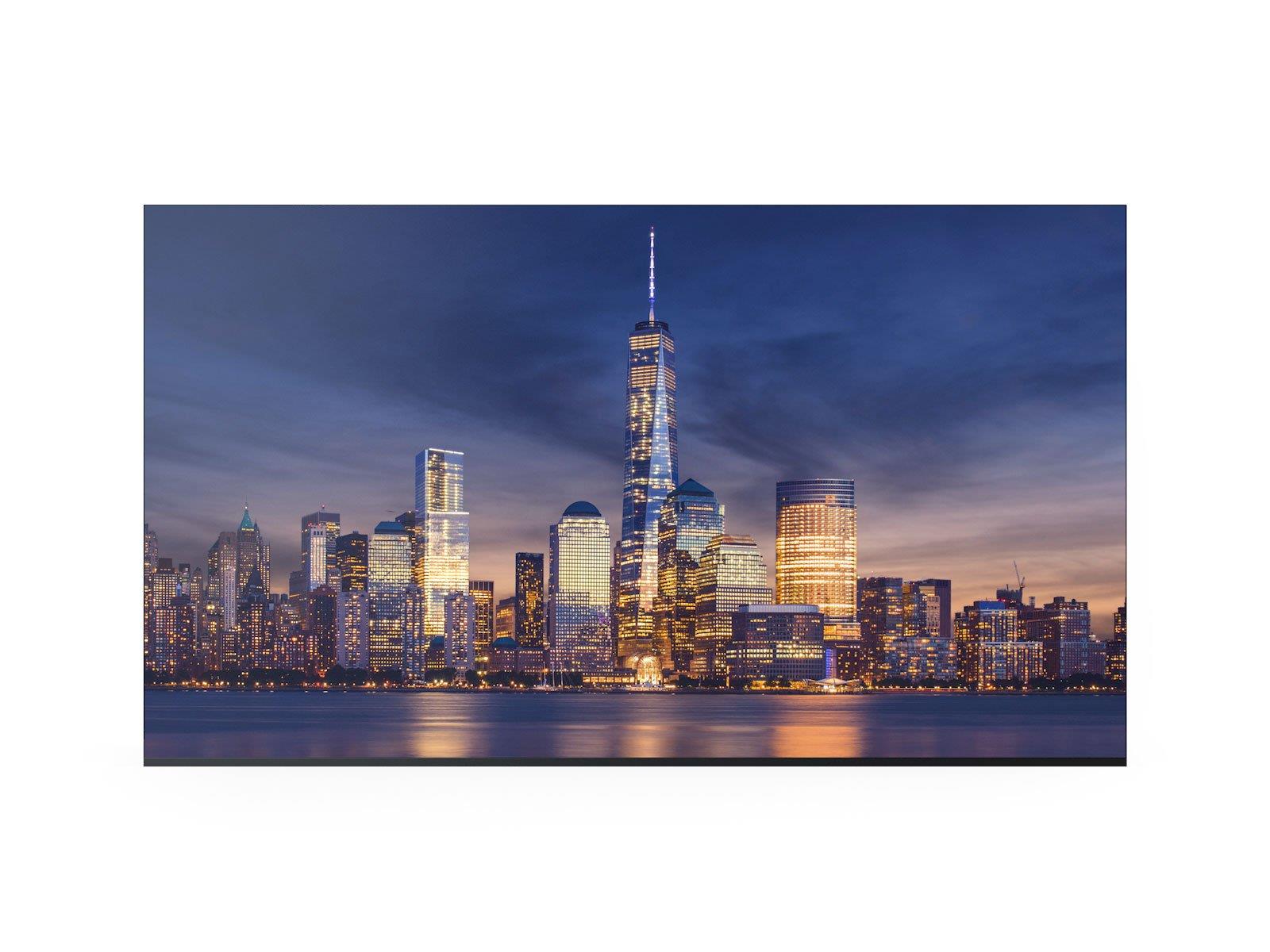

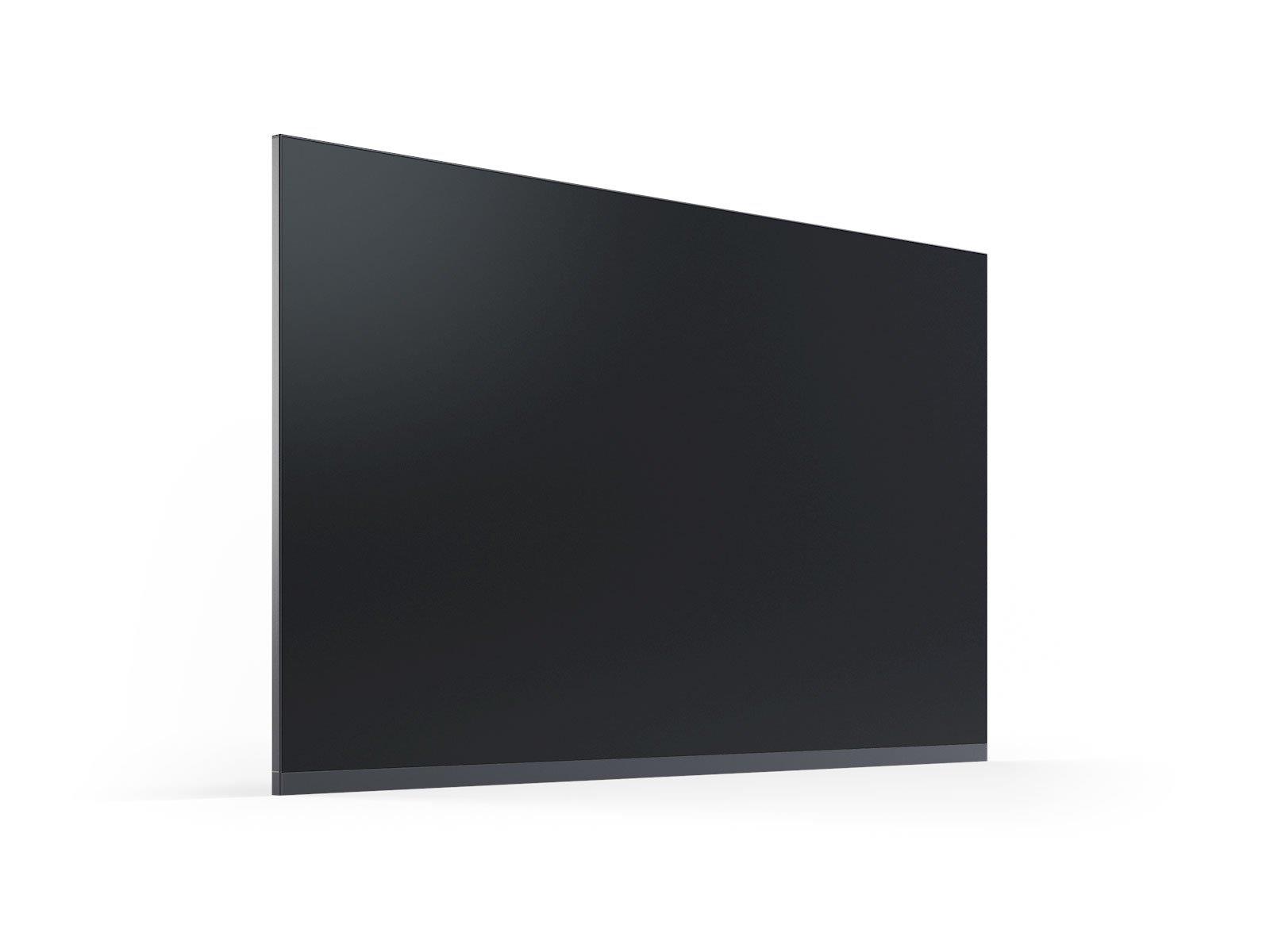

Bring the brilliance of fine-pitch LED to value-driven environments, without compromising on performance. Purpose-built for corporate meeting rooms and digital signage, the Sharp E Series delivers vivid content clarity and brightness for excellent visibility.
Available in standard-size bundles, it includes all the components needed for seamless integration of large format displays, free from distracting bezels. The slim, lightweight design supports easy installation, either wall-mounted or free-standing, while front access to all components simplifies maintenance. A durable metal chassis ensures long-term reliability, in line with Sharp’s reputation for engineering quality.
An SoC-based controller enables wireless content sharing and seamless connectivity with external devices. Whether presenting or collaborating, the E Series supports intuitive operation and minimal setup.
Designed to meet the demands of modern visual communication, the E Series combines professional-grade performance with streamlined deployment, bringing high-impact LED to a broader range of applications.
Benefits
- Low-profile integration – the super slim and light weight modules align with perfection to create a large digital canvas which integrates unobtrusively into any environment.
- Front serviceable modules – with front access to the LED modules, maintenance is easy.
- Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.
- Care-free installation – with bundled solutions that deliver all you need to get your LED video wall up and running.
Näyttö
- Image diagonal
- 135 "
- Display Resolution
- 1920x1080
- Pixel pitch
- 1,5 mm
- Diode Type
- 3-in-1 SMD (Black), SMD 1010
- Refresh rate
- 3 840 Hz
- Brightness (Max)
- 600 Nits
- Viewing angle
- 140 ° horizontal / vertical
LED Module/Cabinet
- No. cabinets/display (WxH)
- 5x5
- No. modules/cabinet (WxH)
- 4x1
- Cabinet Resolution
- 384x216
- Module Resolution
- 96x216
Connectivity
- Video in
- 3G-SDI, DVI-D, HDMI
- Ethernet
- Kyllä
Energy
- Consumption Max/m2
- 617 W
- Consumption Max tot.
- 3 125 W
Mitat ja Paino
- Width
- 3 012 mm incl. powerbar
- Height
- 1 743,5 mm incl. powerbar
- Depth
- 50 mm incl. powerbar
- Net weight
- 154,1 kg incl. powerbar
Additional information
- Service access
- Front Service
- IP Classification
- IP20
- Operating Temperature min
- −20 Celsius
- Operating Temperature max
- 40 Celsius
- Included Accessories
- 1x LED Controller; LED Modules (25 Cabinets, 100 Pixel Cards); Overframe Kit (5x5); Pixel Card Removal Tool; Powerbar (depending on version); Spare Parts Kit; Wall mount (5x5)
- Warranty
- 2 vuotta
Paketin tiedot
- Paketin mitat
- 1 200 x 800 x 800 mm
- Paketin paino
- 100,00 kg
