Stand out from the crowd
Your versatile and easy-to-set-up 18/7 display

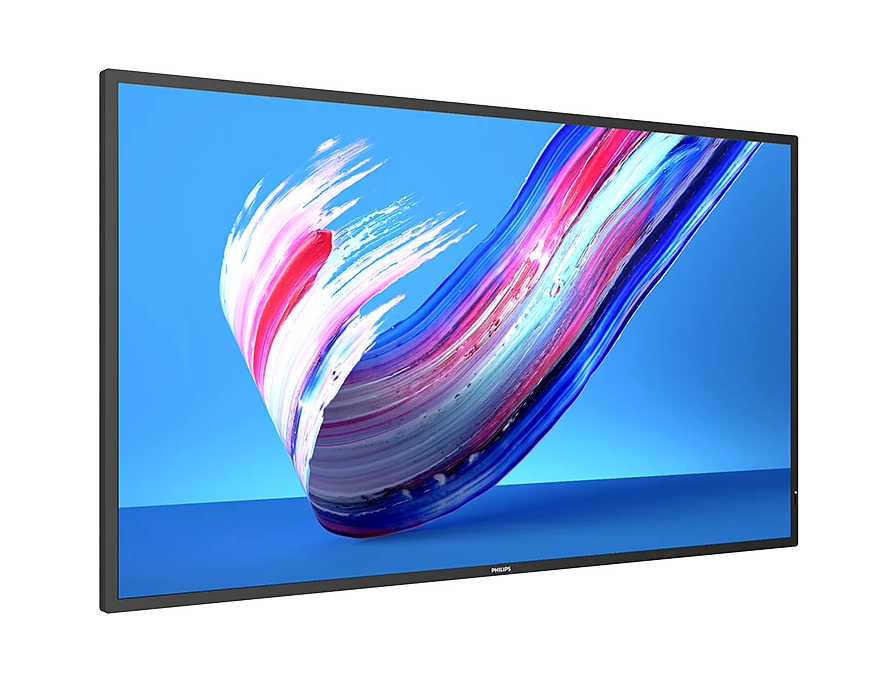

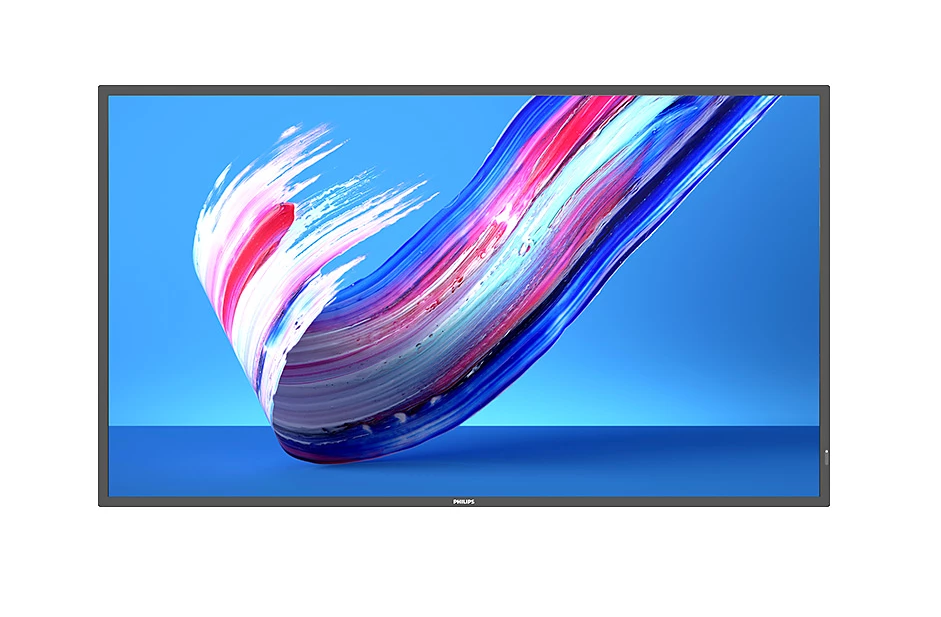

Inform and enthral with a Philips Q-Line 4K Ultra HD digital display. This reliable, easy-to-install, Android-powered signage solution is Wave-ready for remote management, putting you in full control, any time, anywhere.

Connect and control your content via the cloud
Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect either a single display or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the Internet using WiFi or with an RJ45 cable, and enjoy your own curated playlists.

FailOver. Ensure your display never goes blank
Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content onscreen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Easily schedule content from a USB or internal memory
Easily schedule content to play from a USB or from internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Optional Interact for wireless screen share
Wirelessly screen share using your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting into the secured network.

Android SoC processor. Native and web apps
Powered by our Android 10 SoC platform, these hardworking Philips professional displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring display specs stay up to the moment for longer.

Catch the Wave for revolutionary results
Unlock the power, versatility and intelligence inside your Philips Q-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.



Display

Operating Hours
18/7
Image diagonal
55 "
Resolution
3840x2160
Brightness
400 Nits
Haze value (%)
2
Portrait
Kyllä

Functions

Protective Glass
Ei
Videowall
Ei
Outdoor use
Ei
TV Tuner
Ei
Built-in speaker
Kyllä 2x 10W
Mediaplayer
Integrated Android Android 10 with Quad-Core Cortex A55 CPU, 3GB/16GB
Mediaplayer
OPS-Slot , USB mediaplayer

Connections

Video in
DVI-I x1
Video in
HDMI x2
Audio inputs
3,5mm tele x1
Audio outputs
3,5mm tele x1

Communication

Ethernet
Kyllä
Wi-Fi
USB-dongle (accessory) CRD22 Wi-Fi module (optional)
Wireless image sharing
Kyllä Screen sharing or optional HDMI dongle

Energy

Power Supply
AC 100-240 V; 50-60 Hz Internal Power Supply
Consumption Stand-by
0,5 W
Consumption Typical
111 W
Energialuokka
G

Dimensions and weight

VESA mount interface (mm)
400x400 M6
Width
1 241,8 mm
Height
712,6 mm
Depth
63,6 mm
Net weight
16,6 kg

Additional information

Included Accessories
IR sensor cable (1.8m), RS232 daisy-chain Cable, Philips logo, AC Power Cord, AC Switch Cover, Cable clip (x2), HDMI cable (1.8m), Quick start guide, Remote control & AAA batteries, RS232 Cable, USB Cover
Warranty
3 vuotta

Paketin tiedot

Paketin mitat
1 350 x 140 x 800 mm
Paketin paino
20,20 kg
