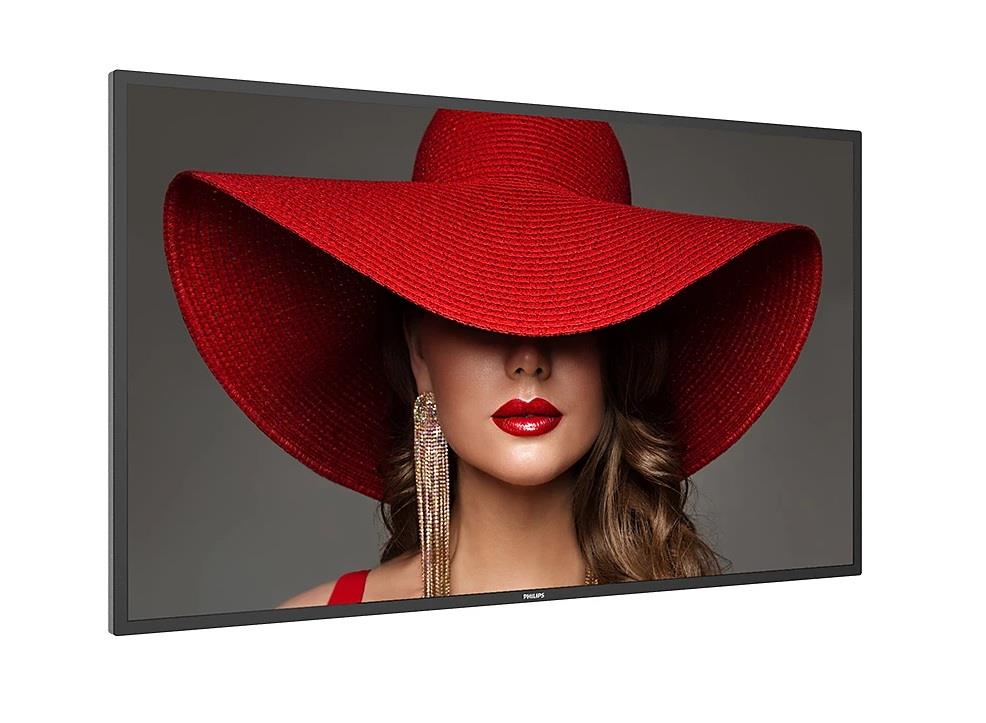

Signage Solutions D-Line Display

Smart, fast 24/7 display.
Make it stand out with a fast Philips D-Line Professional FHD display. Philips superb
picture quality ensures true colors and intense contrast. You can effortlessly display
content from multiple sources on a single screen.

Operational flexibility
• SmartPower for energy saving

Brilliant picture. Blazing processor speed
• Full HD. Clear images. Crisp contrast
• Place in landscape or portrait orientation
• ADS wide-view panel display

Effortless setup. Total control
• Operate, monitor and maintain with CMND & Control
• Schedule what you want, when you want with SmartPlayer

Cost-effective system solution
• Energy-saving automatic backlight control
• FailOver ensures content is always playing



Display

Operating Hours
24/7
Image diagonal
55 "
Resolution
3840x2160
Brightness
500 Nits
Haze value (%)
25
Portrait
Kyllä

Functions

Protective Glass
Ei
Videowall
Ei
Outdoor use
Ei
TV Tuner
Ei
Built-in speaker
Kyllä 2x 10W
Mediaplayer
USB mediaplayer For image, video, audio

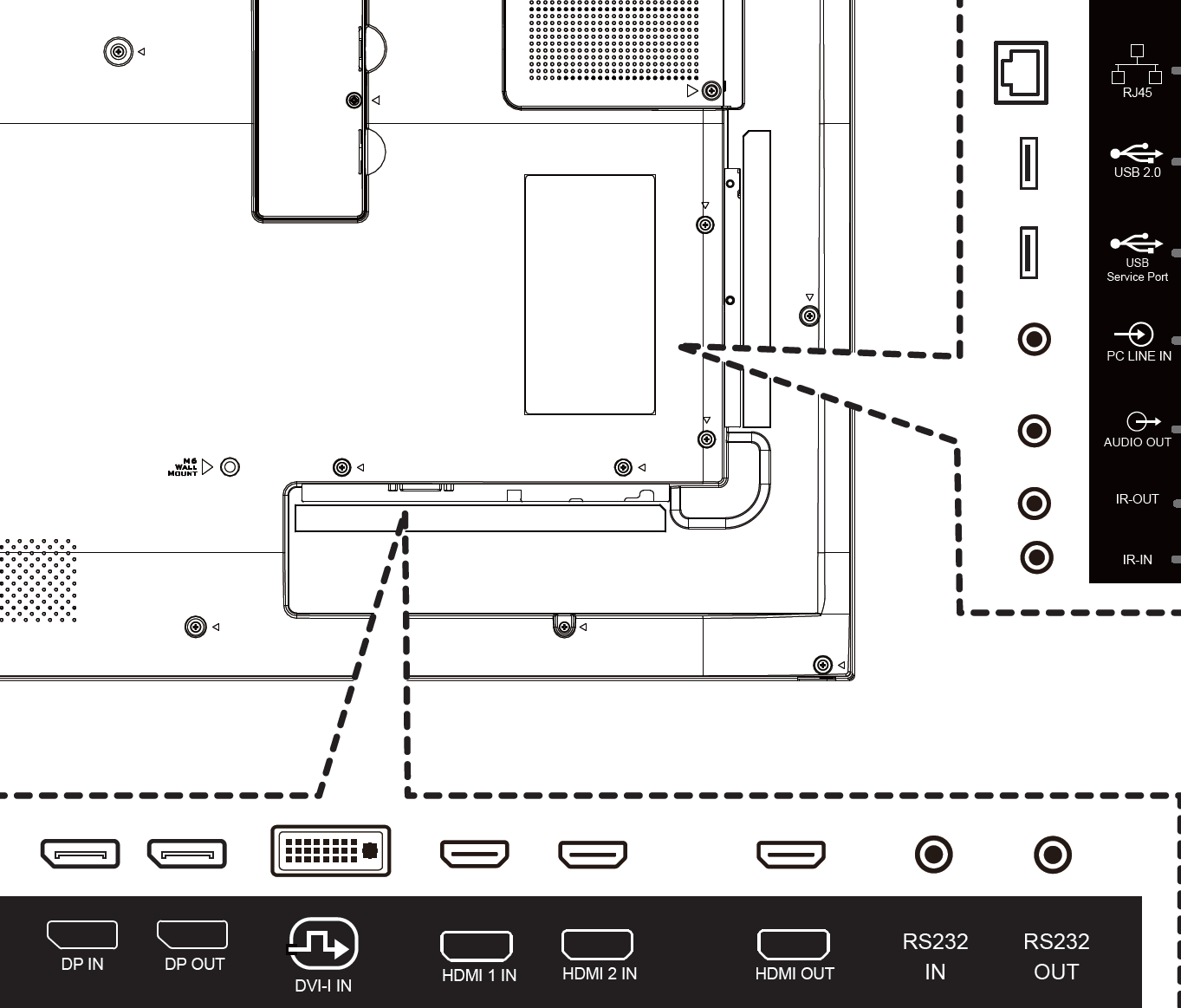

Connections

Video in
DisplayPort x1 (DP 1.4)
Video in
DVI-I x1 (VGA via adapter)
Video in
HDMI x2 (HDMI 2.0)
Video out
DisplayPort x1 (DP 1.4)
Video out
HDMI x1
Audio inputs
3,5mm tele x1
Audio outputs
3,5mm tele x1

Communication

Ethernet
Kyllä
Wi-Fi
No

Energy

Power Supply
AC 100-240 V; 50-60 Hz Internal Power Supply
Consumption Stand-by
0,5 W
Consumption Typical
135 W
Consumption Max
278 W
Energialuokka
G

Dimensions and weight

VESA mount interface (mm)
400x400 M6
Width
1 241,8 mm
Height
712,6 mm
Depth
63,6 mm
Net weight
16,6 kg

Additional information

Included Accessories
Philips logo (x1), AC Power cord, AC Switch Cover, IR sensor cable (1.8 m) (x1), Quick start guide (x1), Remote control & AAA batteries, RS232 cable, RS232 daisy-chain cable, USB Cover and screw x1, Wire Clamper (x3)
Warranty
3 vuotta

Paketin tiedot

Paketin mitat
1 340 x 30 x 800 mm
Paketin paino
20,95 kg
