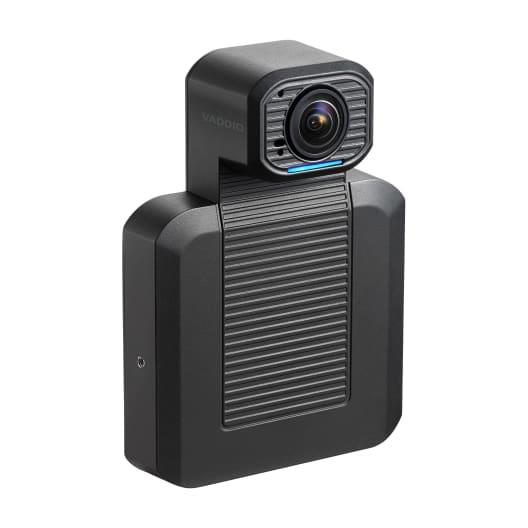

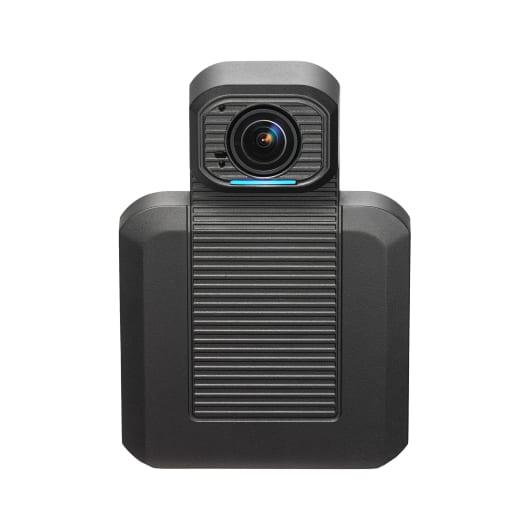

The ConferenceSHOT ePTZ auto-framing camera for videoconferencing makes collaborating easy. Vaddio’s ConferenceSHOT ePTZ delivers a dynamic, hands-free video experience that recreates the one-to-one videoconference experience perfect for hybrid working environments. The unique custom settings included with the camera make it ideal for enterprises that want professional-quality video for various meeting room environments.

Key Features:

  • Intelligent Framing algorithms keep your participants in view
  • 5x zoom with a 129° horizontal field of view
  • Simultaneous USB 3.0, HDMI and H.264 IP Streaming(RTSP or RTMP)
  • Integrated omnidirectional microphone with built-in Acoustic Echo Cancellation (AEC)
  • Balanced audio line in and out
  • Three custom settings for auto-framing sensitivity and ability to mask high-traffic areas from auto-framer
  • Free Vaddio Deployment Tool for remote management, updates and more

The ConferenceSHOT ePTZ USB camera has a wide 129° field of view, making it perfect for small collaboration rooms and huddle spaces. The small camera is equally suited to areas where employees are socially distant, and you want to ensure everyone is in view. The built-in microphone is a convenient feature when mounting the ConferenceSHOT ePTZ on mobile display carts or in huddle rooms. Upgrade your old PTZ cameras and use existing room audio systems with the audio I/O ports located on the bottom of the camera – a budget-friendly solution for updating outdated meeting rooms.

When setting up the camera, select one of three primary settings for how sensitive you want the camera auto-framing to be.

Conservative Conference is designed for low-motion environments, where little tracking action is needed. This mode is perfect for locations with glass walls or near busy walkways with visual background noise.

Responsive Conference is the perfect option when you have teams that utilize the whole room – like collaborating on whiteboards or brainstorming at flipcharts and want their remote colleagues to stay right with the action. This mode quickly adjusts the image to include people entering and exiting the meeting space.

Default Conference is the sweet spot where most teams are happy with the system performance.

The camera comes with a wall mount that allows the camera to tilt up and down to ensure proper framing of the conference table. The camera has a USB 3.0 Type C port, HDMI and audio I/O to easily integrate with existing room audio systems. The camera also has built-in RTSP and RTMP streaming capabilities for one-button streaming to popular services like YouTube, Facebook, Twitch, Vimeo and more.

The ConferenceSHOT ePTZ auto-framing camera is a simple plug-and-play video and audio peripheral with popular conferencing clients like Microsoft Teams, Zoom, and Google Meet. It is a professional camera at heart. At Vaddio, we pride ourselves on our superior image and product quality, custom control settings, and free remote management. AV and IT managers love the option of customizing camera performance for different environments and meeting types, mass firmware updates, video stream preview for troubleshooting, and free local technical support without any service contracts.



General

Camera type
Fixed Optic (EPTZ) Roomcamera
Color
Musta
Certifications
USB BYOD

Image specification

Max Resolution (Out)
1920x1080
Framerate
30 FPS
Optical zoom
0 x
Digital zoom
5 x
Field of view (horizontal)
129 °
Signal-to-noise ratio
50 dB More than
Min. illumination
100 Lux
Min. working distance
250 mm

Functions

Programmable presets
Kyllä 16 + Home
Ceiling installation/Flip image
Kyllä
Auto framing/tracking
Kyllä IntelliFrame with three custom settings for auto-framing sensitivity and ability to mask high-traffic areas from auto-framing

Audio specification

Built-in microphone
Kyllä Omnidirectional microphone with built-in Acoustic Echo Cancellation (AEC)
External microphone
Kyllä Via balanced line in port
Audio pickup range
3 m
Built-in speaker
Ei
External speaker
Kyllä Via balanced line out port

Connections

Video out
HDMI 1.4
Video out
IP stream (RJ-45) H.264 IP Streaming(RTSP or RTMP)
Video out
USB-C
USB standard
3.0 Compatible with USB 2.0
Audio inputs
Euroblock line Balanced
Audio outputs
Euroblock line Balanced

Energy

Power Supply
PoE (Injector included)

Mitat ja Paino

Width
119,9 mm
Depth
55,1 mm
Height
175 mm
Net weight
0,88 kg

Additional information

Included Accessories
Camera, Wall mount, mnt hardware, Cable cover, 1.8m USB 3.0 cable C-A, PoE injector, IR Remote, 1m Cat-5e cable
Warranty
3 vuotta With 1 year Advance Replacement

Paketin tiedot

Paketin mitat
350 x 300 x 180 mm
Paketin paino
4,10 kg
