SIMPLY45-CAT6

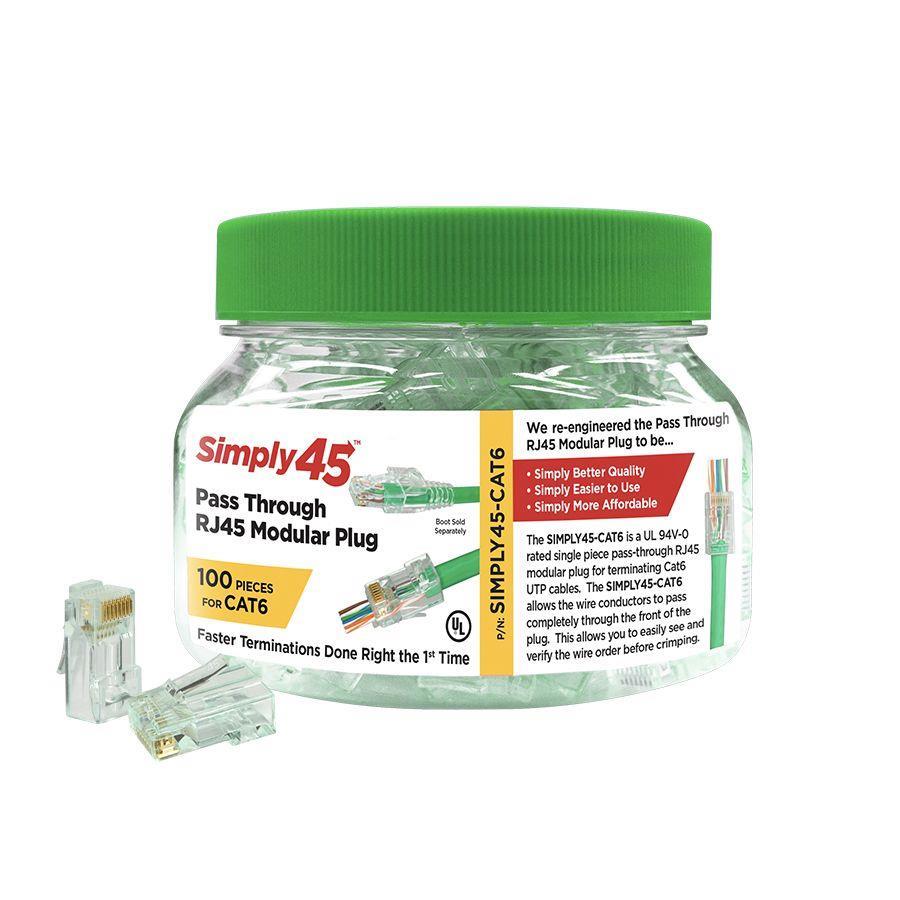

SIMPLY45 RJ45 PASS THROUGH MODULAR PLUGS FOR 23AWG (max 1.05mm) CAT6 UTP/ HNCPROPLUS UTP CABLES, UL94 V0 CMP/CMR/CM/LSZH-B2ca to Eca- 100 PCS PER PLASTIC JAR

Pass Through RJ45 Modular Plug - Faster Terminations Done Right the 1st Time

Simply45 re-engineered the Pass Through RJ45 Modular Plug to be...
• Simply Better Quality
• Simply Easier to Use
• Simply More Affordable

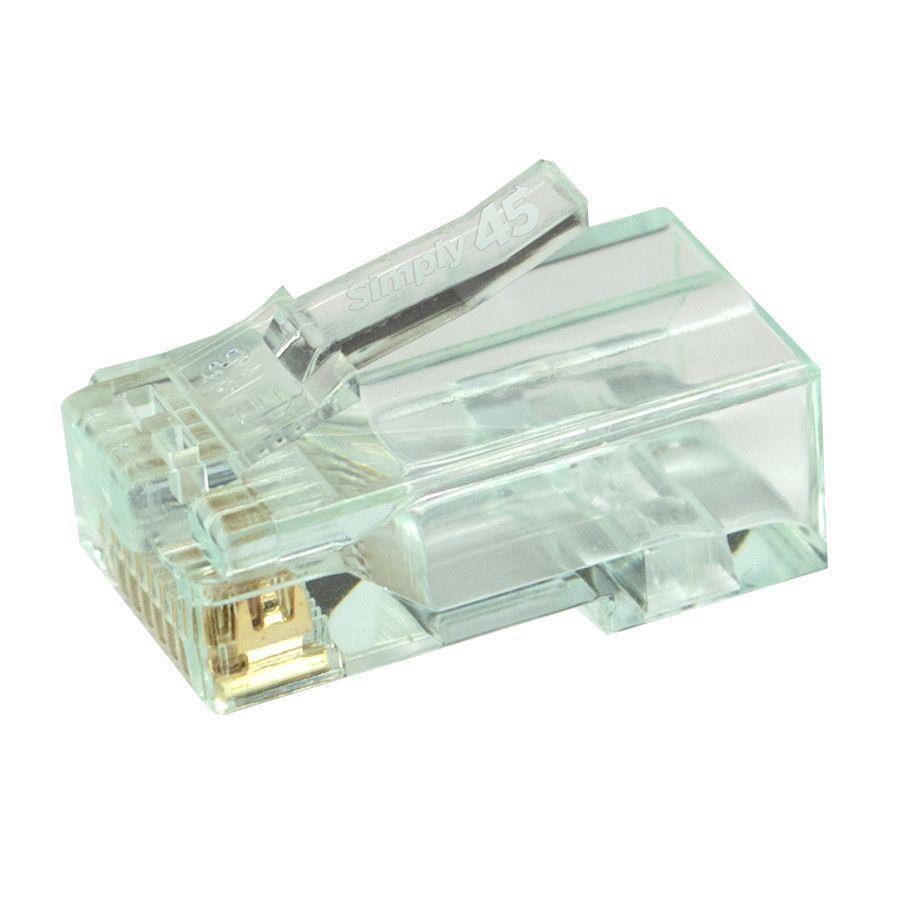

The SIMPLY45™ is a translucent single piece RJ45 that allows Cat6 twisted pair wire conductors to completely pass through the plug and out the front.

This allows you to easily see and verify the wire alignment order before crimping.

USA Designed, TAA Compliant

  • Performance: Meets or Exceeds ANSI/TIA 568-C.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7 Cat6 UTP Wire Cond(s) OD: 23AWG, Up to 0.43” (up to 1.10mm)
  • Max Cable Outer Diamter UTP: 0.276'' (6.10mm)
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: CMP Plenum, CMR, CM, CMX, LSZH EN50575:2014 up to B2ca-s1a,d1,a1
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40º C to +70º C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms max
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps Compliance: UL Listed, RoHS, FCC, NEC


General

Category
Cat 6
Shielded
Ei
Shielding
U/UTP

Additional information

Color
Läpinäkyvä
Units per package
100 pcs. in Plastic Jar

Paketin tiedot

Paketin mitat
91 x 93 x 93 mm
Paketin paino
201 g
