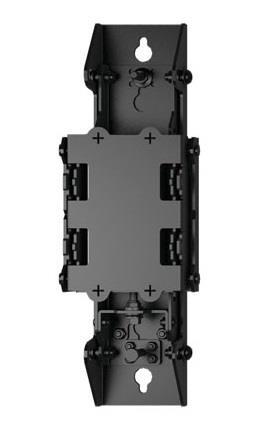

The FMSWM Fusion Wall Attachment, Height-Adjust Plate attaches the extrusion to the wall and allows adjustments to height and depth of the menu board.

**Maximum Weight Allowed FMSWM / FMSWA

  • 90.7 kg 16" on-center wood studs, or concrete installations
  • 56.7 kg 16" on-center steel or wood studs with 3/4" plywood overlay
  • 34.0 kg 16" on-center steel studs


General

Mounting solution
Wall
Color
Musta
Material
Steel

Mitat ja Paino

Max weight capacity
90,7 kg On-center wood studs or Concrete walls
Width
90,2 mm
Height
387,4 mm
Depth
98,3 mm

Additional information

Warranty
10 vuotta

Paketin tiedot

Paketin mitat
520 x 260 x 171 mm
Paketin paino
5,45 kg
