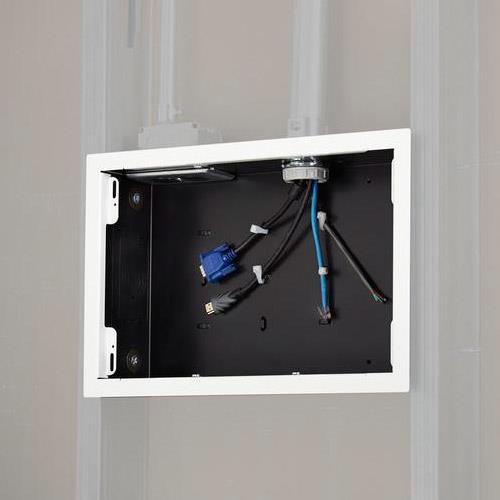

The PAC525FW simplifies flat panel installation by providing an organized, recessed space for routing excess cables and for attaching surge protectors/power conditioners. The addition of the flange adds an aesthetic trimmed appearance and drywall mounting capability.
Compatible with the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts.

Key Features:

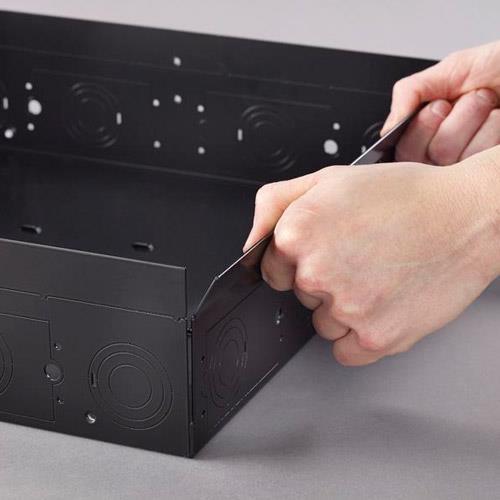

• Multiple depth break away edge allows compatibility with standard 3.5" studs & 2.5" studs
• Pre and post construction installation options
• Drywall and stud mountable
• Knockouts for single gang outlets and 1-1/4", 1", & ½"conduit
• Integrated universal zip tie anchor points
• Landscape/Portrait installation
• Stores a large variety of AV components
• Paintable flange to blend in any environment
• Black & white color options



General

Color
Valkoinen
Material
Steel

Mitat ja Paino

Max weight capacity
4,53 kg
Width
391 mm
Height
261 mm
Depth
98 mm

Additional information

Warranty
10 vuotta

Paketin tiedot

Paketin mitat
495 x 368 x 124 mm
Paketin paino
3,84 kg
