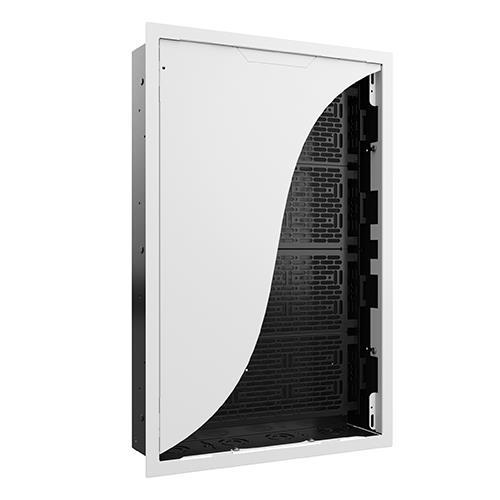

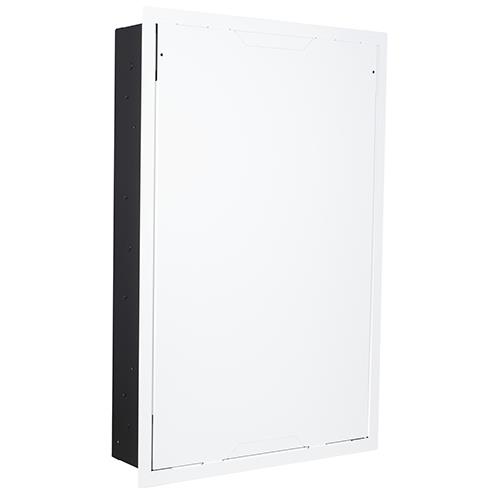

The new PAC527LFC now includes two large tool-free Lever Lock™ plates for quick installation of AV equipment and efficient servicing of the system. Lever Lock™ plates can be mounted on four different levels to easily organize and layer components within the in-wall box. The PAC527LFC also includes a paintable black flange and cover to blend into any space aesthetics.

Lever Lock™ plates are compatible with Middle Atlantic Products’ Forward Cable Management Solutions.
Optionally also include one of the following power protection options:

  • Two outlet Power Filter Kit PACPC1
  • Four outlet Power Filter and Surge Protection Kit PAC527P4-KIT
  • Six outlet Power Filter and Surge Protection Kit PAC527P6-KIT
  • Two outlet IP controlled Select Series Compact PDU with RackLink™ from Middle Atlantic Products

Key Features

  • Multiple depth break away edge allows compatibility with standard 3.5" stud and 2.5" stud bays (89 or 64 mm)
  • Provides a larger, easy-to-organize space to accommodate AV equipment - 22" (559 mm) tall
  • Pre- and post-construction installation options
  • Knockouts for single gang outlets and 1 ¼”, 1", and ½" conduit
  • Unmatched small device mounting flexibility built-in, with patented Lever Lock™ plates
  • Patented universal hole pattern simplifies mounting of small devices
  • Includes PACL2 Lever Lock™ plates mountable at four different depths in four different locations
  • Paintable black flange and cover to blend in any environment
  • Allows for AV devices to be mounted in advance before terminating cables on site
  • PACL2 plate can be snapped in half to create two smaller sections
  • Printable backplane template for planning purposes
  • Additional PACL2 Lever Lock™ plates can be purchased separately for even more mounting options
  • For electrical safety, Lever Lock™ plates are black zinc plated which allows them to be grounded to the in-wall box via the spring-loaded lever
  • Enclosure is UL 2416 Listed for installation of AV, IT & Communication Technology


General

Color
Valkoinen
Material
Steel

Mitat ja Paino

Max weight capacity
18,1 kg

Additional information

Warranty
10 vuotta
