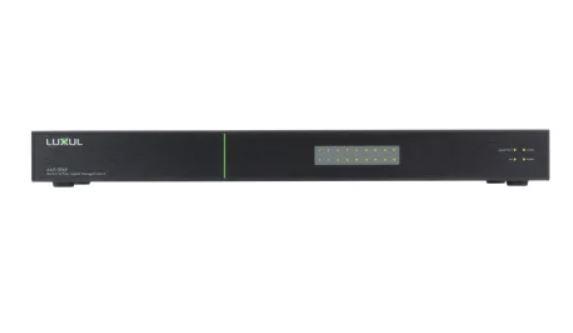

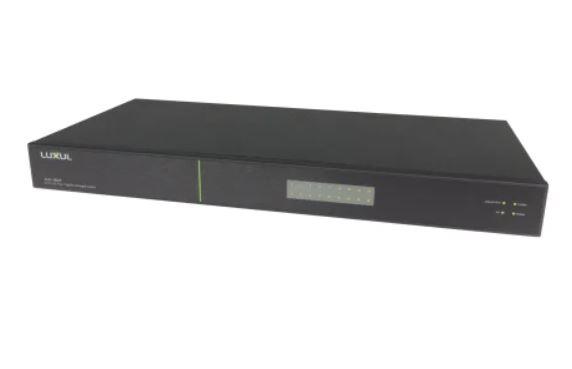

The EasyIP Switch (AMS-1208P) is preconfigured for use with Vaddio EasyIP products. The EasyIP Switch features rear panel ports and front facing LEDs (user selectable blue/green colors) for clean integration with AV rack systems. It is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras and Wireless Access Points. The switch includes 8 PoE+ ports, with a total power budget of 130 Watts. It also features 2 Gigabit RJ-45 and 2 Gigabit SFP ports for easy network expansion. The EasyIP Switch helps optimize your network with support for Layer 3 static routing between VLANs while also featuring simple-to-use management, VLAN and security capabilities to ensure optimal benefit from your home or office network.

Key Features:
• Seamlessly Integrate with AV Rack Systems
• Connect up to 8 PoE-Enabled Devices (Max Output 130 Watts)
• Optimize Your Network with VLAN, QoS and PoE Management
• Enhance Network Performance with Layer 3 Static Routing
• Simply Plug and Play

Features:
• Configured for use with Vaddio EasyIP Products
• PoE Self-Healing with auto-recovery and power scheduling
• 10, Gigabit RJ45 Ports
• 2, Gigabit SFP ports
• 8 Ports Support 802.3af/at PoE+ with 130 Watt Power Budget
• 24Gbps Switching Capacity
• Layer 3 Static Routing
• 802.1Q VLAN (with Trunking) and QoS Support
• Plug-and-Play Installation with Intuitive Management
• Simple Power Management of PoE-Enabled Devices
• User Selectable Green or Blue Front facing LEDs
• Fanless for Silent Operations
• Standard 19” Rack-Mount
• Three Year Limited Warranty
• The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)

This Package Includes:

  • 12-port/8 PoE+ Gigabit Managed Switch or 18-port/16 PoE+ Gigabit Managed Switch. Please contact customer service for which unit is currently shipping.
  • Power Cord
  • Rack Mount Kit
  • Quick Install Guide


Managed
Kyllä Browser-based User Interface for Remote Control

General

Form factor
19" Rack, 1U, Desktop
Switching capacity
24 Gbit/s
Primary Port Speed
1 Gbit/s
Primary Ports
10 x
SFP Ports
2 x

Features

PoE
Kyllä
PoE Ports
8 x
PoE Budget
130 W
Switch stacking
Ei

Mitat ja Paino

Width
442 mm
Depth
211 mm
Height
44,5 mm
Weight
2,7 kg

Additional Information

Power consumption
168 W Max
Warranty
3 vuotta

Paketin tiedot

Paketin mitat
90 x 520 x 300 mm
Paketin paino
3,92 kg
Viivakoodi
840077505974
