POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster.
Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY

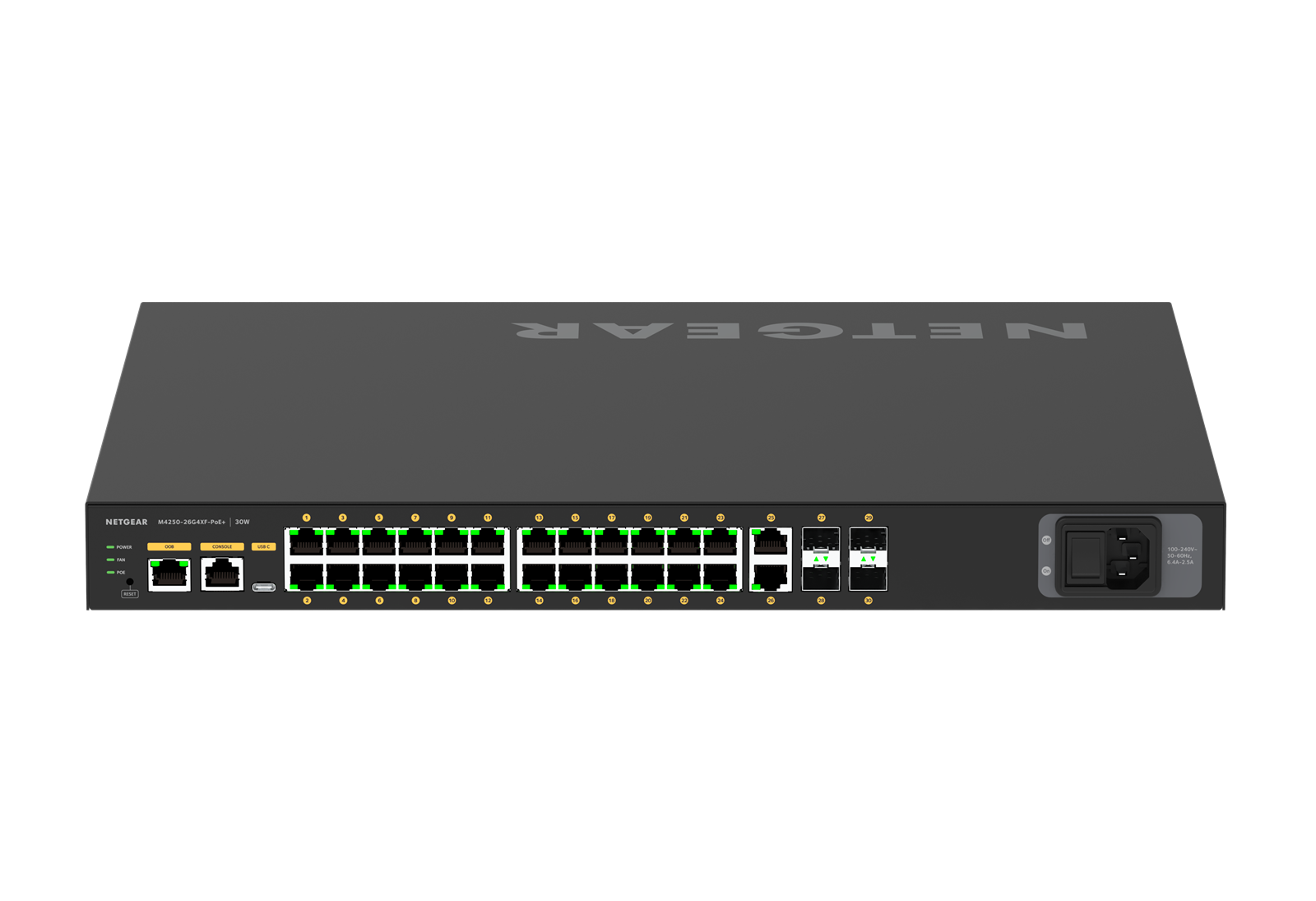

Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

MAXIMIZE PERFORMANCE WITH NETGEAR ACCESS POINTS
Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points.



Managed
Kyllä

General

Form factor
19" Rack, 1U
Switching capacity
132 Gbit/s
Primary Port Speed
1 Gbit/s
Primary Ports
26 x
SFP Ports
4 x

Features

PoE
Kyllä
PoE Ports
24 x
PoE Effect/Port
30 W
PoE Budget
480 W
Switch stacking
Ei
IGMP Support
Kyllä Enhanced (NETGEAR IGMP Plus™)

Mitat ja Paino

Width
440 mm
Depth
400 mm
Height
43,2 mm
Weight
5,45 kg

Additional Information

Power consumption
614 W With PoE
Included Accessories
Power cord(s), Console USB Type-C and RJ45-DB9 cables, Rack-mounting standard brackets, Longer brackets for recessed mounting, Rubber footpads for tabletop installation, Installation guide

Paketin tiedot

Paketin mitat
125 x 530 x 465 mm
Paketin paino
4,64 kg

Paketin tiedot kpl

Paketin mitat
550 x 375 x 520 mm
Paketin paino
18,00 kg
