The AG Neovo HIP-Series (HIP-TA + HIP-RA) HDMI over IP Extenders over single CAT6 for digital signage applications.
The AG Neovo HIP-Series HDMI over IP Extenders deliver 1080p HDMI A/V signals over long distances via a standard Gigabit network switch.
The HDMI over IP extenders allow HDMI equipment to be connected up to 120 meters (400 ft) away with a single Cat5e/6 cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint configurations are also supported by connecting several transmitters and receivers to the same network.
Recommended Switches:
- Manufacturer Model
- D-Link GDS-1510
- Zyxel GS1920 Series
- Cisco SG300, Catalyst 2960-X/XR
- Netgear GS724T, M4300-28G/52G
- H3C 5120 Series
- Edgecore Networks ECS-4120-52T
General
- Extender type
- Reciever (Rx)
- Non-stock Item
- Kyllä
Video specifications
- Max supported resolution
- 1920x1080
- Scaler
- Ei
Connections
- Video in

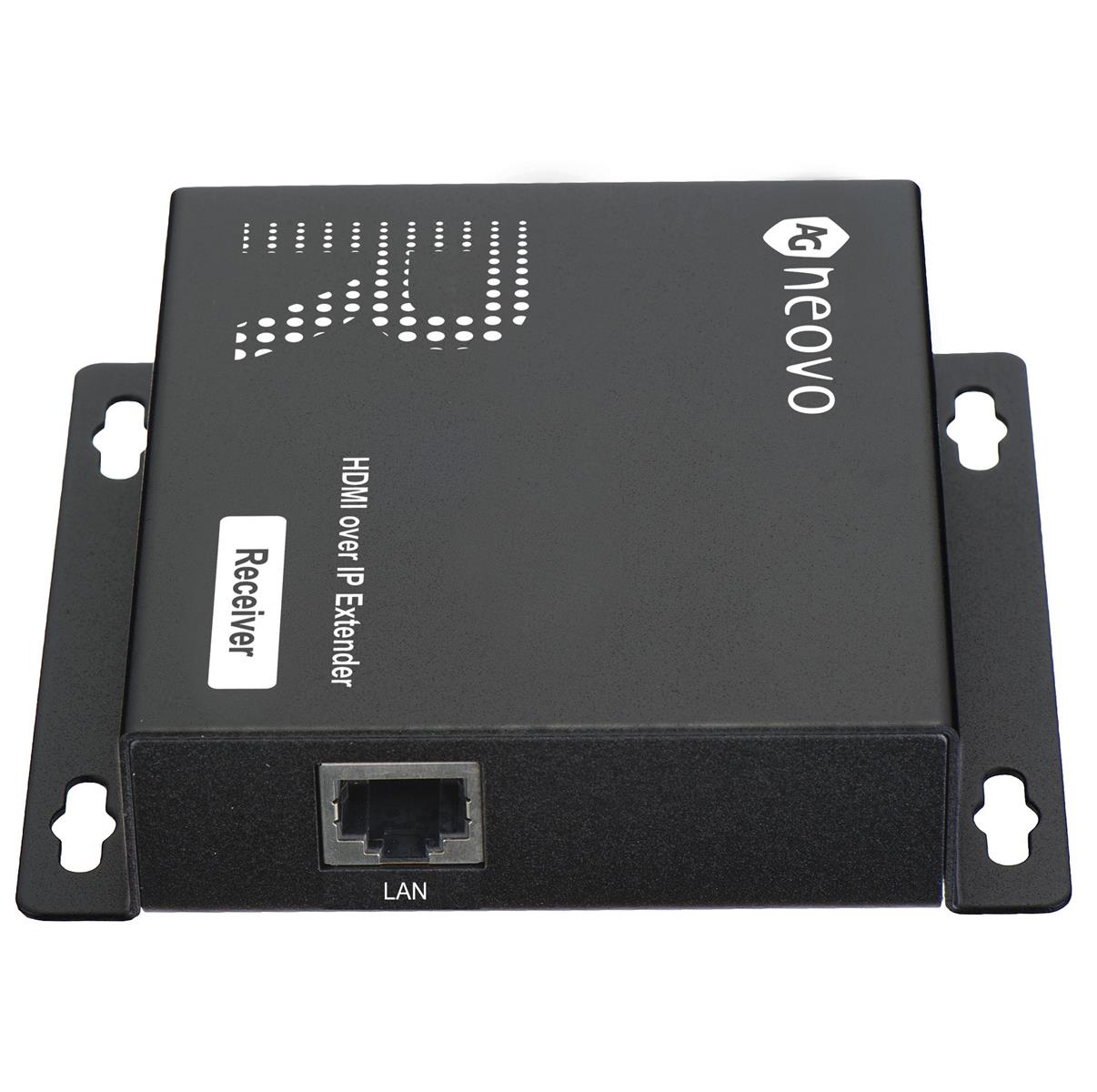

- IP stream (RJ-45) M JPG Compression
- Video out

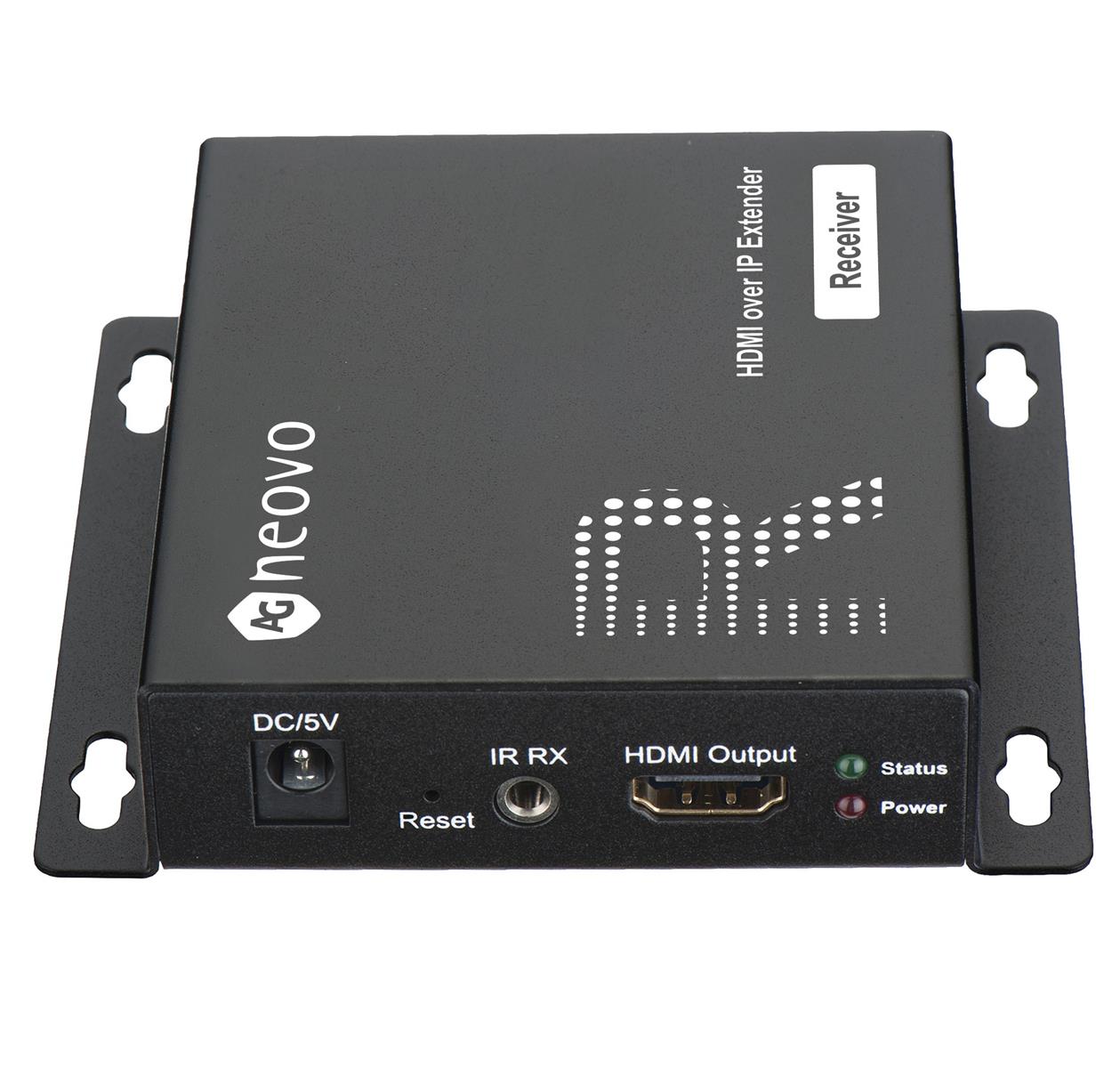

- HDMI 1.2
- Control
- IR cable connection Passthrough
- Control
- Web interface For configuration
- USB passthrough
- Ei
Communication
- Req. Network Switch
- Gigabit Switch w. Multicast forwarding, IGMPv2 Snooping and support for Jumbo frames. Bandwidth Approximately 90 Mbps
Energy
- Power Supply
- DC 5V/1A, ax 3W
Mitat ja Paino
- Width
- 93,5 mm
- Depth
- 103,5 mm
- Height
- 24,6 mm
- Net weight
- 0,22 kg
Additional information
- Installation
- Freestanding/Shelf, Wall
- Included Accessories
- HIP Receiver x 1 / Power Adapter x 1 / IR-RX Cable x 1 / User Manual x 1
Paketin tiedot
- Paketin mitat
- 103 x 94 x 25 mm
- Paketin paino
- 398 g
