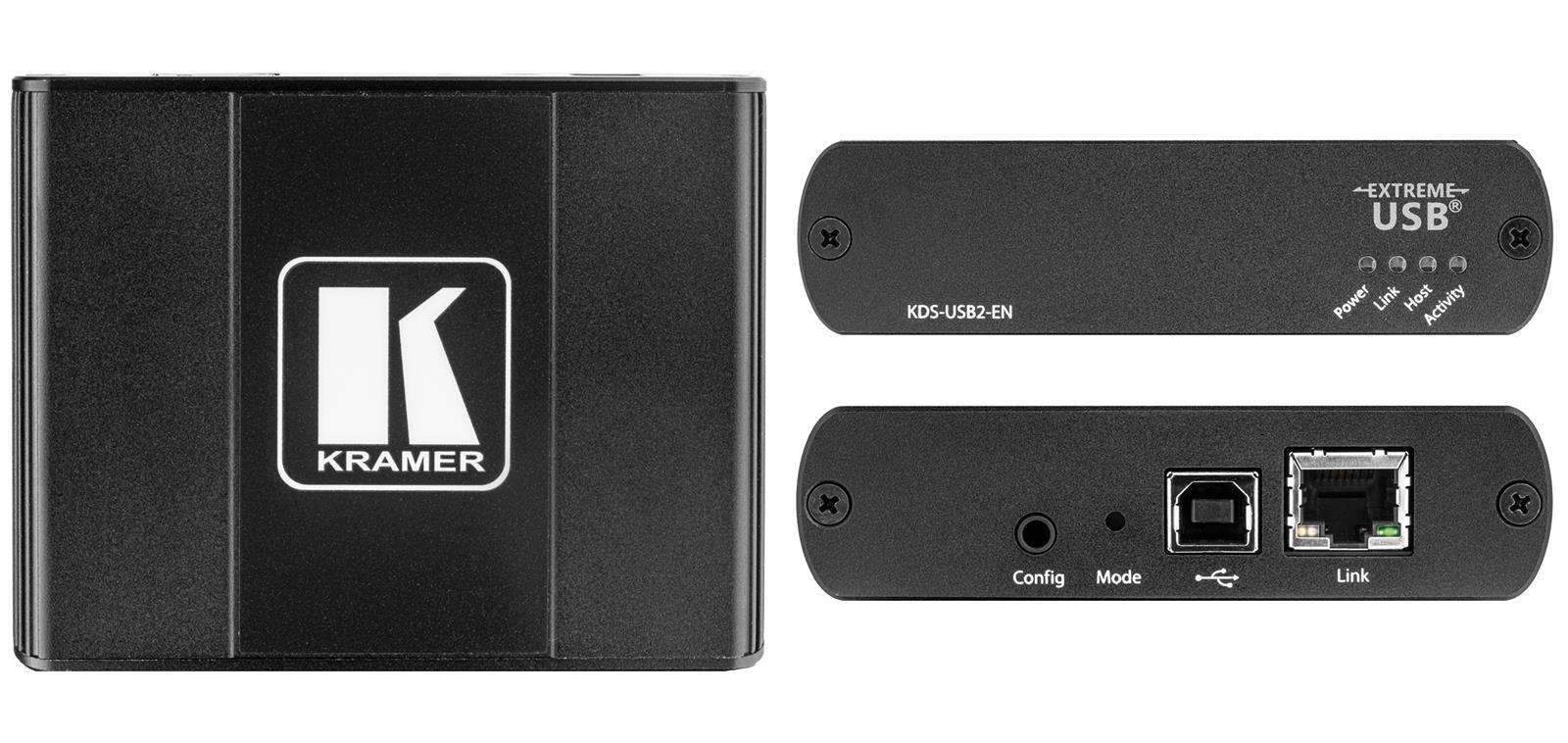

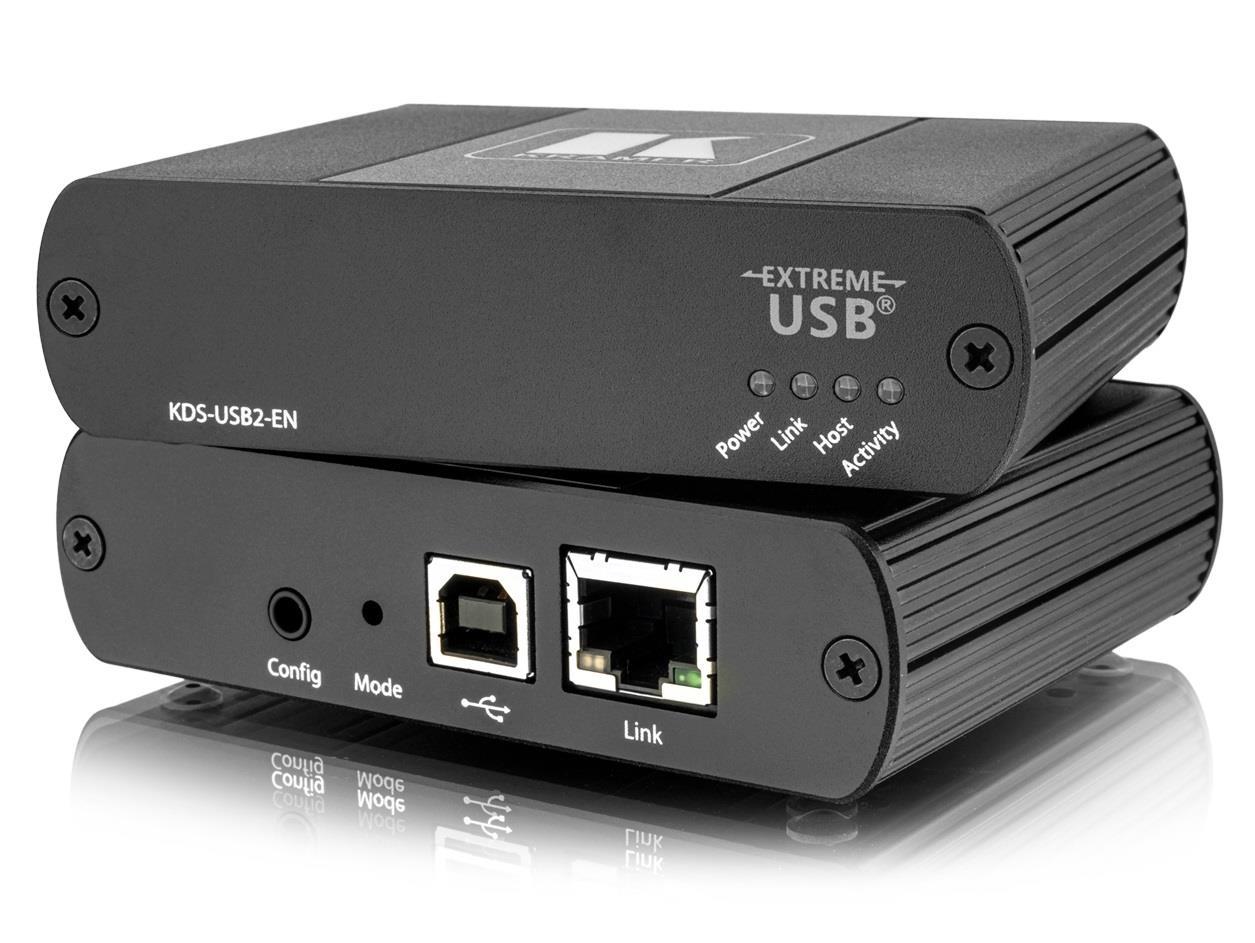

KDS−USB2−EN is a USB 2.0 high−speed encoder for extending USB signals between a host computer and any USB peripheral device such as a mouse, keyboard, display, camera, mobile device, media player, or hard drive. KDS−USB2−EN connects to a host computer enabling communication with the USB devices that are connected to a KDS−USB2−DEC decoder (sold separately).
KDS−USB2−EN can be paired with one KDS−USB2−DEC decoder for basic one−to−one USB extension, but with the purchase of additional units, you can diversify your USB extension system. For example, connect USB cameras in multiple locations to one computer or enable users in multiple locations to collaborate using the same host computer over a Local Area Network (LAN), in real time, using their own keyboards, mice and touch screens. Using Kramer’s cloud−based control platform, you can map and/or control these multi−unit setups.

Key Features:
High–Speed Extension — Extends USB 2.0 signals up to 100 m with CAT 5e/6/7 cables, and up to 10km with fiber optics cable. Achieves USB 2.0 throughput up to 480 Mbps point–to–point or over LAN.
Note: Use recommended Kramer cables for best performance.
Extend Multiple Devices — Connect to all 4 decoder ports simultaneously with 5 Volts, 500 mA available on each port.
Collaboration — Pair up to seven decoders to one encoder/host computer for extended, multi–location collaboration.
SwitchableUSB™ — Construct one–to–many and many–to–many unit setups using Kramer’s cloud–based control platform to manage the mapping and switch the connections.
Reliable and Certified — Passes all key USB–IF compliance tests and FCC/CE Class B certified.
True Plug and Play — No software drivers required.
Compatibility — Works with all major operating systems including Windows®, macOS™ and Linux®.

Applications:
• Meeting rooms
• Training facilities
• Collaborative classrooms
• Lecture halls
• Control Rooms
• Any space where USB 2.0 peripheral devices are required



General

Extender type
Transmitter (Tx)
Technology
Ethernet/LAN
Range (max)
100 m Direct Connect over solid core Cat 5e/6/7 cable

Features

USB standard
1.1, 2.0
Data transfer speed
480 Mbit/s
USB/Data connection from
USB-B
USB/Data connection to
Ethernet

Energy

Power Supply
Encoder Source: Host computer, Decoder Source: 24V DC adapter, 780mA

Measurements and weight

Width
95 mm
Depth
80 mm
Height
25,4 mm
Net weight
0,2 kg

Additional information

Application
Freestanding/Shelf
Included Accessories
1 USB2 type A male to type B male cable
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
350 x 210 x 70 mm
Paketin paino
352 g
