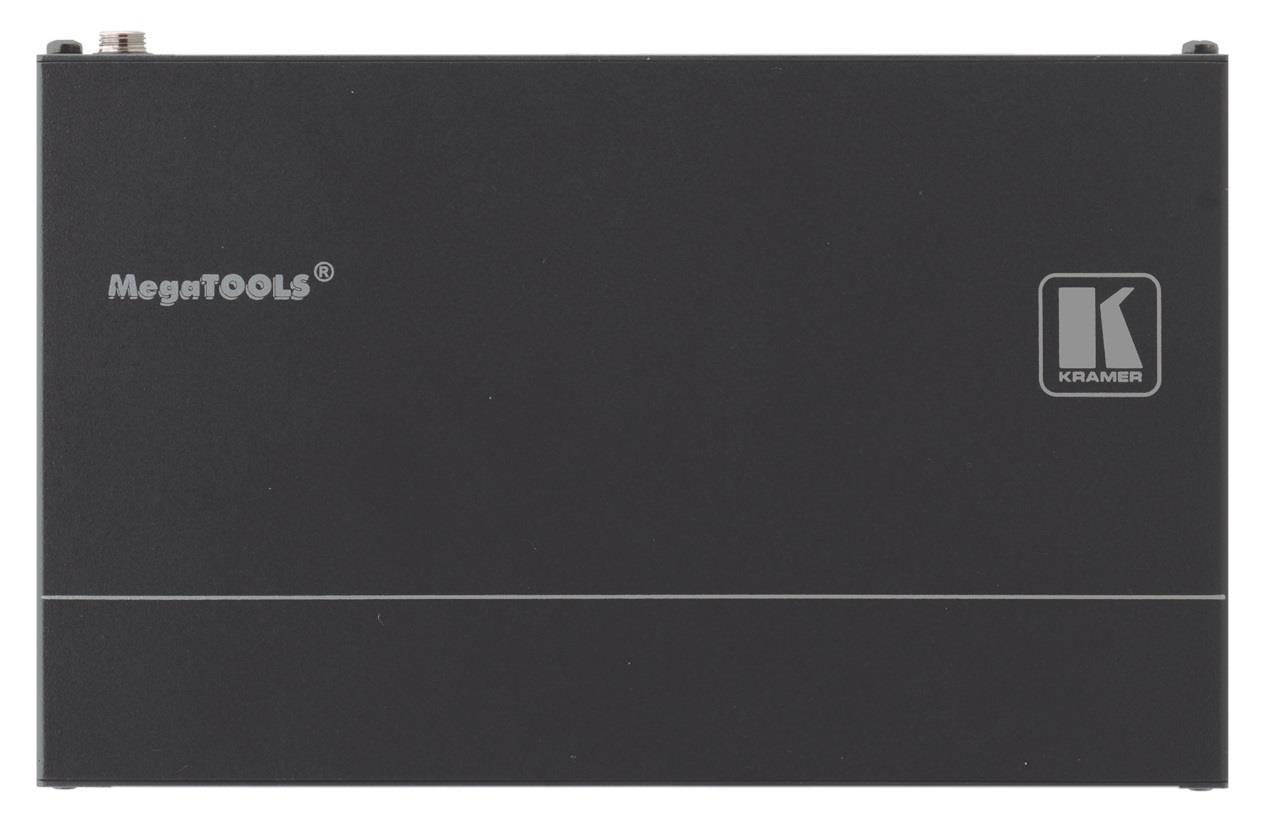

TP−590TXR is a high−performance, extended−reach HDBaseT 2.0 transmitter for 4K60Hz (4:2:0) HDMI, USB, Ethernet, RS−232, IR and stereo audio signals over twisted pair. The TP−590TXR converts all input signals into the transmitted HDBaseT 2.0 signal. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Key Features:

  • High Performance Standard Extender — Professional HDBaseT extender for providing extended–reach signals over twisted–pair copper infrastructures. TP–590TXR is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
  • HDMI Signal Extension — HDCP 1.4 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
  • Audio Embedding (Adding) — A selectable analog unbalanced stereo audio input is converted into a digital signal and embedded (added) to the transmitted HDMI signal, replacing the embedded HDMI audio input signal. This enables embedding a selectable audio source over HDMI. For example, a presenter can display a video clip and temporarily override the audio of the source media with another audio source, such as from a microphone.
  • USB Extension — USB 2.0 interface data flows in both directions, allowing extension of HID (Human Interface Devices) peripheral devices, such as a mouse or a keyboard. High–bandwidth USB peripheral devices, such as USB isochronous streaming cameras and audio devices, transfer data continuously and periodically. Delivery of their transferred data is not guaranteed by the USB standard and is subject to both USB and HDBaseT line bandwidth management limitations. When such devices are connected, check their functionality to ensure bandwidth limitations are not exceeded.
  • Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
  • Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
  • Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
  • Cost–effective Maintenance — Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Remote device management via built–in web UI and RS–232 connection. Local and remote firmware upgrade via mini–USB, RS–232 or Ethernet connection and the K–Upload tool ensure lasting, field–proven deployment.
  • Easy and Elegant Installation — Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.

Applications:

  • Long–distance AV, USB and LAN signal extension for multi–room, large dividable auditoriums and lecture hall connectivity
  • KVM extension in conference rooms, boardrooms, control rooms, hotels and large church facilities


General

Extender type
Transmitter (Tx)
Technology
HDBaseT 2.0
Range (Max)
180 m at 1080p 60Hz HDBaseT Ultra Mode, 100m at 4K 60Hz (4:2:0)

Video specification

Max supported resolution
3840x2160 10.2Gbps bandwidth (3.4Gbps per graphic channel)
Refresh rate
60 Hz
Chroma subsampling (4K)
4:2:0
Scaler
Ei

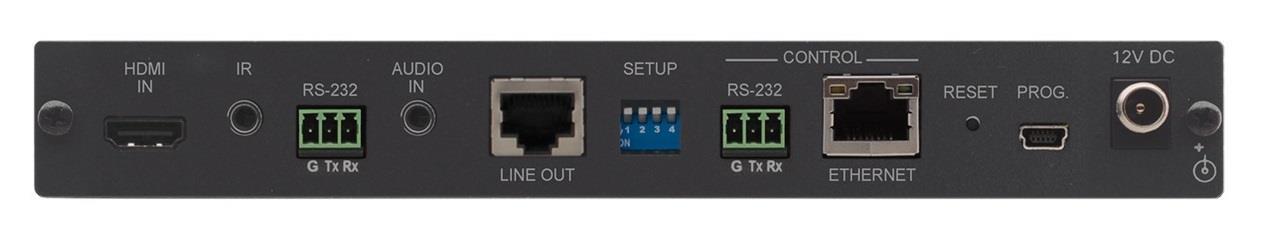

Connections

Video in
HDMI
Video out
HDBaseT (RJ-45) with HDCP 2.3 support
Audio inputs
3,5mm tele
Control
Ethernet/IP (RJ-45), IR cable connection, RS-232
USB passthrough
Kyllä 1.1 and 2.0 Host compliance

Energy

Power Supply
48V DC, 1.36A External Power Supply, Consumption: 48V DC, 800mA

Mitat ja Paino

Width
190,5 mm
Depth
115 mm
Height
27 mm
Net weight
0,5 kg

Additional information

Mounting
19" Rack, 1U With RK-T2B rack adapter (option)
Mounting
Freestanding/Shelf
Included Accessories
Power supply (12V, 2A)
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
350 x 160 x 60 mm
Paketin paino
960 g
