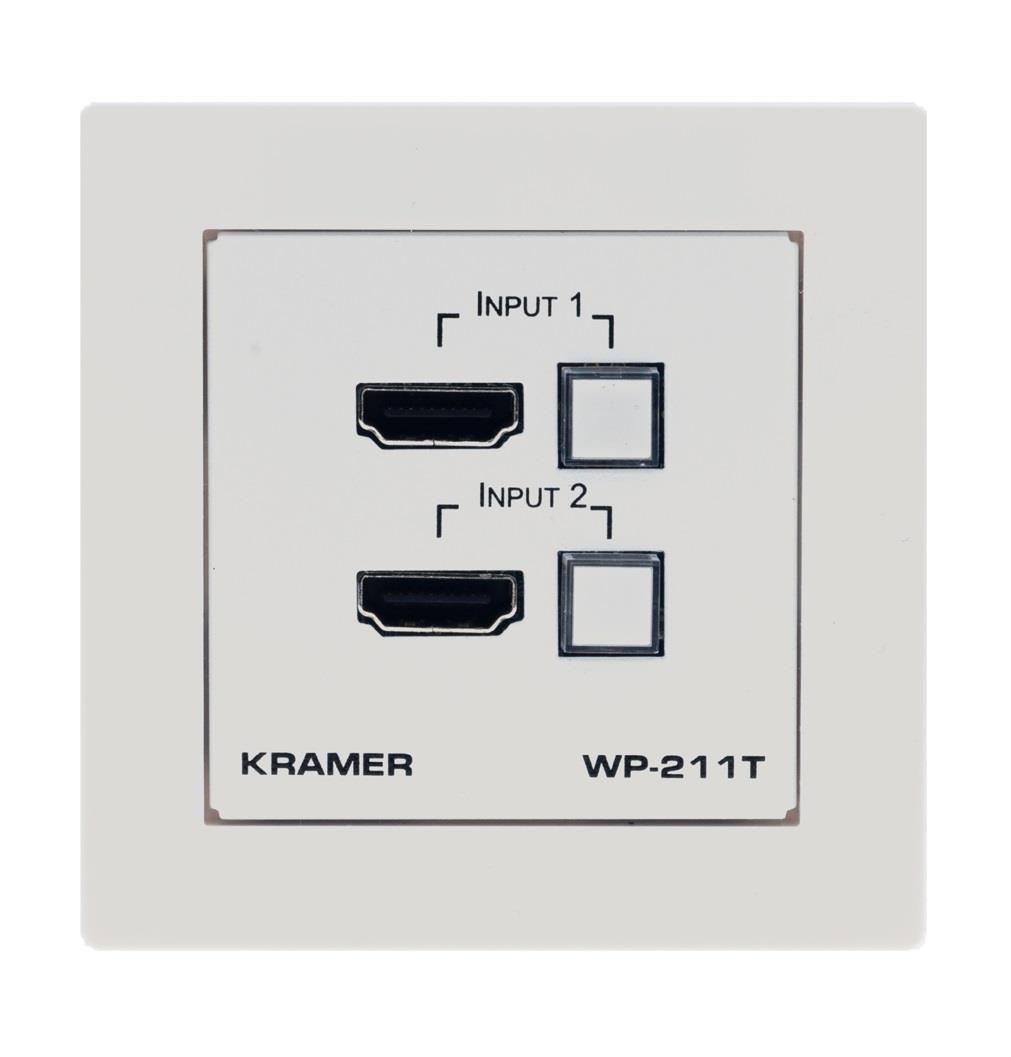

WP−211T is a high−performance PoE−powered wall−plate automatic switcher of 4K HDMI video signals, transmitted over long−reach HDBaseT extension link. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

Key Features:

  • Plug & Play Auto Switcher — Wall or podium mountable switcher, easily accessible for plugging user device to any of its HDMI input connections, it auto–plays switched source signal on connected display according to user–configured preferences.
  • Automatic Input Selection — Plug & play auto switching based on last connected input or manual selection.
  • High Performance Switcher Transmitter — Professional HDBaseT Switcher transmitter for providing long–reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market–available HDBaseT–compliant extension product.
  • HDMI Signal Switching — HDMI 2.0 and HDCP 2.2 compliant, it supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D.
  • Multi–channel Audio Switching — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, locking and pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Reliable PoE (Power over Ethernet) Powering — Auto–senses the extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
  • Easy Installation — Compactly fits into standard US, EU and UK 1–gang in–wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall–plate installation is fast and cost–effective via a single twisted pair cable, providing both video signal and power (PoE) connections.

Applications:

  • Classrooms
  • Huddle rooms
  • Training rooms


General

Extender type
Transmitter (Tx)
Technology
HDBaseT 1.0 Class B
Range (Max)
70 m At 1080p @60Hz, 40m at 4K 60Hz (4:2:0)

Video specification

Max supported resolution
3840x2160 8.91Gbps (2.97Gbps per graphic channel)
Refresh rate
60 Hz
Chroma subsampling (4K)
4:2:0
Scaler
Ei

Connections

Video in
HDMI x2
Video out

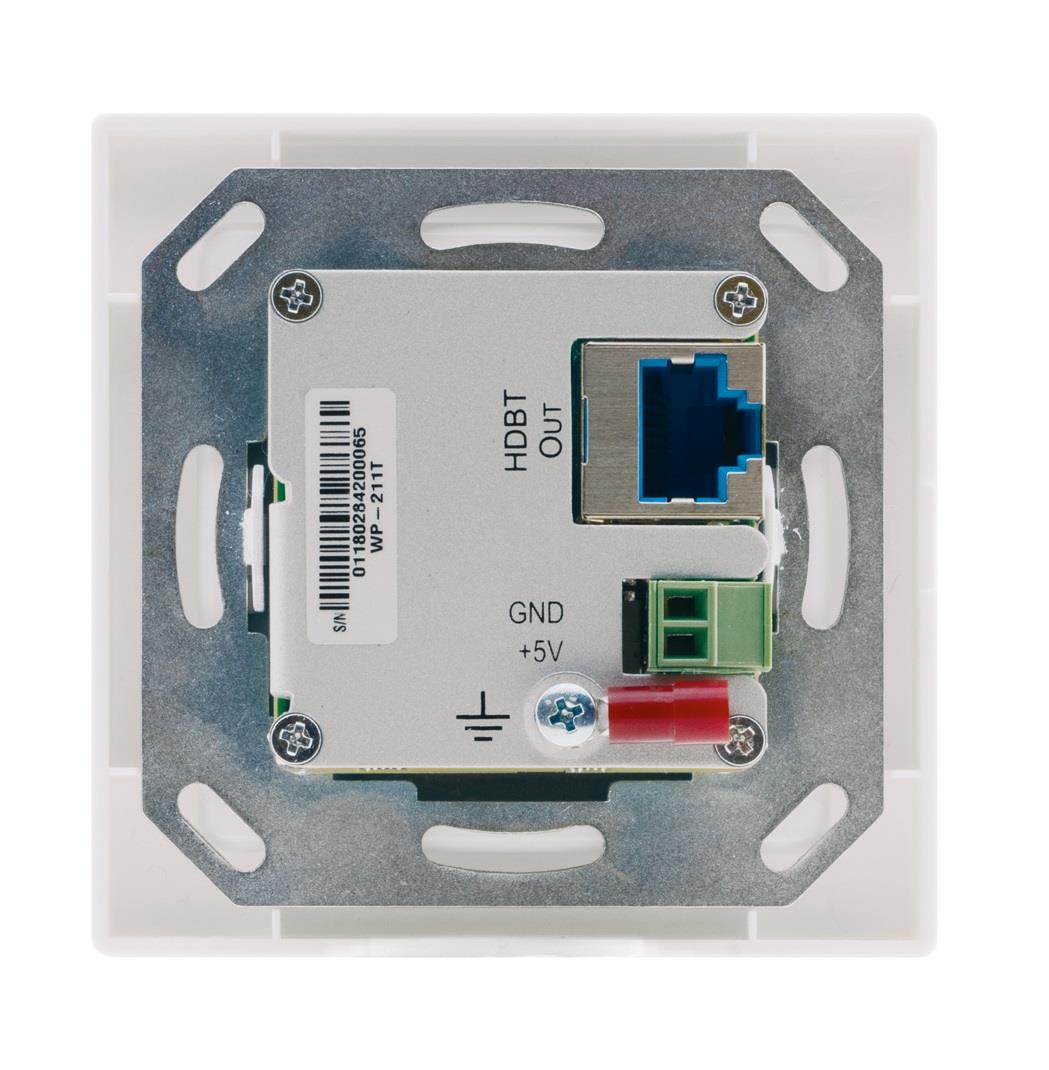

HDBaseT (RJ-45)
Control
Auto-switching, Front buttons
USB passthrough
Ei

Energy

Power Supply
PoE or 5V DC External Pos, Consumption: 780mA, PoE Consumption: 9W

Mitat ja Paino

Width
80 mm
Depth
38 mm
Height
80 mm
Net weight
0,2 kg

Additional information

Mounting
Wall
Included Accessories
1 Power adapter, 1 power cord, 1 EU white frame, 1 UK white frame, 1 EU/UK white faceplate
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
232 x 136 x 100 mm
Paketin paino
645 g
