VP−428H2 is an HDBaseT 4K transmitter/scaler with HDMI, DP and VGA inputs. VP−428H2 supports HDBaseT tunneling of Ethernet, bidirectional RS−232 and IR signals, as well as PoE to provide power to the HDBaseT receiver. It receives the selected AV signal, up−scales, down scales or bypasses the video, according to the settings selected by the user, and converts it for sending via HDBaseT, together with the tunneled data and PoE.

Key Features:
· PixPerfect™ Scaling Technology - Kramer’s precision pixel mapping and high-quality scaling technology.
· HDMI 2.0 Compliant.
· HDCP 2.2 Compliant.
· HDBaseT Certified.
· System Range - For the HDBaseT output, extended reach of up to 100m using Kramer recommended cables.
· Provides Power (PoE) on HDBaseT Output to Compatible Devices.
· Max. Resolutions - Input: 4K@60Hz (4:4:4); Output: 4K@60Hz (4:2:0).
· Max. VGA Resolution - 1920 x 1200 @60Hz.
· Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness are set individually for each input.
· Constant Output Sync - No output disruption while switching between inputs when no video is detected.
· Audio - Unbalanced stereo and embedded audio.
· Auto Input Switching - Last connected & auto-scan, selectable.
· HDBaseT Tunneling - Supports full HDBaseT tunneling of Ethernet and RS-232 data.
· Non-Volatile Memory - Saves final settings.

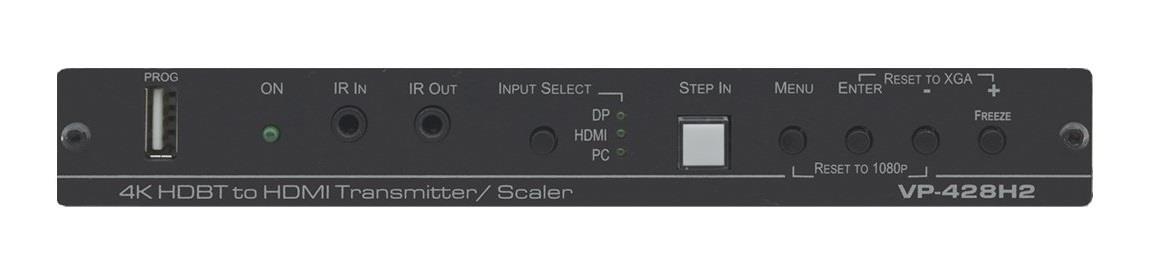

· Flexible Control Options - Front panel push buttons, RS-232, OSD (on-screen display) menu with front panel navigation buttons.



General

Application
Switch

Video specification

Resolution max out
3840x2160 10.2Gbps (3.4Gbps per graphic channel)
Refresh rate
60 Hz
Chroma subsampling (4K)
4:2:0 HDMI/DP Input signal supports 4:4:4

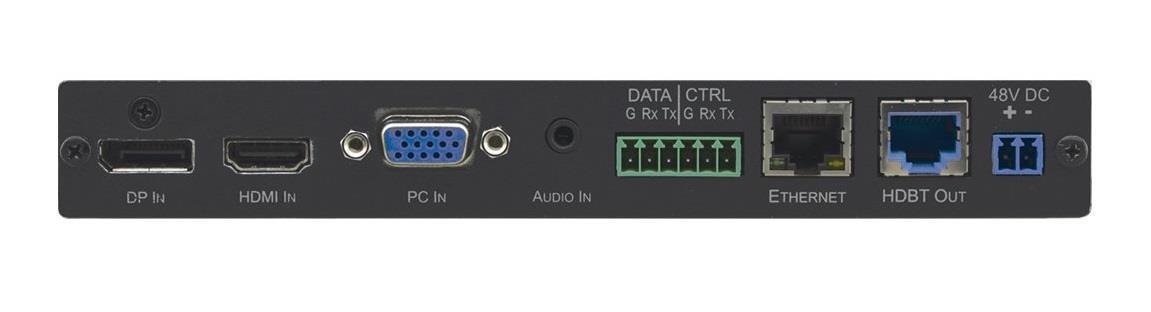

Connections

Video inputs
3
Video outputs
1
Video in
DisplayPort, HDMI
Video in
VGA Max 1920 x 1200 @60Hz
Video out
HDBaseT (RJ-45) Range up to 100m
Audio inputs
3,5mm tele

Functions

Scaler
Kyllä Upscales and downscales to / from all resolutions
USB passthrough
Ei
Control
Auto-switching, Front buttons
Control
IR cable connection x2 3,5mm tele
Control
On-screen display, RS-232

Energy

Power Supply
48V DC, 1,36A External Power Supply, Consumption: 48V DC, 410mA. Provides PoE to reciever

Mitat ja Paino

Width
223 mm
Depth
205 mm
Height
25 mm
Net weight
0,9 kg

Additional information

Installation
19" Rack, 1U With RK-T2B rack adapter (optional)
Installation
Freestanding/Shelf
Included Accessories
Power supply
Warranty
7 vuotta
