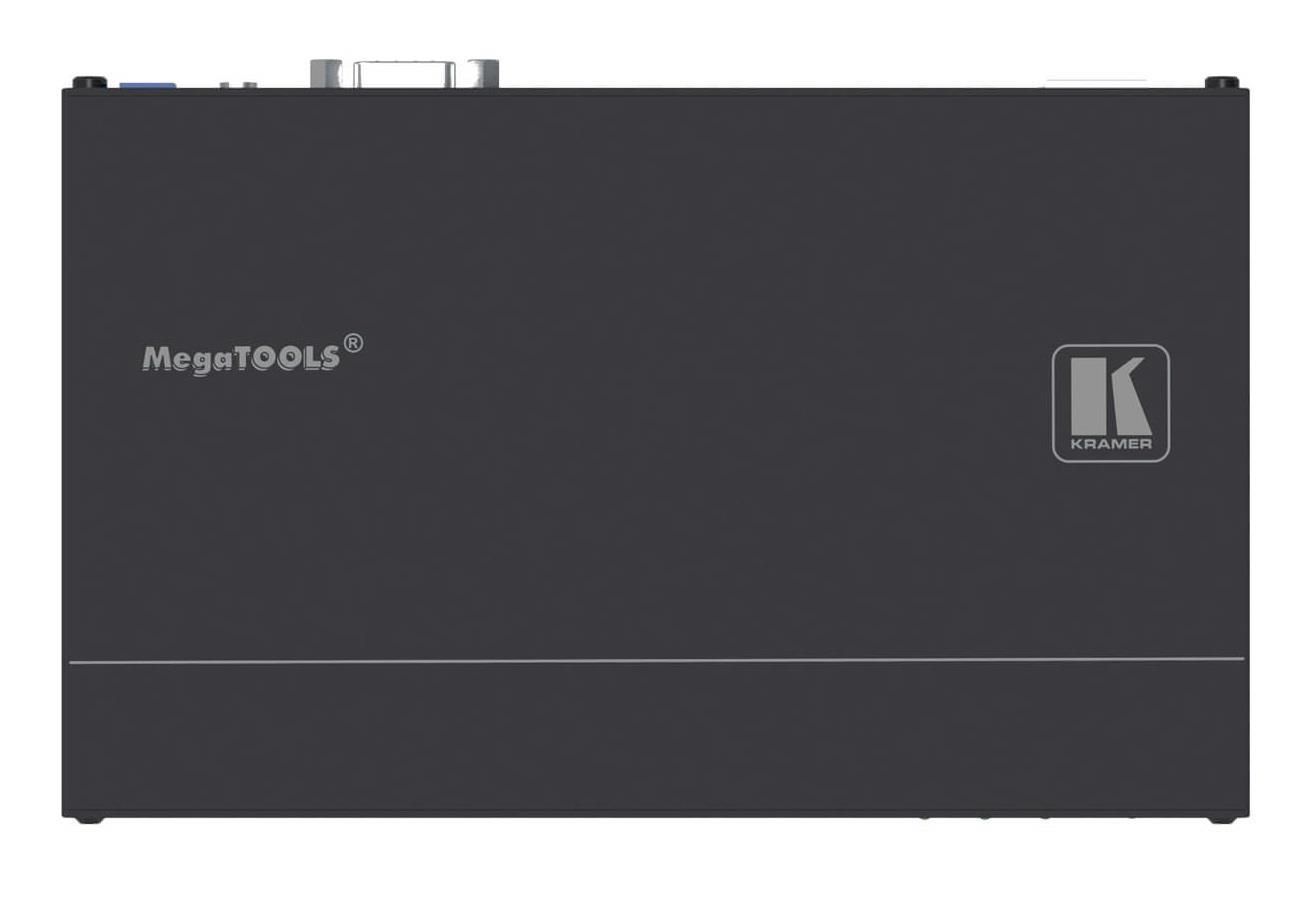

The TP−780T is a 4K60Hz (4:2:0) HDMI PoE transmitter with RS−232 & IR over long−reach HDBaseT. The TP−780T converts HDMI, RS−232, and IR signals into a twisted pair signal that it transmits to a TP−780R receiver. The TP−780R converts the twisted pair signal back into HDMI, bidirectional RS−232 and IR signals. The TP−780T and TP−780R support PoE (Power over Ethernet).
Key Features:
· Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
· Resolution Support - Up to 4K@60Hz (4:2:0).
· HDTV Compatible.
· HDCP Compliant.
· HDBaseT™ Technology.
· Power Over Ethernet - Allows a single HDBT LAN cable to provide both data and electrical power to compatible devices.
· TP-780T Provides Power to TP-780R.
· HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
· 3D Pass-Through.
· EDID PassThru - Passes EDID signals between the source and display.
· 2K & 4K Support.
· Bidirectional RS-232 & IR Interface - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
· System Range - 70m at 2K, 40m at 4K@60Hz (4:2:0) resolutions.
· Cable - For optimum range and performance using HDBaseT™, use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.

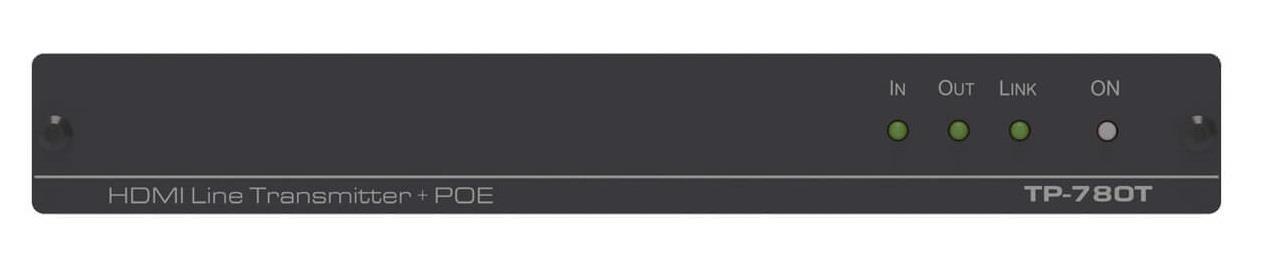

· Indicators - Status LEDs for input, output, link and power.
· Size - MegaTOOLS® - Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
Applications:
· Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios
· Rental and staging
General
- Extender type
- Transmitter (Tx)
- Technology
- HDBaseT 1.0 Class B
- Range (Max)
- 70 m At 1080p 60Hz, Up to 40m at 4K 60Hz (4:2:0)
Video specification
- Max supported resolution
- 3840x2160 10.2Gbps bandwidth (3.4Gbps per graphic channel)
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
- Scaler
- Ei
Connections
- Video in
- HDMI
- Video out
- HDBaseT (RJ-45)
- Control
- IR cable connection, RS-232
- USB passthrough
- Ei
Energy
- Power Supply
- 48V DC, 1.36A External Power Supply, Consumption: 48V DC, 240mA
Mitat ja Paino
- Width
- 187,5 mm
- Depth
- 115 mm
- Height
- 25,4 mm
- Net weight
- 0,4 kg
Additional information
- Mounting
- 19" Rack, 1U With rack adapter (optional)
- Mounting
- Freestanding/Shelf
- Included Accessories
- Power supply 48V/1.36A, bracket installation kit
- Warranty
- 7 vuotta
Paketin tiedot
- Paketin mitat
- 340 x 160 x 50 mm
- Paketin paino
- 923 g
