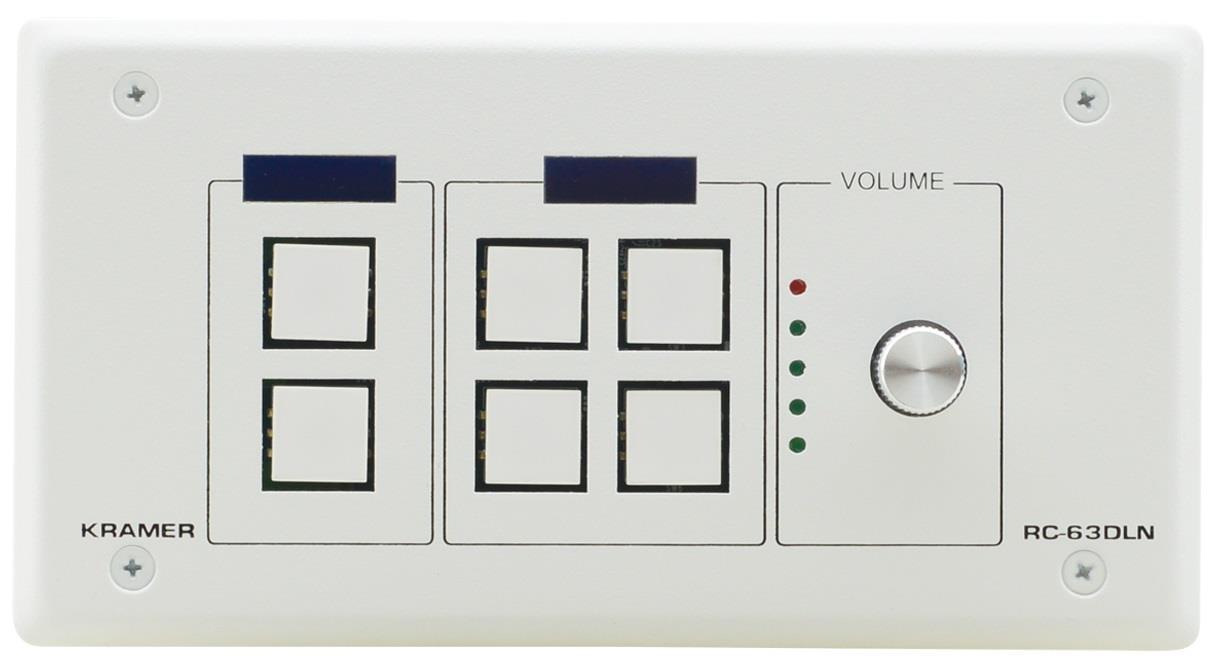

The RC−63DLN is a 6−button room controller with a digital volume knob for multimedia rooms. The unit can function either as a standalone controller or as part of a more complex K−NET room control system to control audio components, video components and other room facilities such as lights and screens.

RC–63DLN/EU(W)–80
EU–size RC–63DLN, White Design Frame, PSU + Power Cord, Label Set, Screwdriver

Key Features:
• 6 Programmable Buttons - Color, back−lit & label capable.
• Programmable Back-Lit LCD Group Labels - Displayed text can be configured.
• Digital Volume Control Knob.
• Macro Capability - Carries out multiple commands with a single press of a button.
• Command Banks - Each button offers multiple layers of functions for alternate behavior, toggle functionality, and more.
• Internal Clock - Schedules recurring tasks, defines system shutdown timer for economic operation, and more.
• USB Port - For upgrading firmware.
• Bidirectional RS-232 Port - Controls AV equipment such as projectors, LCD and PDP displays, power amplifiers, switchers and scalers.
• IR Output - Additional control port for AV equipment.
• IR Learning Function - Learns commands from IR remotes.
• 2 Relay Contact Closure Ports - Conveniently controls other room items related to the AV system such as raising and lowering drapes, the screen or the projector.
• 2 K-Net™ Connectors - Connects to other control panels or a central control processor.
• K-Net Control Channel - Provides power and control data to the wall plate controllers over a single cable.
• Note - Available in white or black.

Applications:
Ideal for multimedia classrooms or conference rooms.



General

Buttons
6 pcs.
Installation
Wall

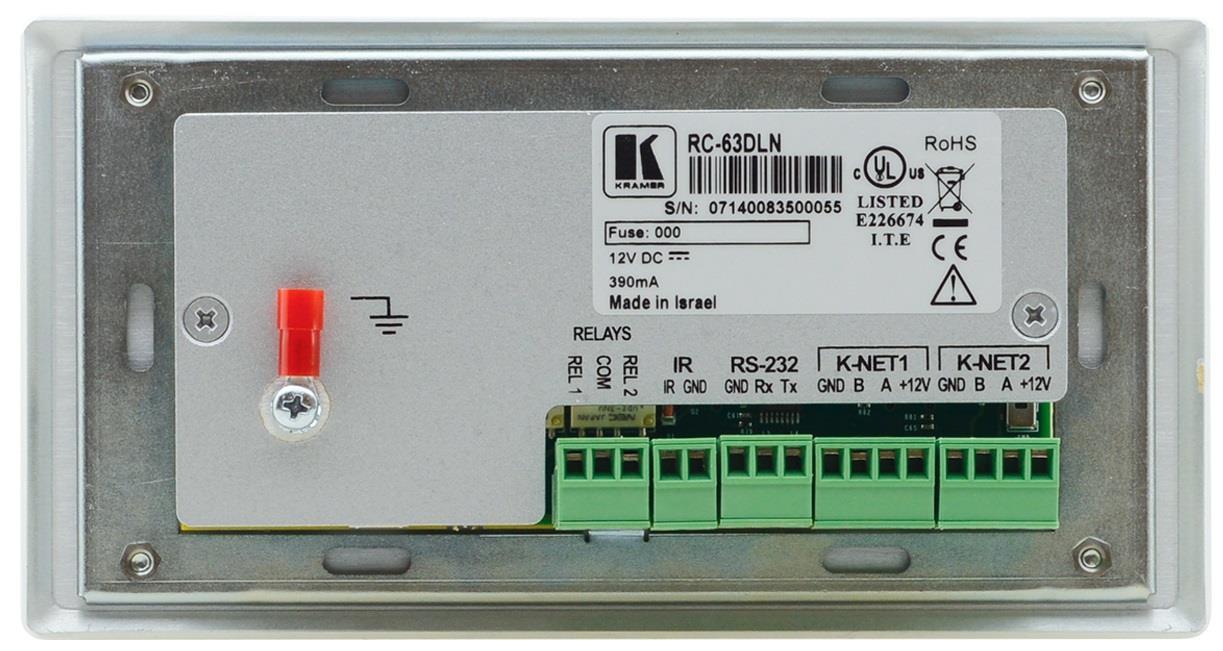

Connections

Control ports
IR cable connection
Control ports
K-NET x2
Control ports
Relay x2
Control ports
RS-232
Ethernet
Ei
WiFi
Ei

Energy

Power Supply
12V DC, 100mA power supply

Mitat ja Paino

Width
151 mm
Depth
23 mm
Height
80 mm
Net weight
0,1 kg

Additional information

Color
Valkoinen
Included Accessories
EU–size RC–63DLN, White Design Frame, Power Supply + Power Cord, Label Set, Screwdriver
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
235 x 135 x 100 mm
Paketin paino
690 g
