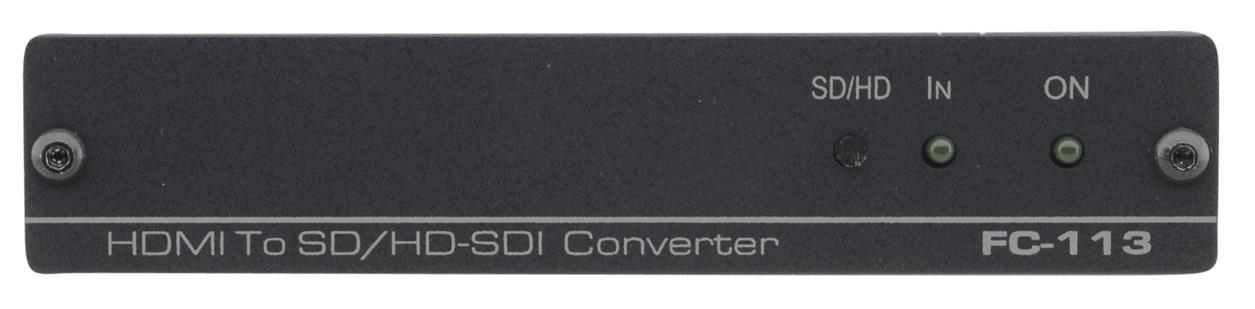

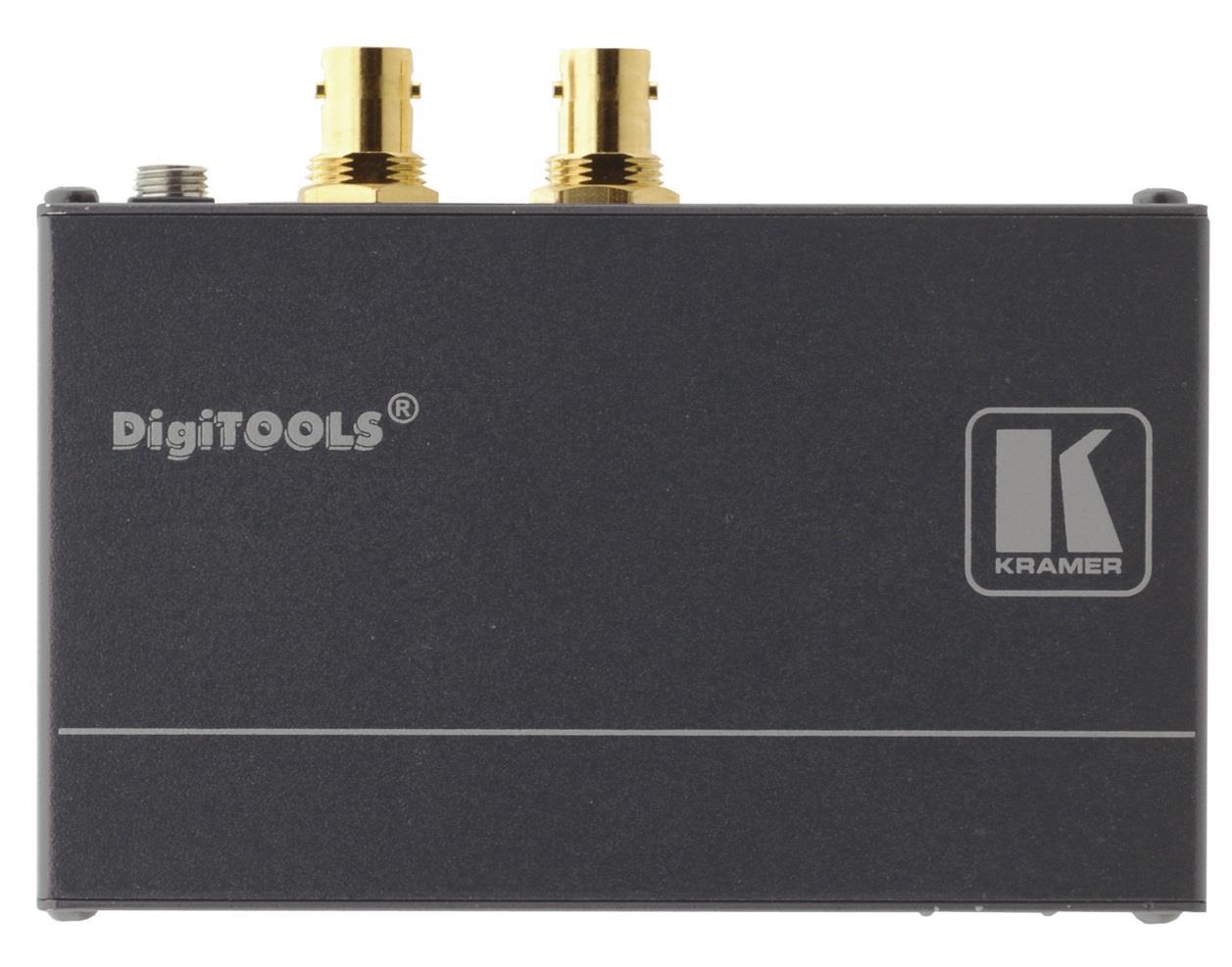

Kramer FC-113 is a high-performance format converter for HDMI signals. It converts an HDMI input signal to two identical SDI video signals with embedded audio. The FC-113-MD is certified for medical applications.

  • Max. Data Rate - 3Gbps.
  • HDTV Compatible.
  • Multi-Standard Operation - SDI (SMPTE 259M), HD‑SDI (SMPTE 292M), and 3G HD−SDI (SMPTE 424M).
  • Certified for Medical Applications - According to IEC 60601−1−2 (Electromagnetic Compatibility), (FC−113−MD).
  • No Frame Rate or Resolution Conversion.
  • Active Input™ LED Reporting - Green indicates standard definition (SDI), blue indicates a high−definition (HD−SDI) input signal.
  • Size - Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter. - compatible with RK-3T 19-inch rack adapter for mounting 3 Kramer TOOLS™ into a 1U rack space.


General

Application
Converter

Connections

Video inputs
1
Video outputs
1 Mirrored outputs
Video in
HDMI
Video out
3G-SDI

Functions

Scaler
Ei
USB passthrough
Ei

Energy

Power Supply
5V DC, 470mA External Power Supply

Mitat ja Paino

Width
120 mm
Depth
71,5 mm
Height
24,4 mm
Net weight
0,2 kg

Additional information

Installation
19" Rack, 1U With RK-3T optional rack adapter
Installation
Freestanding/Shelf
Included Accessories
Power supply
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
200 x 100 x 100 mm
Paketin paino
500 g
