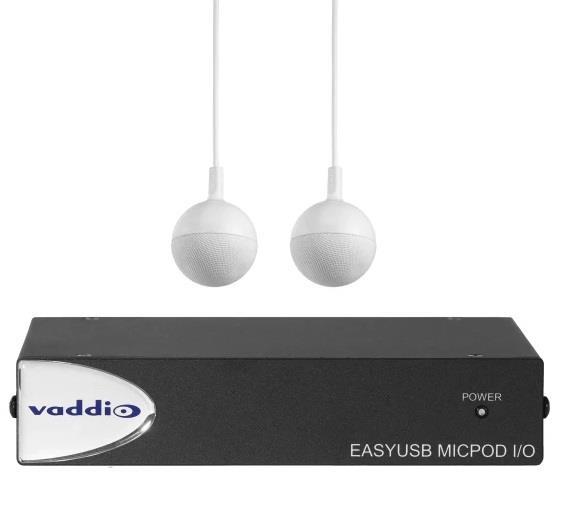

Includes the EasyUSB MicPOD I/O interface and two white CeilingMICs.
The EasyUSB MicPOD I/O interface is based on Vaddio’s™ SmartMIC technology, a simple and less expensive approach to adding live audio conferencing to room designs. As an interface between the CeilingMIC microphones and any professional audio mixer, internal DSP and echo cancellation can now be integrated into any manufacturer’s audio mixing system.

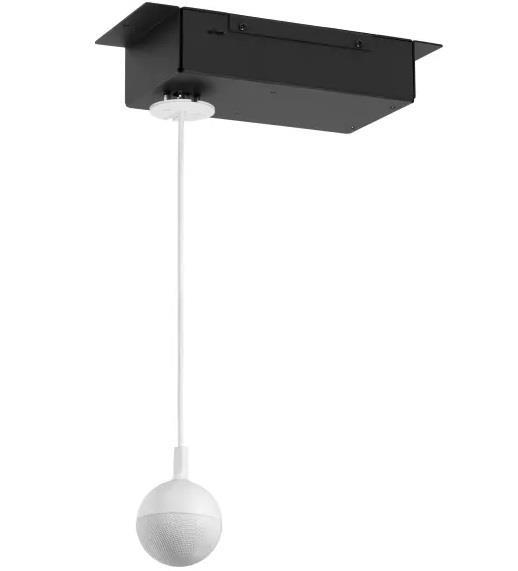

Each CeilingMIC is equipped with an array of three electric condenser microphones positioned to form a 360-degree pickup pattern. This unique technology is based on the microphone’s ability to actively manage the room’s live audio for gain, gating and echo cancellation. Once detected, the microphone will adjust and mix down to a single output. Because the intelligence is inside the microphone, any mixer can now be used in a live collaboration application for audio conferencing and achieve outstanding results.
The EasyUSB MicPOD I/O interface device allows the connection of up to four CeilingMICs and because each input is effectively running three microphones on three different channels, users can technically run 12 microphones all with independent echo cancellation and internal DSP. For installations requiring more than 12 CeilingMICs, just add an additional EasyUSB MicPOD I/O for 12 more channels.
In the box:
EasyUSB MicPOD I/O
18V power supply with AC cord set(s)
2x CeilingMIC microphones (white)
2x silicone split strain relief boots (white)
2x 0.9m Cat-5 cable (white)
2x CeilingMIC interface boxes
2x cable clamp grommets
4x ceiling trim ring plates (black or white) with mounting screws
2x ceiling tile braces
4x rubber feet for bottom of EasyUSB MicPOD I/O unit if not rack-mounted
5x 3-position phoenix-style connector
Quick-Start Guide
CeilingMIC Installation Guide
General
- Microphone application
- Ceiling
Audio specifications
- Microphone type
- Condensor
- Directivity
- Omnidirectional
- Audio pickup range
- 4,5 m Per microphone
- Frequency range Min
- 100 Hz
- Frequency range Max
- 16 000 Hz
- Dynamic range
- 90 dB
Connections
- Audio outputs
- EasyMic Port (RJ-45)
- Cable lenght
- 0,9 m Max cable lenghts: Drop cable: 4.6m, Interface box to host device: 30m
Energy
- Power Supply
- 18V DC, 2.75A External Power supply (MicPOD I/O)
Mitat ja Paino
- Width
- 6,3 mm
- Depth
- 6,3 mm
- Height
- 6,3 mm
- Net weight
- 0,9 kg
Additional information
- Color
- Valkoinen
- Included Accessories
- See product text above
- Warranty
- 2 vuotta
Paketin tiedot
- Paketin mitat
- 660 x 380 x 380 mm
- Paketin paino
- 11,00 kg
