Professional audio USB interface for connecting existing audio equipment to USB-Based PC applications.

Key Features:

  • Balanced Line Input: Mono line level (+4dB) input on 3-Pin Euro terminal mapped to the USB record channel
  • Unbalanced Line Input: Mono consumer level input (-10dB) on RCA mapped to the USB record channel
  • Balanced Line Output: Mono line level output on 3-pin Euro mapped to the USB playback channel
  • Unbalanced Line Output: Mono consumer level output on RCA mapped to the USB playback channel
  • USB Audio: UAC compliant Speakerphone with configurable terminal type for use with PC-based soft client

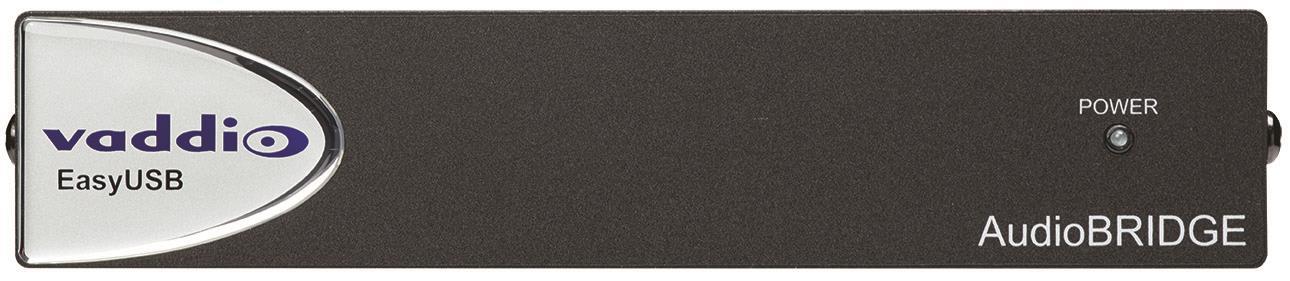

The EasyUSB AudioBRIDGE for integrating professional audio equipment into USB-based PC applications – Unified Communications, lecture capture, recording or any other application that requires professional audio. Existing meeting room audio equipment can now be used with any UC soft client – Microsoft Lync, Cisco Jabber, Google+, etc.

Equipped with both balanced and unbalanced audio inputs/outputs for maximum flexibility, the AudioBRIDGE easily integrates with external audio mixers, wireless microphones, amplifiers, powered loudspeakers – any audio I/O devices that require USB integration.

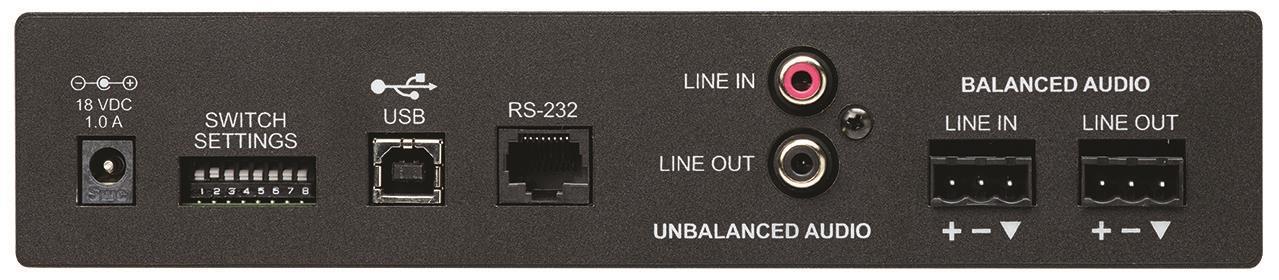

Professional audio equipment connects to the AV Bridge with balanced line level inputs/outputs on a 3-pin Euro Terminal block. Unbalanced audio inputs/outputs are supported with RCA connectors.

This Package Includes:

  • EasyUSB AudioBRIDGE Interface
  • Quick-Start Guide
  • 18V, 1.0A Power Supply
  • 2x 3-position phoenix-style connectors
  • 4x rubber feet for bottom of EasyUSB MicPOD I/O unit if not rack-mounted
  • 1.83m USB 2.0 cable, type A to B
  • EZ Camera RS-232 Control Adapter


Audio specification

DSP
Ei
Distortion THD
0,02 %
Frequency range Min
20 Hz
Frequency range Max
20 000 Hz

Connections

Input channels
3
Output channels
3
Audio inputs
Euroblock line x1 Mono Balanced
Audio inputs
RCA x1 Mono Unbalanced
Audio inputs
USB-B 2.0
Audio outputs
Euroblock line x1 Mono Balanced
Audio outputs
RCA x1 Mono Unbalanced
Audio outputs
USB-B 2.0
Ethernet
Ei
Control
DIP-Switch for audio processing
Control
RS-232
Control
USB-B USB HID Controls for Volume
Dante
Ei
WiFi
Ei

Energy

Power Supply
12V DC, 1A External Power Supply
Consumption Max
18 W

Mitat ja Paino

Width
212,9 mm
Depth
152,4 mm
Height
43,7 mm
Net weight
0,64 kg

Additional information

Application
19" Rack, 1U With optional rack adapter
Included Accessories
See product text above
Warranty
3 vuotta

Paketin tiedot

Paketin mitat
457 x 279 x 127 mm
Paketin paino
1,56 kg

Tarvikkeet

Artikkelinumero 2380157
