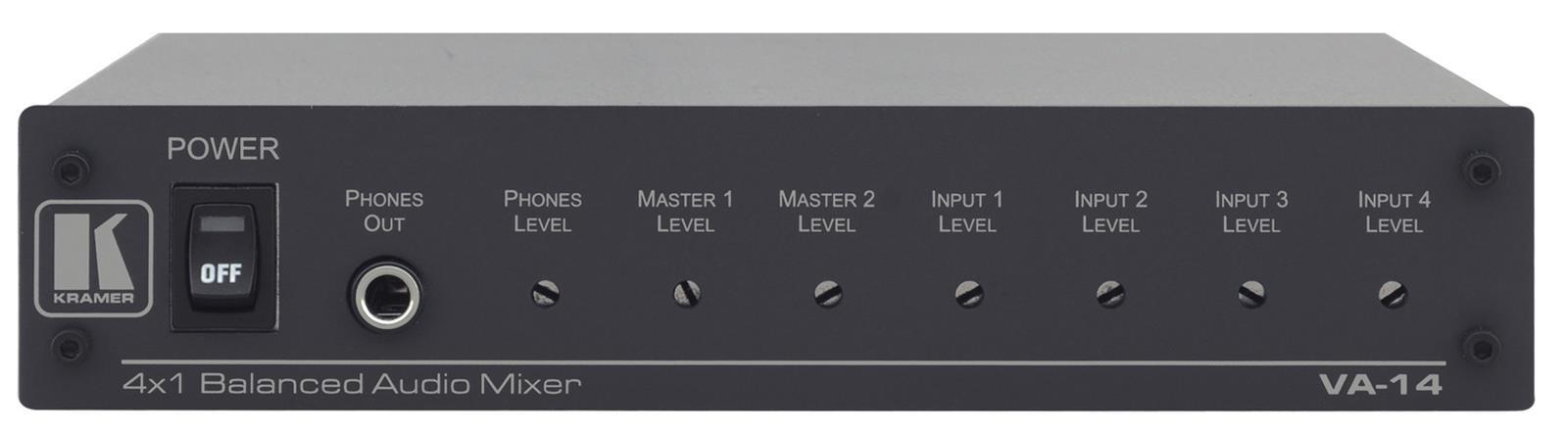

The VA-14 is a high-performance 4-channel mixer for balanced mono audio signals on XLR connectors. The unit inputs four channels of any combination of balanced mic or line level audio signals and outputs two mixed balanced audio and one headphone signal.

Key Features:

  • S/N Ratio — Mic in, phones out: 45.3dB; line in, phones out: 83.3dB; line in, line out: 84.3dB; mic in, line out: 64dB.
  • Level (Gain) Control — Individual for each input & master and headphone output.
  • Phantom Power — 48V DC on each input (individually selectable).
  • Desktop Size — Compact size. 2 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.

Applications:

  • Live stage and studio audio mixing.
  • Presentation systems and press conferences.
  • Post production in video/audio studios.


Audio specification

DSP
Ei
Distortion THD
0,007 % line in, line out
Signal-to-noise ratio
84,3 dB Line in, line out

Connections

Input channels
4
Output channels
2

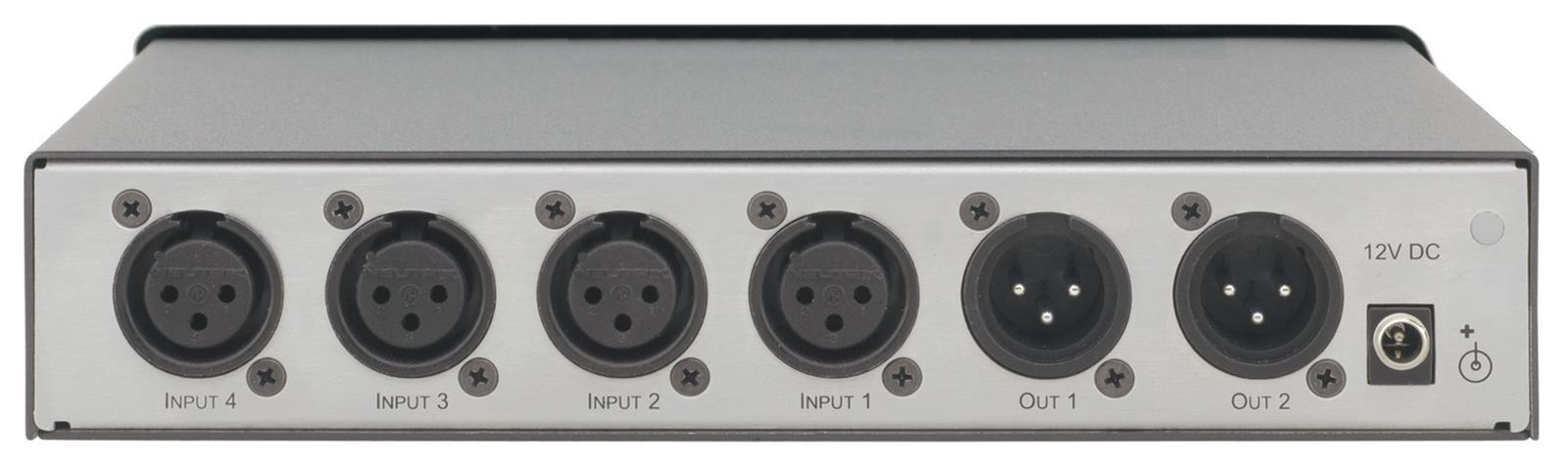

Audio inputs
XLR x4 Mono Balanced Mic/Line with 48V DC Phantom Power
Audio outputs
6,3mm tele Phones Out
Audio outputs
XLR x2 Mono Balanced Mic/Line
Ethernet
Ei
Control
DIP-Switch underside slide switches: inputs: line/mic and +48V phantom ON/OFF
Control
Front buttons
Dante
Ei
WiFi
Ei

Energy

Power Supply
12V DC, 250mA External Power Supply

Mitat ja Paino

Width
214,6 mm
Depth
163 mm
Height
43,6 mm
Net weight
0,7 kg

Additional information

Application
19" Rack, 1U With optional RK–1 rack adapter
Application
Freestanding/Shelf
Included Accessories
Power supply
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
348 x 76 x 215 mm
Paketin paino
1,18 kg
