58:9 Space-Fitting Wide Screen

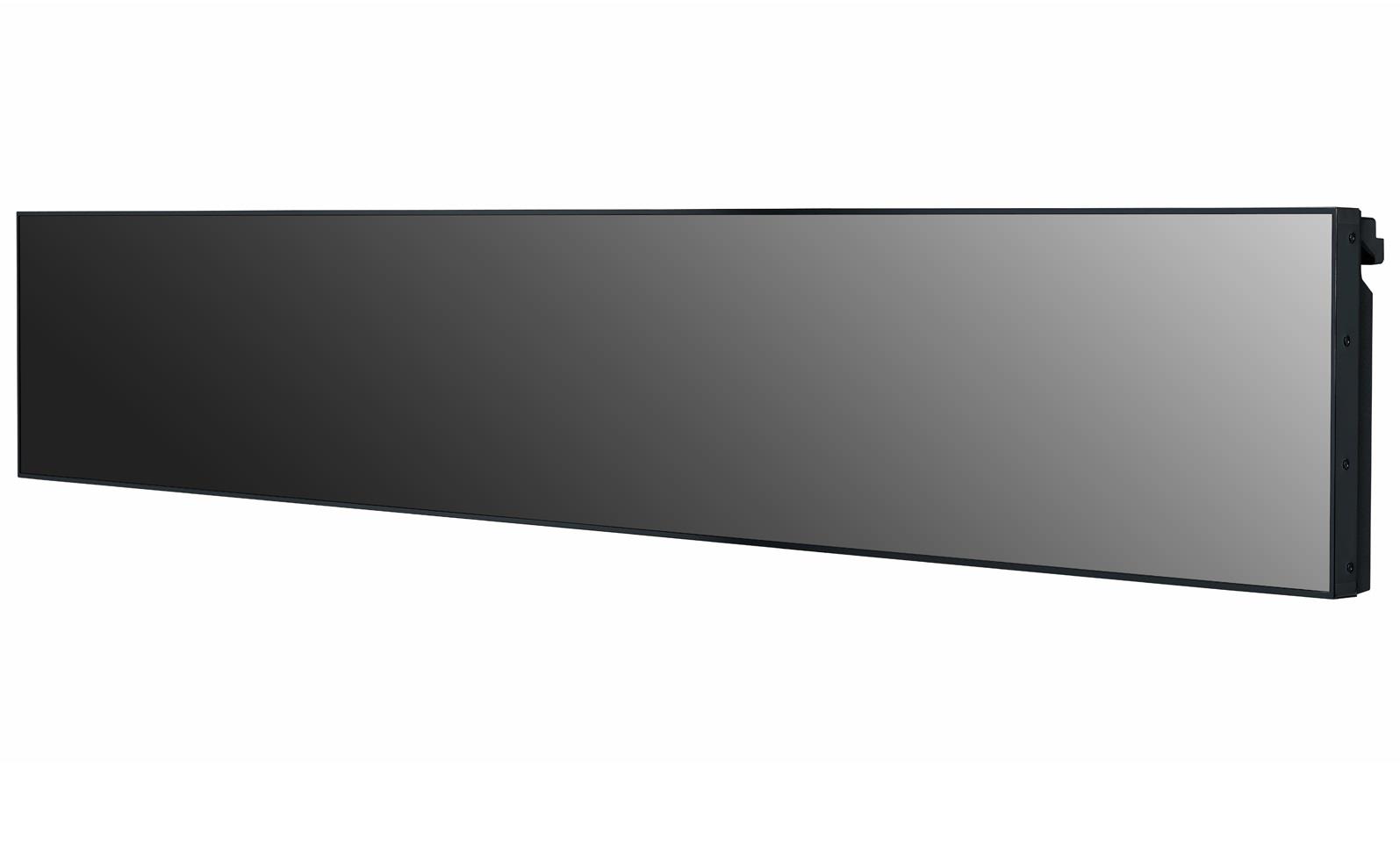

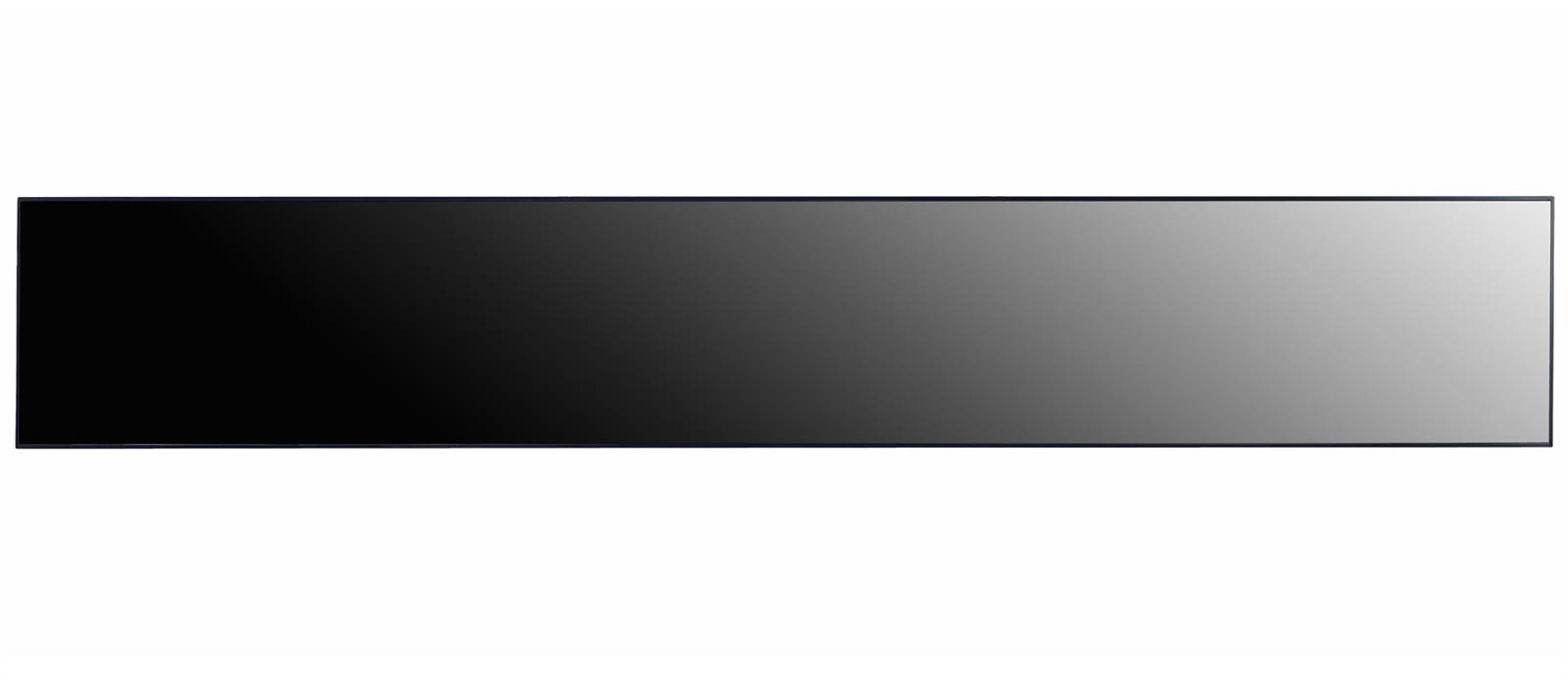

The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.

Key Features:

  • Brightness(Typ.) : 500 cd/m²
  • Aspect Ratio: 58:9
  • Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
  • Depth: 81.7mm
  • Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR

58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.

*Video content only. (Images not supported)

Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

User-Friendly UX
The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD can also be adjusted accordingly.

LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

Real-Time Monitoring with LG ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

*LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.



Videowall
Ei
Outdoor use
Ei
TV Tuner
Ei

Näyttö

Operating Hours
24/7
Image diagonal
86 "
Resolution
3840x600
Brightness
500 Nits
Portrait
Kyllä

Functions

Protective Glass
Ei
Built-in speaker
Ei
Mediaplayer
Integrated WebOS 4.0
Mediaplayer
OPS-Slot Piggyback with optional LG KT-OPSF OPS-Kit
Mediaplayer
USB mediaplayer

Communication

Ethernet
Kyllä
Wi-Fi
Built-in
Wireless image sharing
Ei

Energy

Power Supply
AC 100 - 240 V ~, 50 / 60 Hz, built in power supply
Consumption Stand-by
0,5 W
Consumption Typical
220 W
Consumption Max
240 W

Mitat ja Paino

VESA mount interface (mm)
600x200
Width
2 158,3 mm
Height
348,5 mm
Depth
81,7 mm
Net weight
20,5 kg

Additioinal information

Included Accessories
Remote Controller, Power Cord, DP Cable, RS-232C Cable,
Warranty
3 vuotta Swap

Paketin tiedot

Paketin mitat
2 290 x 599 x 228 mm
Paketin paino
38,20 kg
