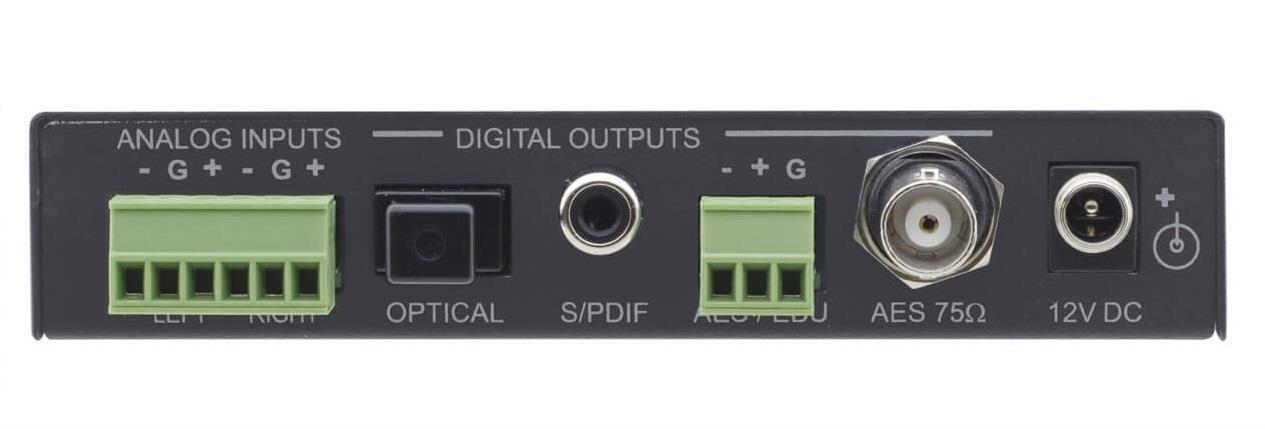

The 6420N is a high-performance format converter for balanced audio signals. The unit converts two channels of balanced audio signals to AES/EBU, AES-3id, S/PDIF and TOSLINK® optical digital outputs simultaneously.
- Standards — AES/EBU, AES–3id, S/PDIF, TOSLINK® optical.

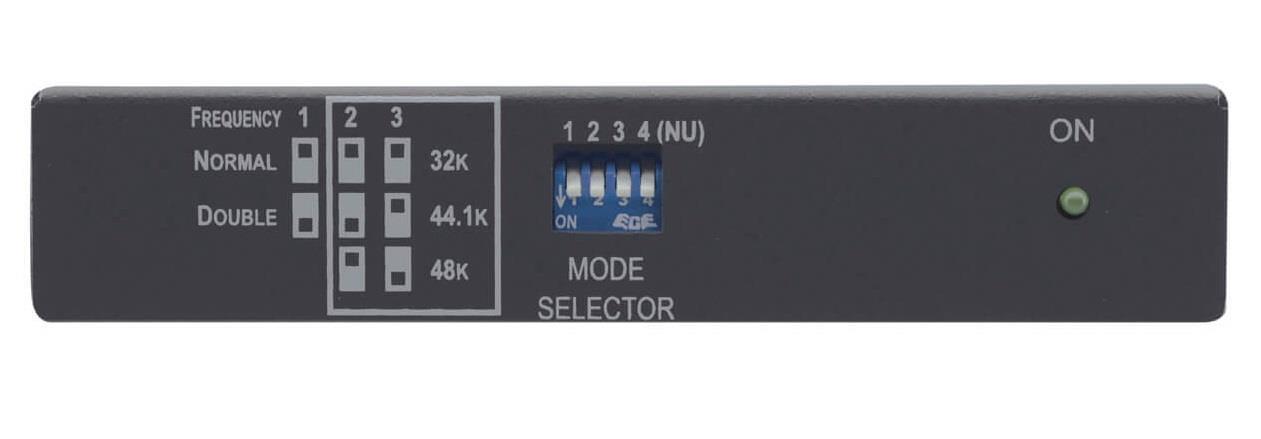

- Sampling — 32, 44.1, 48, & 96kHz (selectable).
- Professional or Consumer Bit Rate Selection.
- Left & Right Gain Conversion Control — 0dB, — 12dB, — 16dB, — 20dB or — 24dB.
- Compact DigiTOOLS® — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
APPLICATIONS
- Audio broadcast & production studios
- Non–linear editing studios
- Multimedia & presentation format conversion
- Diagnostics of audio equipment during field operation
General
- Color
- Musta
Mitat ja Paino
- Width
- 120 mm
- Depth
- 71,5 mm
- Height
- 24,4 mm
- Net weight
- 0,1 kg
Lisäinformaatio
- Included Accessories
- Power supply, mounting bracket
- Warranty
- 7 vuotta
Paketin tiedot
- Paketin mitat
- 232 x 120 x 89 mm
- Paketin paino
- 585 g
