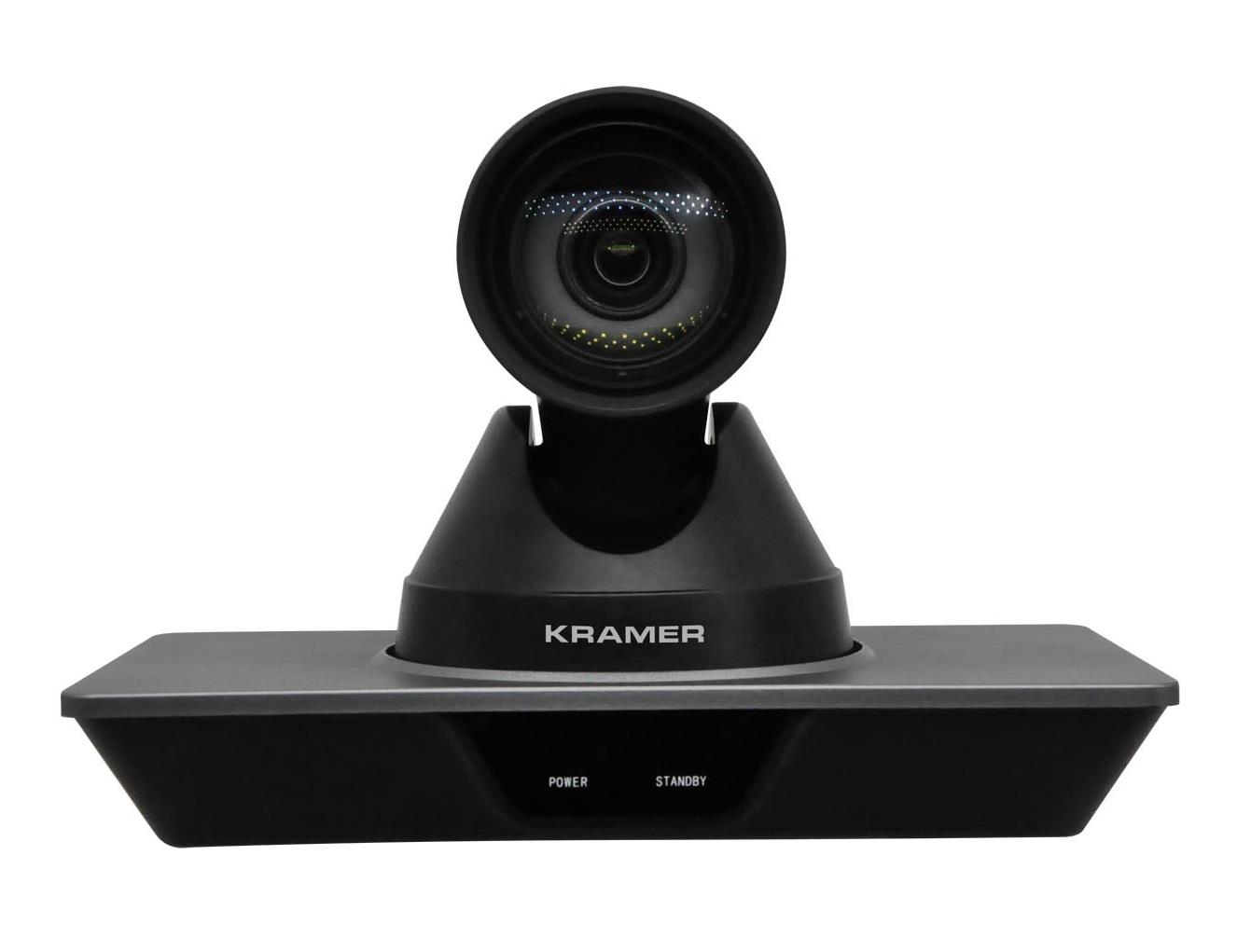

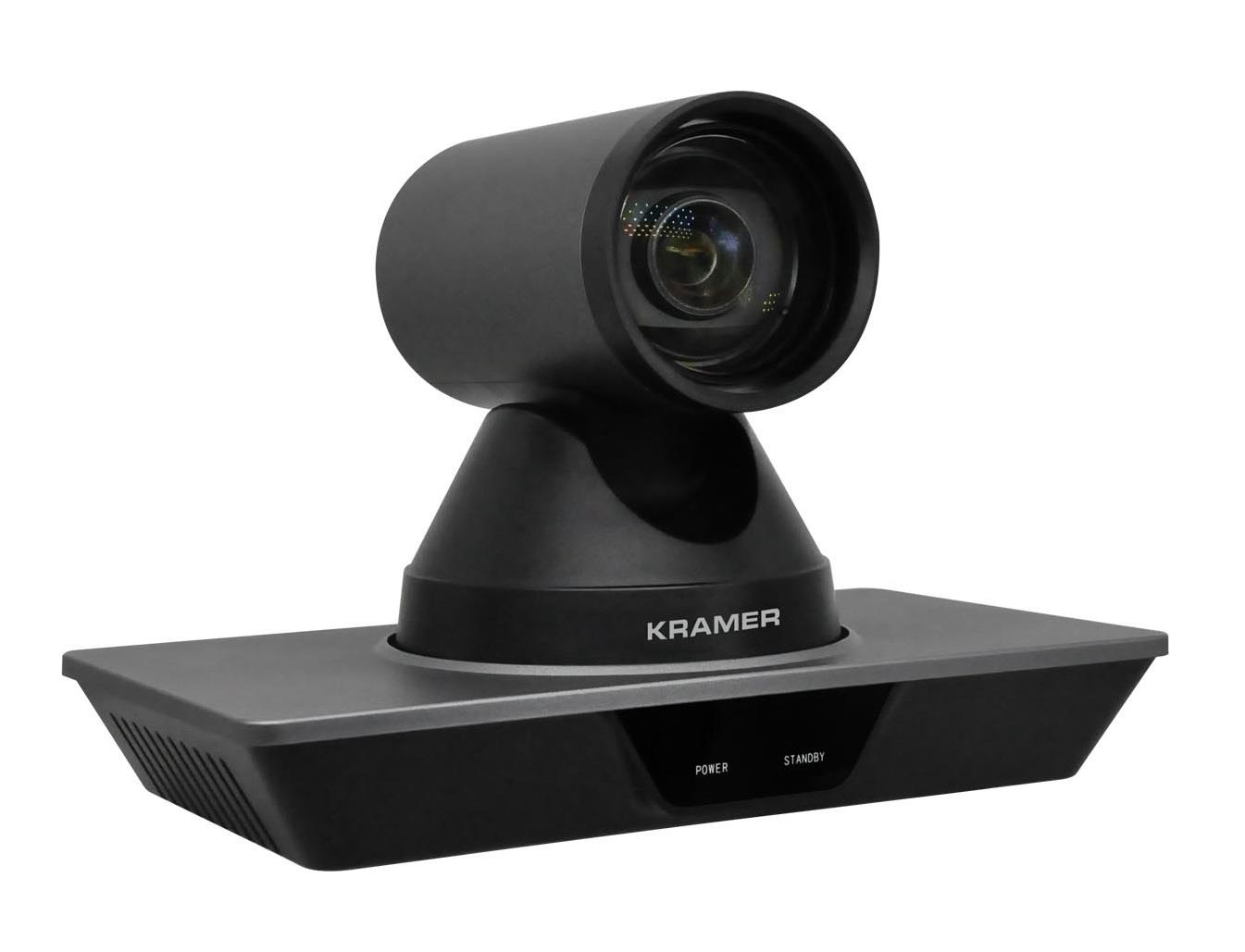

Ultra−HD camera for premium−clarity video in large spaces. Put every meeting in sharp focus with crystal−clear, ultra−high−definition video capture and advanced, yet easy, control.4K resolution, high−power optical and digital zooms, smooth PTZ operation and multiple outputs, the K−Cam4K takes video conferencing to a new level.
Superior video at any distance
- Wide–angle image capture with advanced PTZ control enables dynamic coverage of medium and large spaces, such as boardrooms, classrooms, and auditoriums
- Best–in–class image clarity and highly accurate close–ups, with 4K60 resolution and 12x optical zoom plus 16x digital zoom
- Enhanced video quality, even in low–light conditions, with industry–leading CMOS image sensing with 2D and 3D digital noise reduction (DNR)
Easy configuration and control
- All operation, including pan, tile and zoom, are easily controlled from any Kramer control interface and/or the compact remote control
- Multiple ports including RS–232, RJ–45, HDMI 1.4, and USB 3.0 deliver 4K video at up to 60 fps
- Works seamlessly with virtually all meeting applications
- Fast and simple setting of camera angle, with a choice of 255 pre–set camera positions
Applications:
- Enterprise meeting rooms
- Educational spaces
- Any application where high–quality video conferencing is required
General
- Camera type
- PTZ camera
- Color
- Musta
Image specification
- Max Resolution (Out)
- 1920x1080 Original
- Max Resolution (Out)
- 3840x2160 Compressed
- Framerate
- 30 FPS
- Optical zoom
- 12 x
- Digital zoom
- 16 x
- Field of view (horizontal)
- 71 °
- Signal-to-noise ratio
- 55 dB
- Min. illumination
- 0,5 Lux F1.8, AGC ON
Functions
- Programmable presets
- Kyllä 255
- Ceiling installation/Flip image
- Kyllä Horizontal & Vertical Flip Support
- Pan movement +/-
- 170 °
- Tilt movement up
- 30 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- Ei
Audio specification
- Built-in microphone
- Ei
- External microphone
- Kyllä via 3,5mm tele
- Built-in speaker
- Ei
- External speaker
- Ei
Connections
- Video out
- 3G-SDI, HDMI
- Video out
- IP stream (RJ-45) TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast with H.264/H.265/MJPEG Compression. Dual streams. First stream up to 3840x2160, Second srream Up to 720x480
- Video out
- USB-B
- USB standard
- 3.0
- Audio inputs
- 3,5mm tele
Energy
- Power Supply
- 12V DC, 2A max
- Consumption Max
- 12 W
Mitat ja Paino
- Width
- 235 mm
- Depth
- 145 mm
- Height
- 170 mm
- Net weight
- 1,42 kg
Additional information
- Included Accessories
- Power adapter and cord, IR remote control transmitter, 1 USB 3.0 cable, wall bracket kit, lens cover
- Warranty
- 3 vuotta
Paketin tiedot
- Paketin mitat
- 230 x 230 x 250 mm
- Paketin paino
- 3,33 kg
